Overview

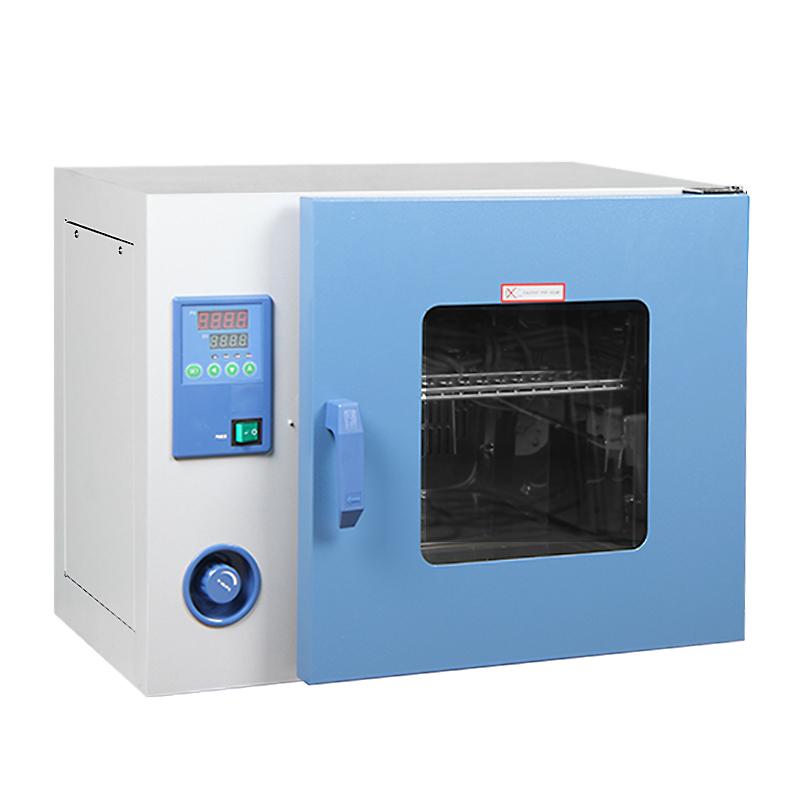

YIHENG DHG-9053A Benchtop blast drying oven is a laboratory Benchtop blast drying oven commonly used in mines, laboratories and R & D institutions. The input Power is 1100W, Temperature range is 10~ 200 ℃, and high resolution of 0.1 ℃ is achieved. Good hot air circulation system ensures the uniformity of temperature in the working room.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the temperature uniformity in the working room.
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)
Principle
DHG-9053A Benchtop blast drying oven through the microcomputer P.I.D temperature controller precise temperature control, combined with the hot air circulation system by the high temperature fan and air duct composition, to ensure the uniform distribution of indoor temperature, drying, baking and other functions.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the power supply and set the required temperature and time parameters.
2. Start the equipment and the hot air circulation system starts to work.
3. Monitor the temperature display to ensure operation within the set range.
4. After use, turn off the device according to the procedures.
Notice
• Power supply voltage check before use meets AC 220V 50Hz requirements
• Make sure the equipment is placed in a smoothly ventilated place
• Pay attention to the high temperature surface during operation to avoid burns
• Regularly check the sealing strip and fan operation status
• When selecting an independent temperature limit alarm system, the upper temperature limit needs to be set correctly
• Disconnect the power supply when cleaning and wipe with a soft cloth
