Overview

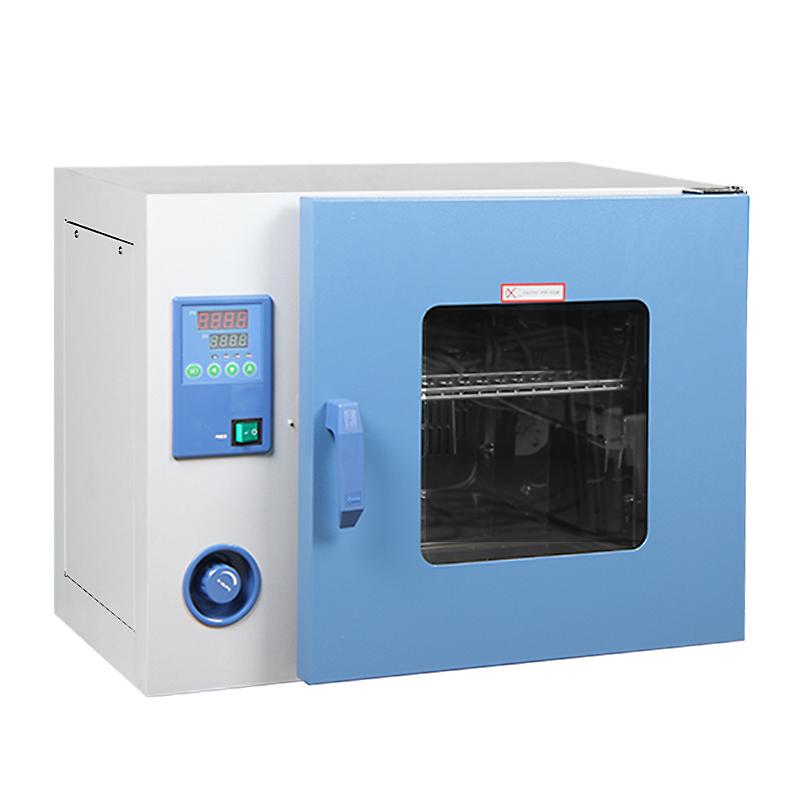

YIHENG DHG-9123A laboratory blast drying oven adopts a new synthetic silicon sealing strip to ensure long-term high temperature operation, and is equipped with an independent temperature limit alarm system to ensure experimental safety. It is an intelligent, effective and accurate laboratory equipment. The drying oven input Power is 2050W, Temperature resolution is 0.1 ℃, Temperature range RT + 10~ 200 ℃.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
3. The hot air circulation system consists of high temperature continuous operation fans and suitable air ducts to improve Temperature uniformity
4, the use of new synthetic silicon sealing strip, long-term high temperature operation, long service life, easy to replace
5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
6. Independent temperature limit alarm system, automatic interruption of over-limit temperature to ensure experimental safety (optional)
7. Can be equipped with a printer or RS485 interface, connect to a printer or computer to record temperature parameter changes (optional)
Principle
The heating system is precisely controlled by the microcomputer P.I.D temperature controller, and the hot air circulation system makes the temperature in the working room evenly distributed to realize the functions of drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the AC 220V 50Hz power supply
2. Set the required temperature and time parameters through the temperature control panel
3. Adjust the air intake and exhaust volume in the box as needed
4. Start the device and start working
5. Monitor the running status and use optional functions to record data if necessary
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• Temperature range is between RT + 10~ 200 ℃
• Regularly check the status of the sealing strip and replace it in time
• Independent temperature limit alarm system will automatically interrupt operation when overheating
• Optional functions require additional corresponding accessories
• Net weight of equipment 68kg, pay attention to safety when handling
