Overview

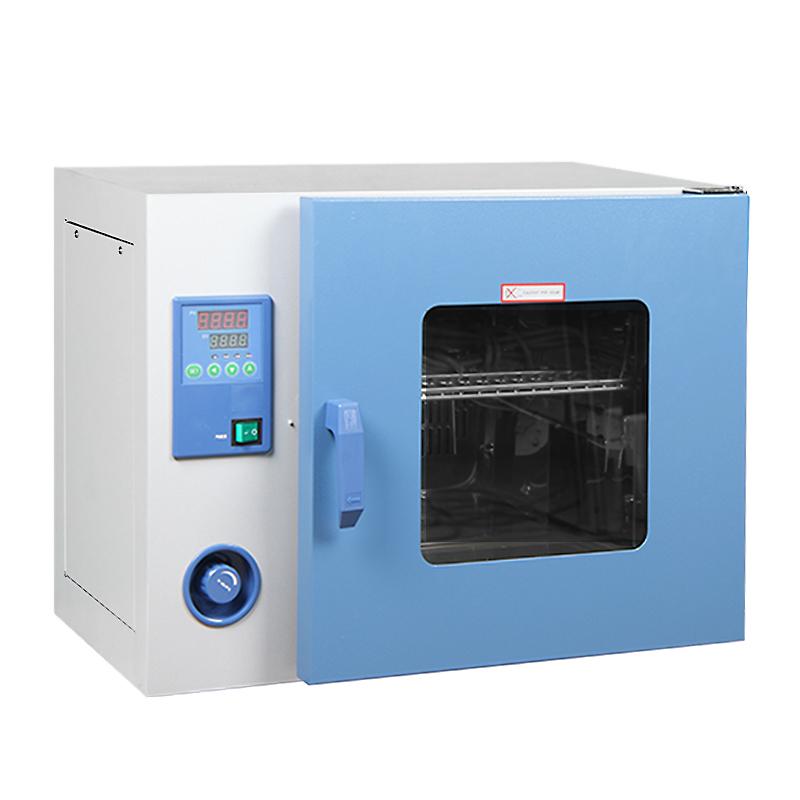

YIHENG DHG-9015A blast drying oven is a popular blast drying oven with mirror stainless steel argon arc welding. The input Power is 650W, the volume is 16L, and it is equipped with 2 shelves. The drying oven can be purchased with a multi-stage programmable LCD temperature controller for more stable and accurate temperature control.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room.
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)
Principle
DHG-9015A blast drying oven precisely controls the temperature in the box through a microcomputer P.I.D temperature controller, and the hot air circulation system is composed of a fan and an air duct, so that the temperature in the working room is evenly distributed and a stable drying effect is achieved.
Steps
1. Power supply voltage AC 220V 50Hz.
2. Set the required Temperature range RT + 10~ 300 ℃ through the temperature control panel.
3. Adjust the intake and exhaust volume of the box as required.
4. Set Timer Range 1~ 5999min (optional).
5. Start the equipment for drying operation.
6. Monitor temperature parameters, optional recording function.
Notice
• Ambient Temperature should be kept in the range of RT + 5~ 40 ℃.
• Power supply voltage check before use meets AC 220V 50Hz requirements.
• Note that the Temperature Fluctuation is +/- 1.0 ° C to ensure experimental accuracy.
• Independent temperature limit alarm system is optional, if high safety is required, it is recommended to configure it.
• Regularly check the sealing strip and hot air circulation system to ensure normal operation.
• Optional accessories such as multi-stage programmable temperature controller need to be purchased and installed.
