Overview

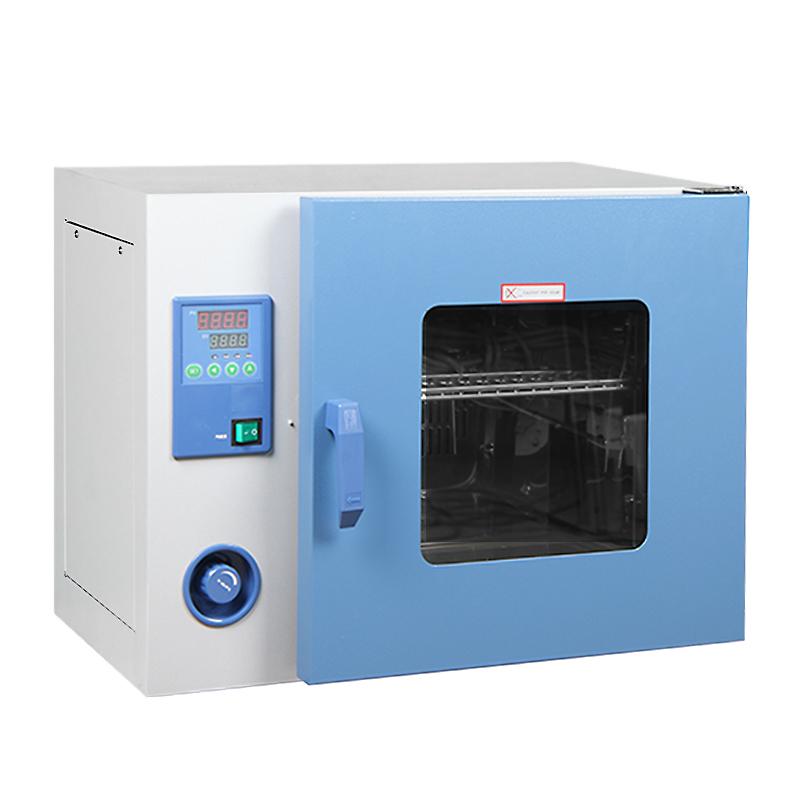

YIHENG DHG-9030 Benchtop drying oven uses galvanized sheet liner with a volume of 80L. The equipment uses a new synthetic silicon sealing strip to ensure high temperature operation, and the input Power is 850W. It is a reliable performance drying equipment.
Features

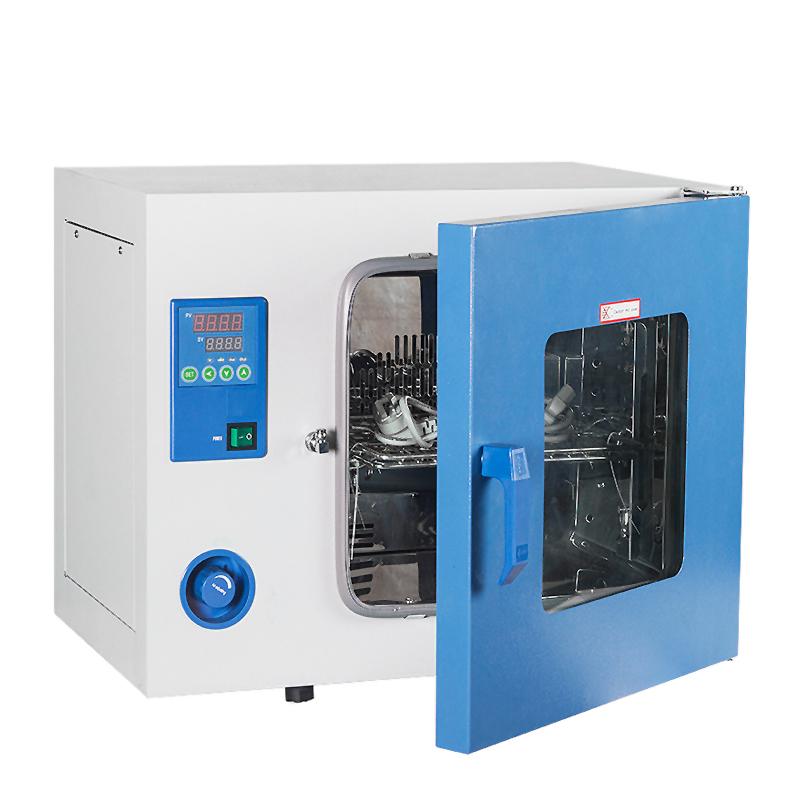

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
3. The hot air circulation system consists of high temperature continuous operation fans and suitable air ducts to improve the Temperature Uniformity in the working room
4, the use of new synthetic silicon sealing strip, long-term high temperature operation, long service life, easy to replace
5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional)
7. Can be equipped with a printer or RS485 interface, used to connect a printer or computer to record temperature parameter changes (optional)
Principle
DHG-9030 Benchtop blast drying oven precisely controls the temperature through the microcomputer P.I.D temperature controller, and cooperates with the hot air circulation system, which is composed of high-temperature fans and air ducts, so that the temperature in the working room is evenly distributed and efficient drying is realized.
Applications
Laboratories, scientific research institutions, industrial production
Steps
1. Connect the AC 220V 50Hz power supply
2. Set the required temperature through the temperature control panel (RT + 10~ 200 ° C)
3. Adjust the air intake and exhaust volume in the box
4. Set the timing function (1~ 5999min)
5. Start the device and start working
6. Monitor temperature parameter changes
Notice
• Working Ambient Temperature should be kept within the range of RT + 5~ 40 ℃
• Pay attention to the over-temperature protection function to ensure the safety of the experiment
• Regularly check the condition of the sealing strip and replace it if necessary
• Optional functions need to be configured separately
• Net weight of the equipment 27kg, pay attention to safety when handling
