Overview

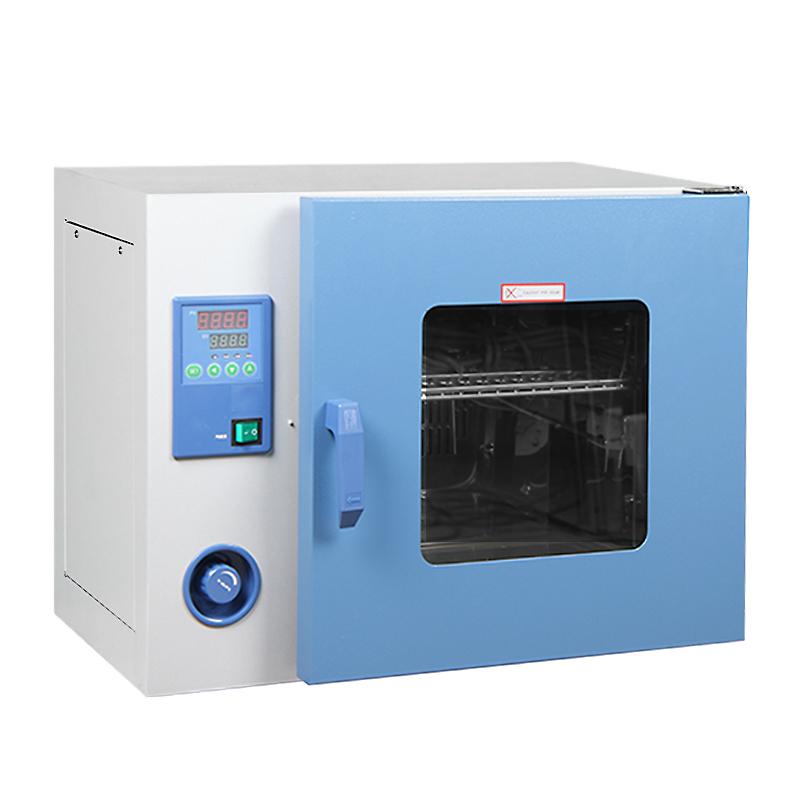

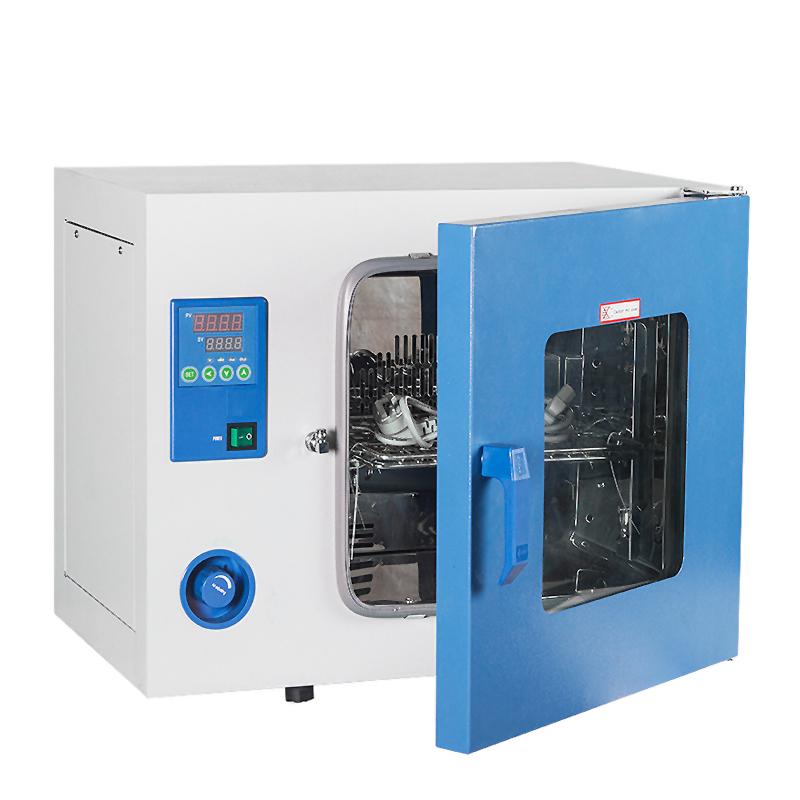

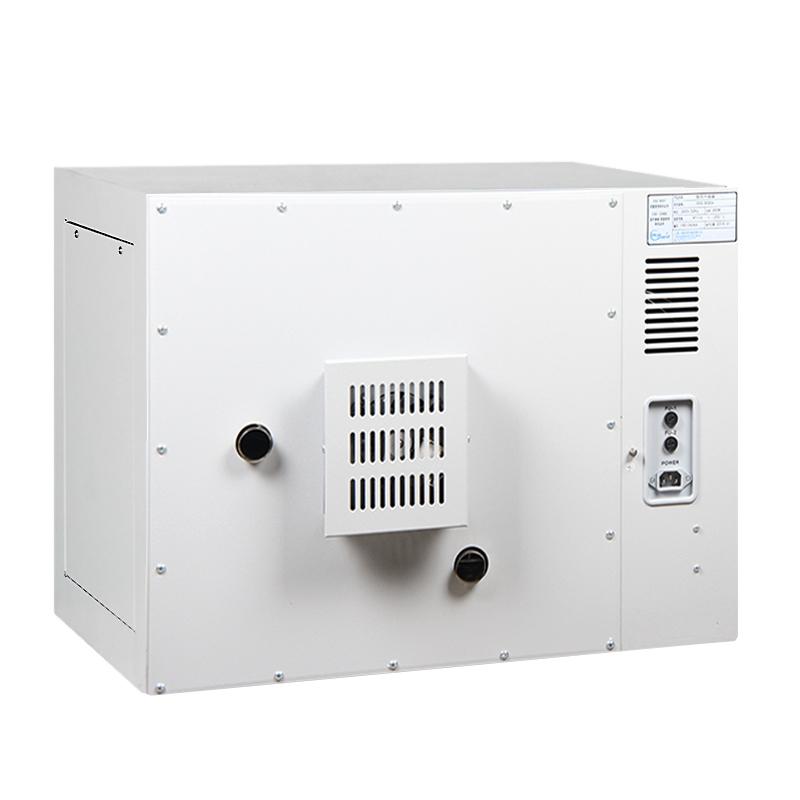

YIHENG DHG-9070 laboratory blast drying oven is a Benchtop blast drying oven dedicated to industrial and mining enterprises, laboratories and R & D institutions. The input Power is 1550W, the volume is 80L, and it has two shelves, which can achieve temperature control of 10~ 200 ° C.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room.
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)
Principle
The DHG-9070 laboratory blast drying oven precisely controls the temperature through the microcomputer P.I.D temperature controller, and the hot air circulation system is composed of a fan and an air duct to ensure uniform temperature distribution in the working room and achieve efficient drying.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply AC 220V 50Hz.
2. Set the required temperature (RT + 10~ 200 ℃) and Timer Range (1~ 5999 min) through the temperature control panel.
3. Adjust the intake and exhaust volume of the box as required.
4. Start the device and monitor changes in temperature parameters (optional recording function).
5. Turn off the power after use.
Notice
• Ambient Temperature should be kept in the range of RT + 5~ 40 ℃.
• When the temperature limit is exceeded, the independent temperature limit alarm system will automatically interrupt operation to ensure safety.
• Regularly check the sealing strip and hot air circulation system to ensure the normal operation of the equipment.
• Optional accessories such as independent temperature limit controller, RS485 interface, etc. need to be configured according to actual needs.
