Overview

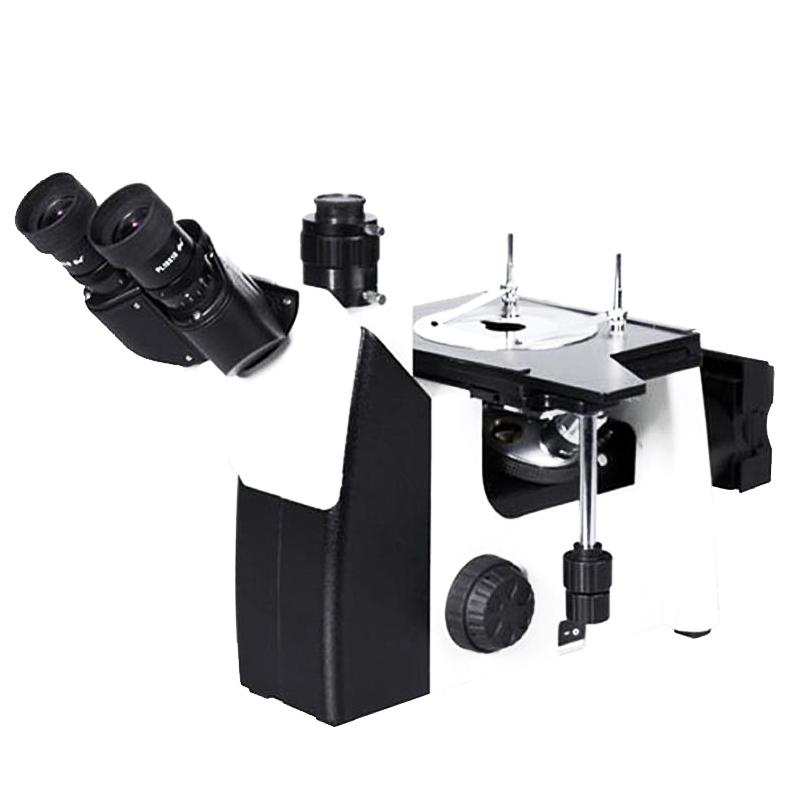

TEELEN XTL-12B Inverted Metallurgical Microscopy adopts professional metallographic objective and flat field eyepiece, which has good imagery mass and high resolution, providing superior image mass and stable mechanical structure. Optional camera accessories are available for image acquisition and storage, and computer and professional metallographic analysis software are used to realize metallographic image analysis. Easy to operate and complete accessories.
Features
1. Professional metallographic objective and flat field eyepiece combination, good imagery mass and high resolution
2. Stable and reliable mechanical structure design
3. Optional photography and video accessories, support image capture and storage and computer analysis
4. Easy to operate, complete accessories
5. Hinged trinocular observation head, 45 ° tilt, adjustable pupil distance and diopter
6. Low hand position coarse fine-tuning coaxial focusing mechanism, fine-tuning accuracy up to 2um
7.Reflection Cora lighting system, continuous adjustable light intensity, support wide voltage
Principle
The light source is provided by the reflection type Cora illumination system, and the rays of light are reflected into the eyepiece imagery after irradiating the sample through the objective lens. The combination of professional metallographic objectives and flat field eyepieces is used to ensure high resolution and clarity. The focusing system achieves precise focusing by coarse and fine-tuning the coaxial mechanism, and the observation head transmits the image to the eyepiece or photographic interface.
Applications
Teaching and research Metallographic analysis, semiconductor silicon wafer testing, address mineral analysis, precision engineering measurement
Steps
1. Turn on the power and turn on the lighting system
2. Place the sample on the stage
3. Coarse adjustment and focusing through the low-hand focusing mechanism
4. Adjust the pupil distance and diopter to a comfortable observation state
5. Choose the appropriate magnification objective
6. To capture images, connect photography equipment
7. Turn off the power after use
Notice
• Power supply voltage within 90V-240V range before use
• Coarse adjustment first and then fine adjustment when focusing to avoid damage to the sample
• Optical inspection parts are cleaned regularly to maintain imagery mass
• Pay attention to travel restrictions when moving the stage
• Power should be turned off if not used for a long time
• Optional accessories need to be installed correctly according to the instructions
