Overview

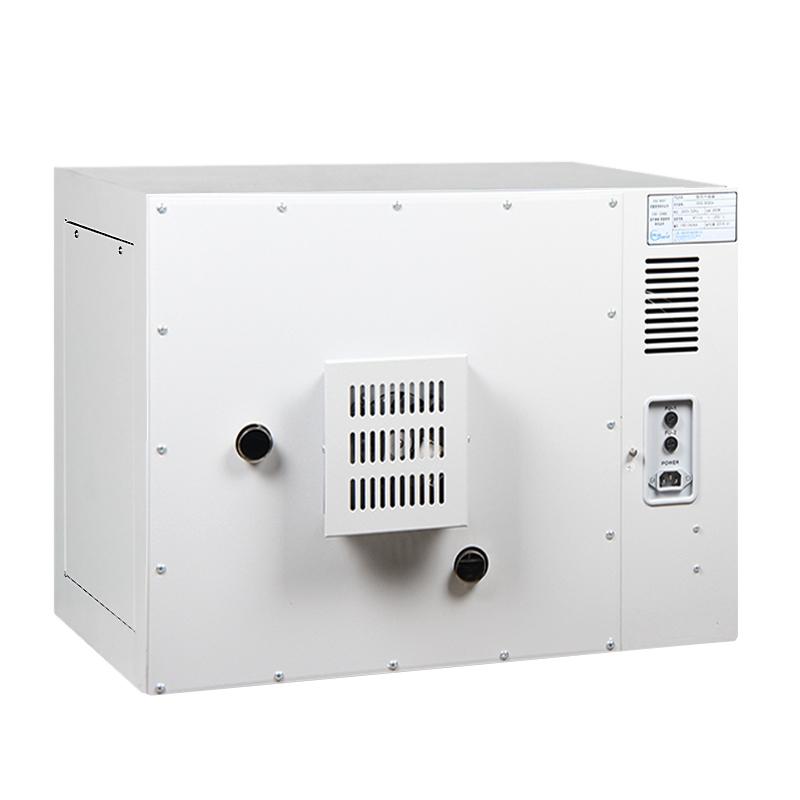

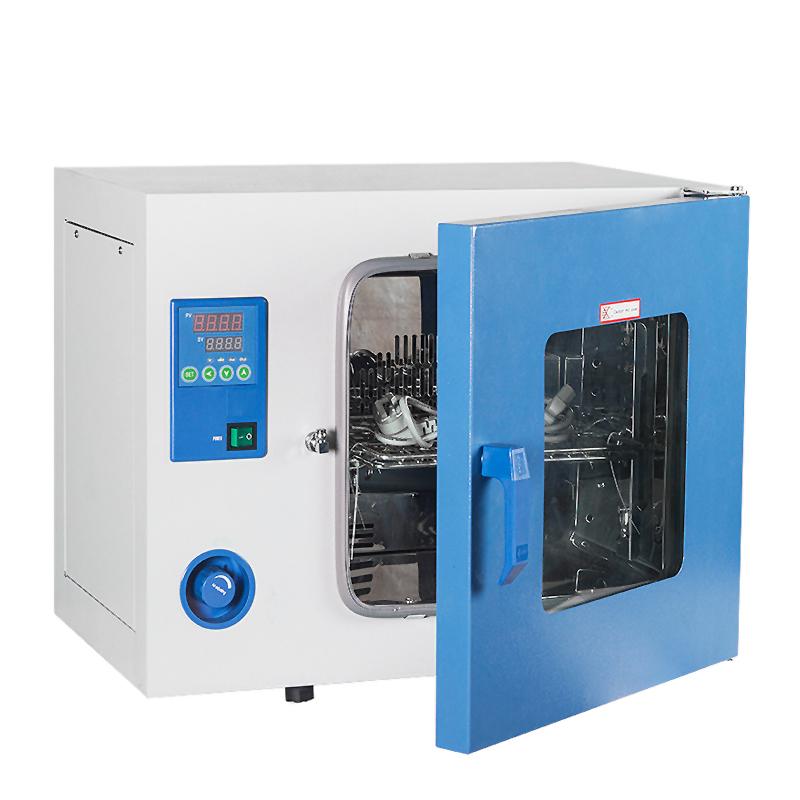

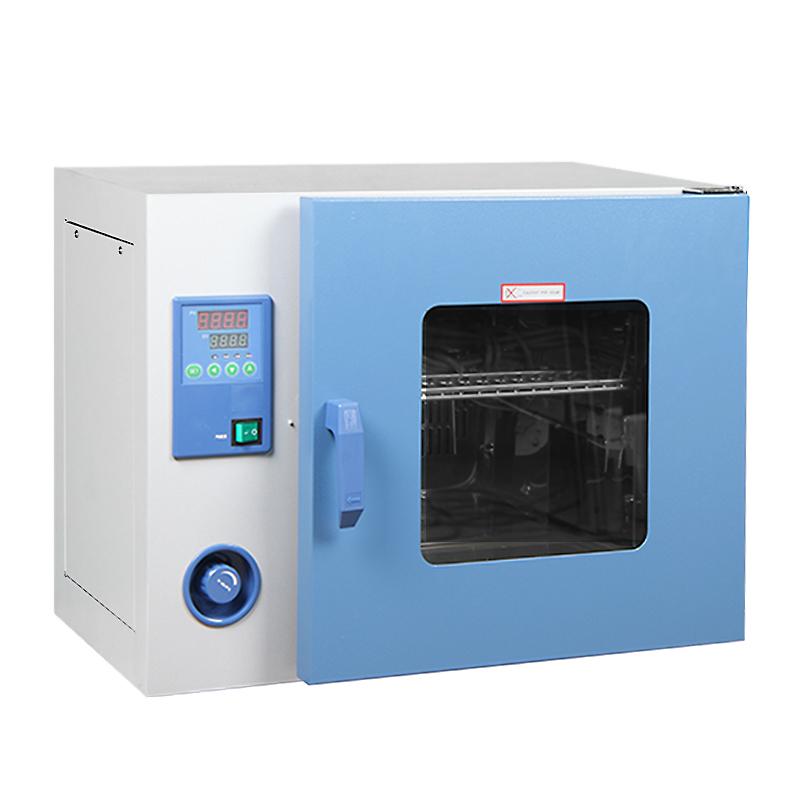

DHG-9140 blast drying oven is YIHENG's DHG popular blast drying oven, using galvanized sheet liner, the volume is 136L, the input Power is 2050W, Temperature range is 10~ 200 ℃.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of high temperature continuous operation fans and suitable air ducts to improve Temperature Uniformity.
4, the use of new synthetic silicon sealing strip, long-term high temperature operation, long service life, easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safety of the experiment. (optional)
7. It can be equipped with a printer or RS485 interface, connect to a printer or computer, and record changes in temperature parameters. (optional)
Principle
DHG-9140 blast drying oven through the microcomputer P.I.D temperature controller precise temperature control, combined with hot air circulation system, by the fan and duct in high temperature continuous operation, to ensure the uniform distribution of indoor temperature, to achieve efficient drying.
Applications
Drying, experiment, heat treatment
Steps
1. Connect the power supply and set the temperature control panel parameters.
2. Adjust the intake and exhaust volume as required.
3. Start the device and monitor temperature changes.
4. Use the timing function to control the running time.
5. After the experiment is over, turn off the power.
Notice
• Ensure that the Working Ambient Temperature is within the range of RT + 5~ 40 ℃.
• Power supply voltage is AC 220V 50Hz.
• Avoid over-temperature operation and pay attention to the status of the independent temperature limit alarm system (if optional).
• Regularly check the sealing strip and fan to ensure the normal operation of the equipment.
• Device weight, Net weight 68kg, gross weight 105kg.
