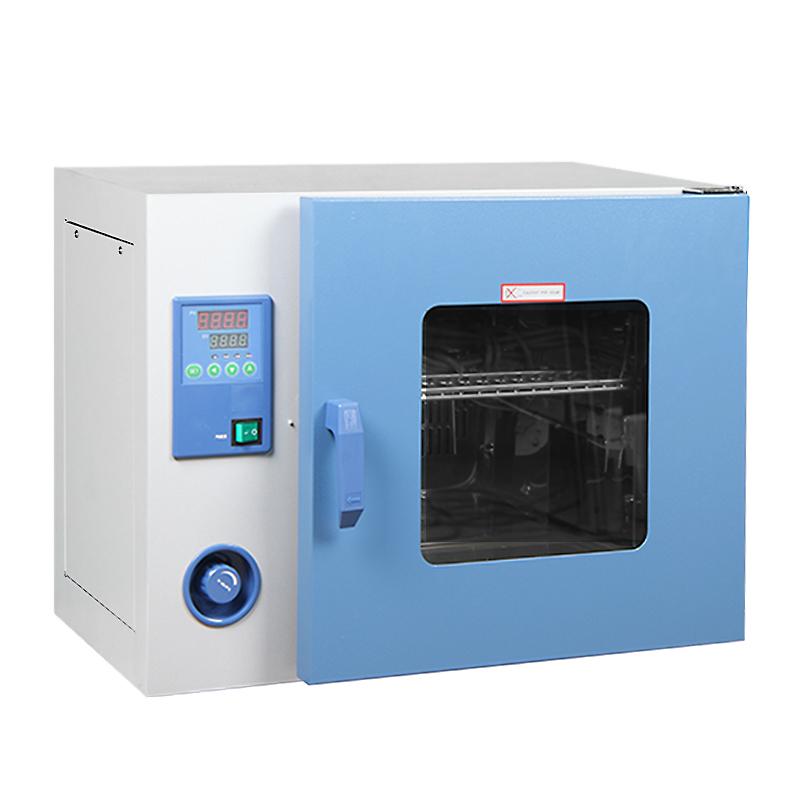

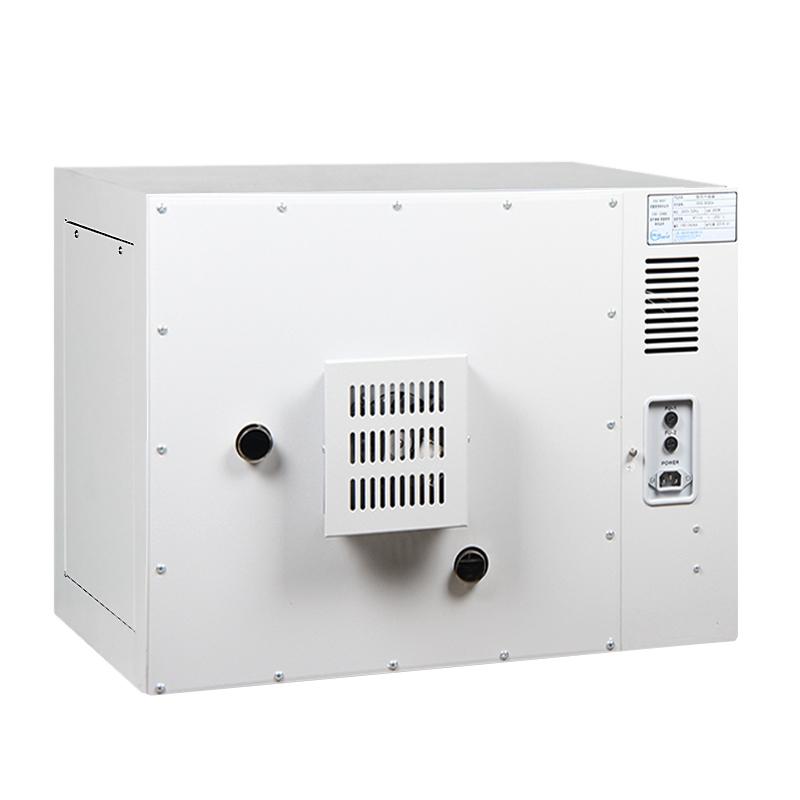

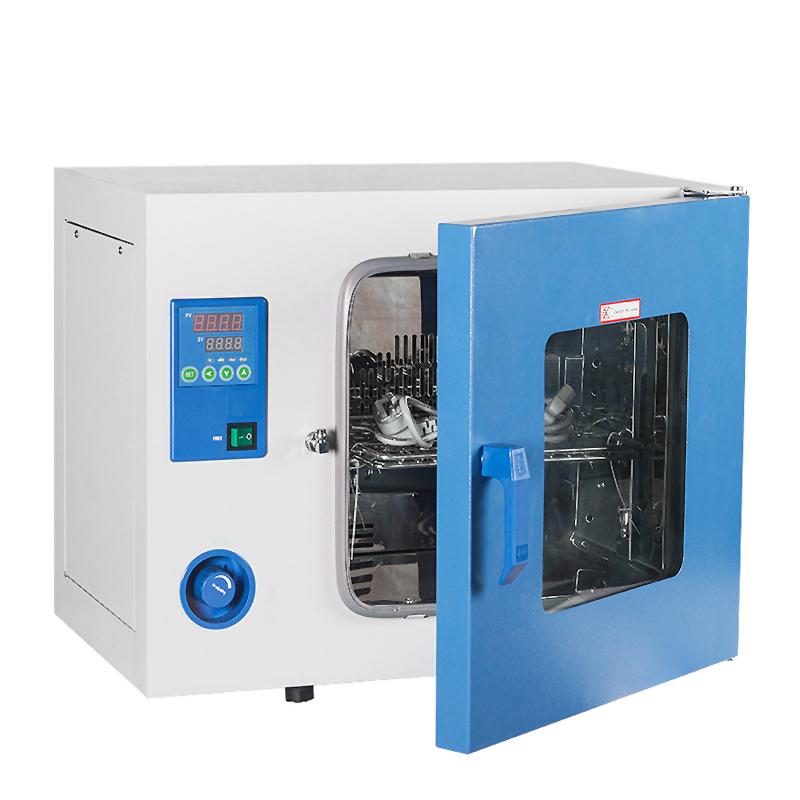

YIHENG DHG-9030A Drying Oven blast Drying Oven hot air circulation temperature uniform

Name: YIHENG DHG-9030A Drying Oven blast Drying Oven hot air circulation temperature uniform
Brand: YiHeng
SKU: NB004010
Price: 447.0 USD
Availability: InStock

$ 447.00Ex works

Adopt hot air circulation system to ensure Temperature uniformity, Temperature Fluctuation +/- 1 ℃, volume 30L, with over temperature deviation protection and timing function, can adjust the air inlet and exhaust volume.

Model

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB004010

Service :The delivery and service By NBCLab.Com

Overview

YIHENG DHG-9030A blast drying oven is a blast drying oven with hot air circulation system that can operate at high temperature, ensuring the uniformity of temperature in the working room, Temperature Fluctuation is +/- 1 ℃. DHG-9030A blast drying oven has an input Power of 850W and a volume of 30L.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance. 2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control. 3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room. 4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace. 5. The intake and exhaust volume of the box can be adjusted from the temperature control panel. 6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional) 7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)

Principle

Adopting a hot air circulation system that can operate at high temperature, composed of a fan that can operate continuously at high temperature and a suitable air duct, to improve the Temperature Uniformity of the working room and ensure the uniformity of the temperature in the working room.

Applications

Industrial and mining enterprises, laboratories, R & D institutions

Power supply Voltage
AC 220V 50Hz
Temperature Range
RT+10~200℃
Temperature Fluctuation
±1.0℃
Temperature resolution
0.1℃
Temperature Uniformity
±3%
Operating temperature
5~40℃
Input Power
850W
Volume
30L
Inner chamber dimensions
340*320*320mm
Dimension
620*530*490mm
shelf (std.)
2pcs
Timer Range
1~5999min
Net weight
27kg
gross weight
30kg
Packaging Dimensions
780*650*580mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
