Overview

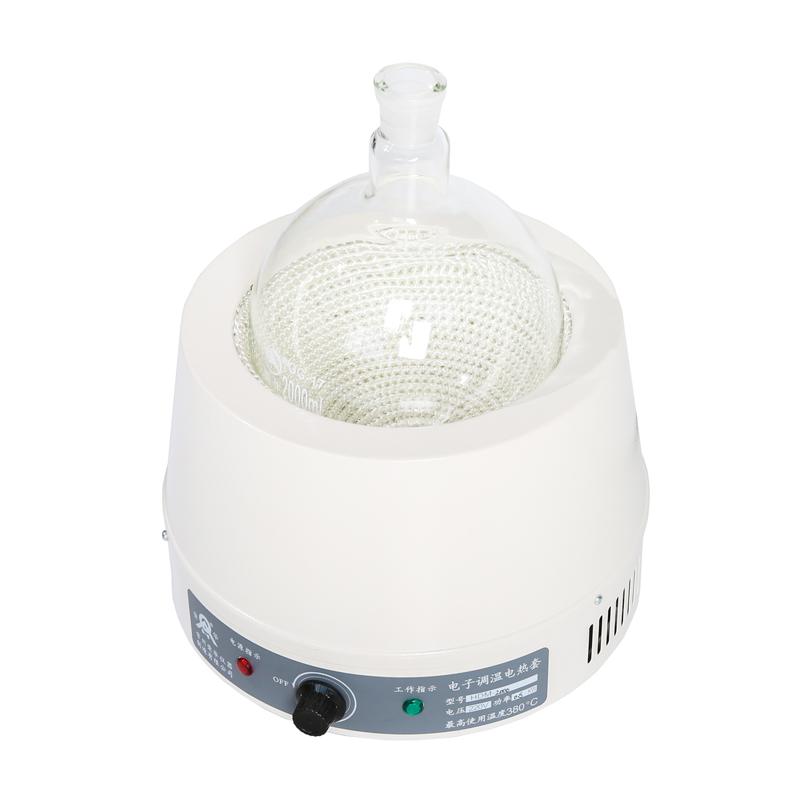

RONGHUA INSTRUMENT HDM-1000B Electronic Temperature Control Electric Mantle is a laboratory liquid heating equipment. It adopts high temperature resistant and alkali-free fiberglass insulation material, and the resistance wire sealing is woven into a hemispherical inner heating heater in the insulating layer. It has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to scratch Glass utensils. It is a reliable heating equipment for laboratories and fine chemical units in colleges and universities, petroleum, chemical, environmental protection and other industries.
Features
1. Adopting a non-electric shock electronic voltage regulation circuit, temperature control has the advantages of longer service life and wider temperature regulation range than mechanical temperature regulation.
2. Turn on the power switch when using, swirl/spin the temperature adjustment knob clockwise, the voltmeter displays the working voltage at the same time, and gradually heats up according to the required temperature. After reaching the temperature, turn the knob counterclockwise to achieve thermostatic.
Principle
Electric Mantle uses high temperature resistant non-alkali fiberglass as insulation material, the resistance wire is sealed in the insulating layer, and then woven into a hemispherical inner heating heater, and the heating process is controlled by an electronic temperature control circuit.
Applications
Laboratories in various colleges and universities, petroleum, chemical, environmental protection and other industries
Steps
1. Turn on the power switch.
2. Clockwise swirl/spin the temperature adjustment knob, the voltmeter shows the working voltage.
3. Gradually heat up according to the required temperature.
4. After reaching the required temperature, turn the adjustment knob counterclockwise to achieve thermostatic.
Notice
• When using it for the first time, slowly heat up. Turn off the power supply after seeing the raw white smoke. After the smoke is scattered, power on and heat up. Repeat several times until it is powered on and smoke-free, it can be officially used.
• No flammable, explosive, corrosive liquids or gases can enter the Electric Mantle.
• Electric Mantle relative working environment humidity does not exceed 85%.
• This product must be grounded, dried and not damp during storage.
• If there is moisture, use should pay attention to induction electricity, do not touch with hands, after drying can restore its good insulation performance.
