Overview

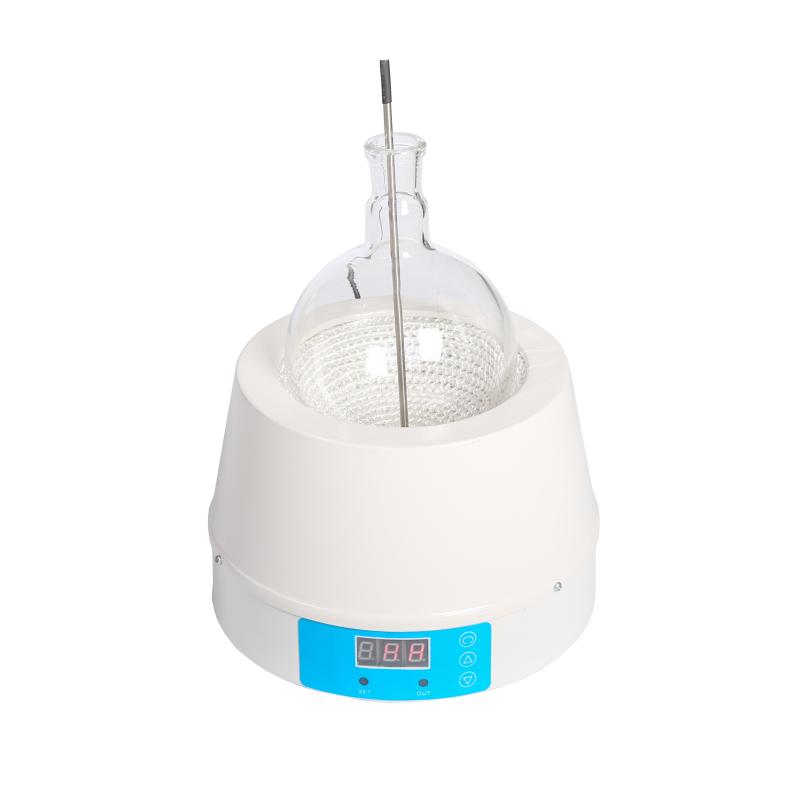

RONGHUA INSTRUMENT HDM-2000C digital temperature control Electric Mantle is used for laboratory liquid heating equipment. It uses high temperature resistant and alkali-free fiberglass insulating material to seal the resistance wire in the insulating layer and weave it into a hemispherical inner heating heater. It has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to bruise Glass utensils. It is a reliable heating equipment for laboratories and fine chemical units in colleges and universities, petroleum, chemical, environmental protection and other industries.
Features
1. Digital display intelligent temperature control design, with two Sensors for temperature measurement.
2. The built-in Sensor plug can measure the temperature of the board surface, and the external Sensor plug can measure the temperature of the material.
3. Large heating area, fast heating and good thermal insulation effect.
4. No open flame, not easy to hurt Glass ware.
5. Suitable for continuous operation mode.
Principle
Electric Mantle uses high-temperature resistant and alkali-free fiberglass as the insulating material, the resistance wire is sealed in the insulating layer, and then woven into a hemispherical inner heating heater, which realizes precise temperature control through an intelligent temperature control system.
Applications
Laboratories in various colleges and universities, petroleum, chemical, environmental protection and other industries
Steps
1. Slowly heat up when using it for the first time. Turn off the power after seeing the white smoke, and then power on the heat up after the smoke dissipates. Repeat several times until it is officially used after power on and smoke-free.
2. Plug in the built-in Sensor plug to measure the temperature of the board surface, or unplug the built-in Sensor plug and replace it with an external Sensor plug to measure the temperature of the material.
Notice
• When using it for the first time, slowly heat up and repeatedly power on to remove smoke.
• No flammable, explosive, corrosive liquids or gases can enter the Electric Mantle.
• Relative working environment humidity does not exceed 85%.
• The product must be grounded, dried and not damp during storage.
• If there is moisture, pay attention to induction electricity when using, do not touch it with your hands, and restore the insulation performance after drying.
