Overview

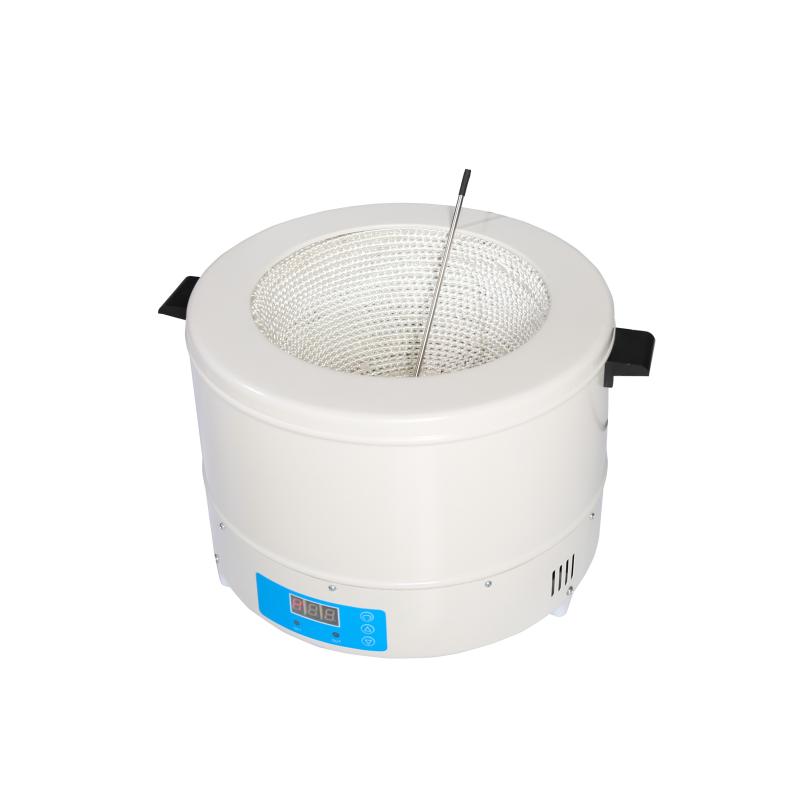

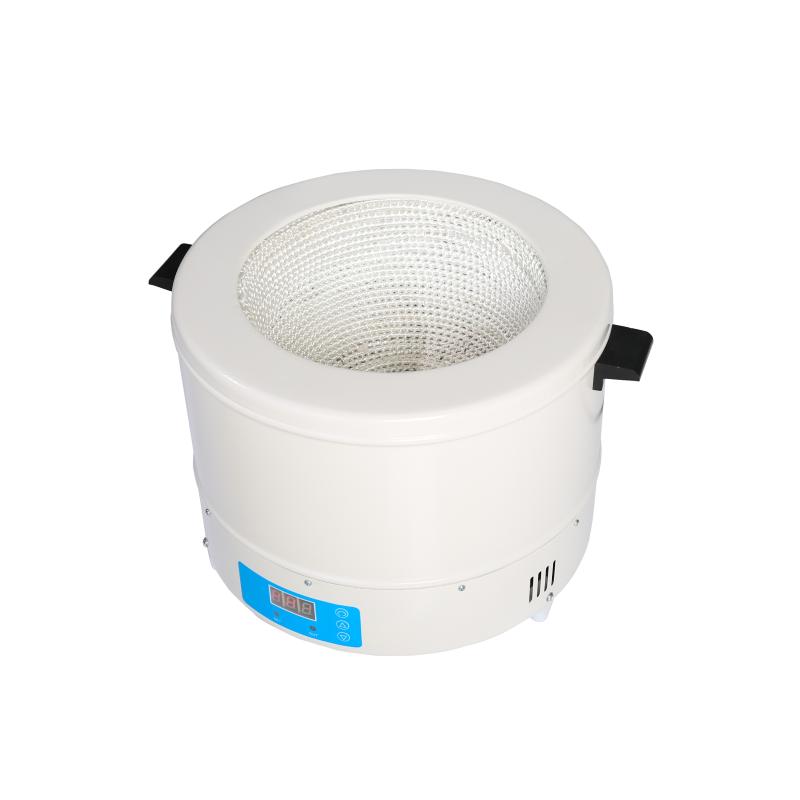

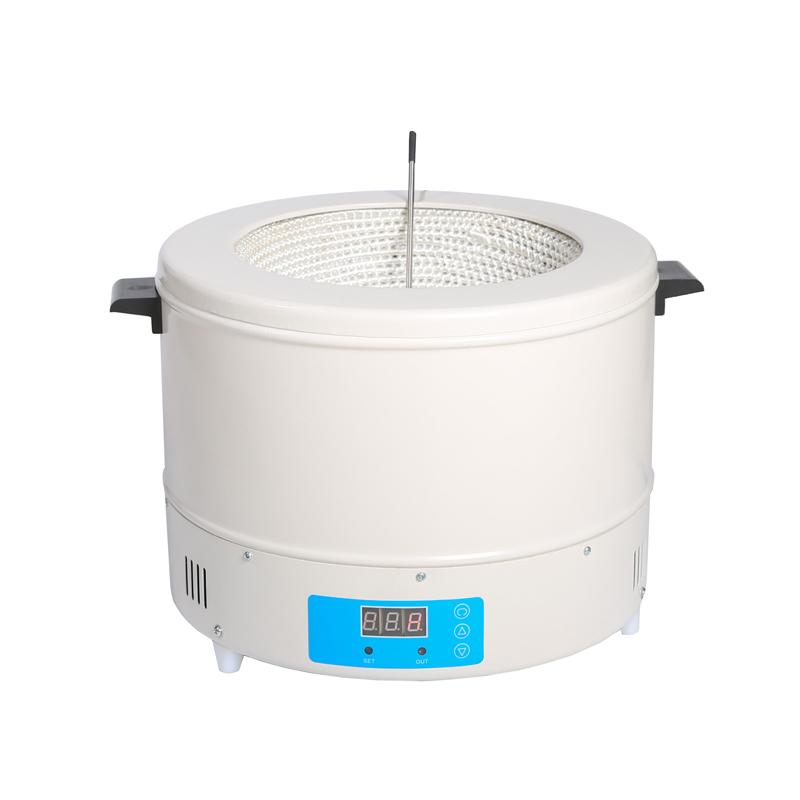

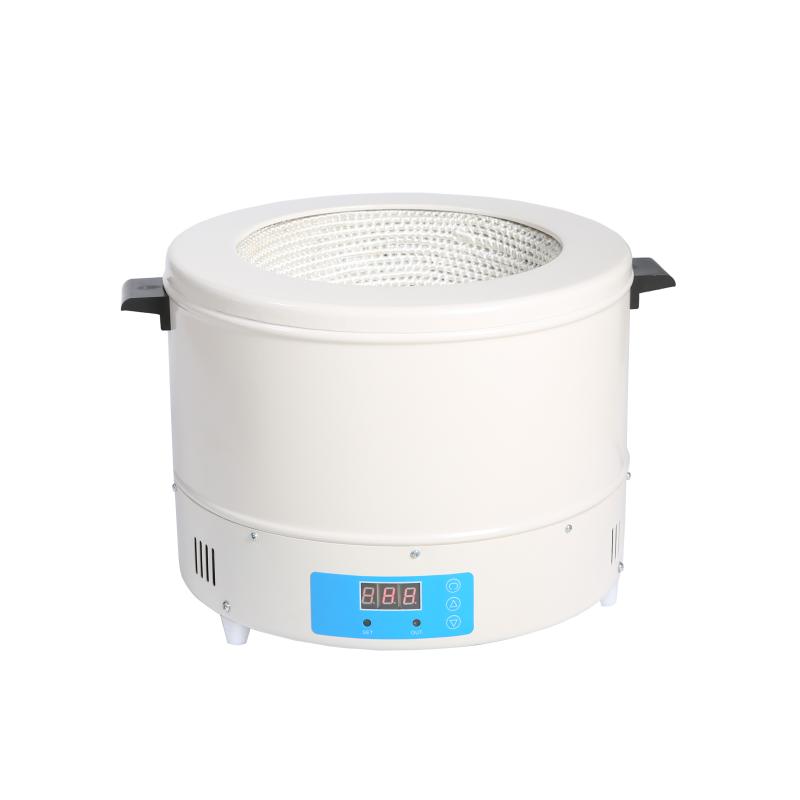

RONGHUA INSTRUMENT HDM-5000C Digital Temperature Control Electric Mantle is mainly used for heating laboratory liquids in colleges and universities, petroleum, chemical, environmental protection and other industries. It uses high temperature resistant and alkali-free fiberglass as insulating material, seals the resistance wire in the insulating layer, and then weaves into a hemispherical internal heating heater. The product has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to scratch Glass utensils. It is a reliable heating equipment for laboratories and fine chemical units.
Features
1. Digital display intelligent temperature control design, with two Sensors for temperature measurement; 2. Built-in Sensor for measurement of board surface temperature; 3. External Sensor for measurement of material temperature; 4. Large heating area, fast heating, good thermal insulation effect; 5. No open flame, not easy to bruise Glass ware.
Principle

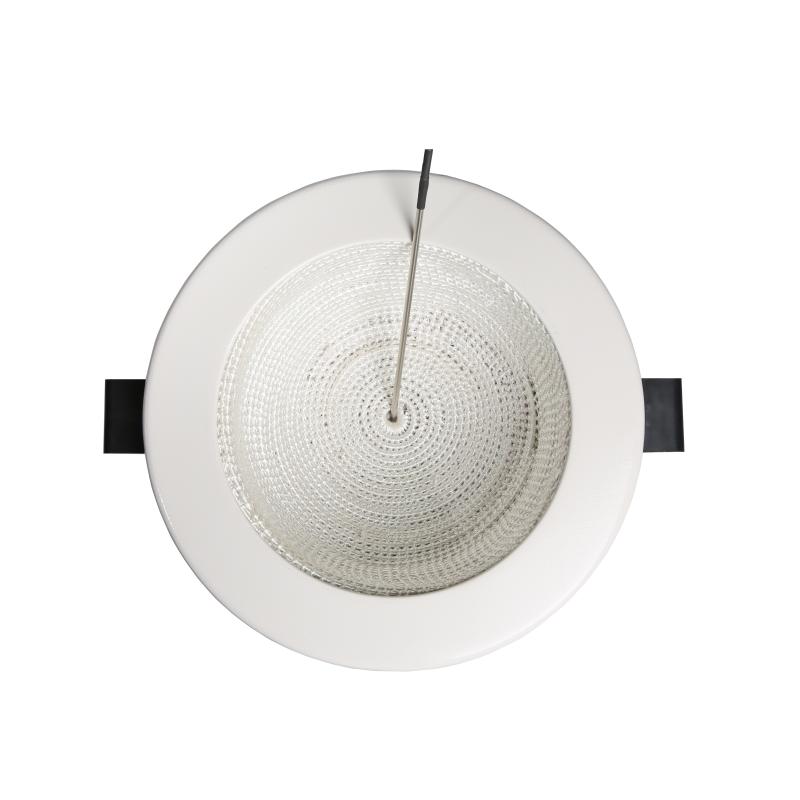

Electric Mantle uses high temperature resistant and alkali-free fiberglass as insulation material, the resistance wire is sealed in the insulating layer, and then woven into a hemispherical inner heating heater, which realizes accurate temperature control through an intelligent temperature control system.
Applications
Colleges and universities, laboratories in petroleum, chemical, environmental protection and other industries
Steps
1. The first time you use it to slowly heat up, turn off the power after seeing the raw white smoke; 2. Power on and heat up after the smoke is sprinkled, and repeat it several times until it is powered on and smoke-free; 3. Plug in the built-in Sensor plug to measure the temperature of the board; 4. Unplug the built-in Sensor plug and replace it with an external Sensor plug to measure the temperature of the material.
Notice
• The first time you use it, you should slowly heat up and repeat it several times until it is powered on and smoke-free; • The Electric Mantle cannot enter flammable, explosive, corrosive liquids or gases; • The relative working environment humidity should not exceed 85%; • The product must be grounded; • When storing, it should be dried and not damp; • If there is moisture, you should pay attention to induction electricity when using it, do not touch it with your hands, and its good insulation performance can be restored after drying.
