Overview

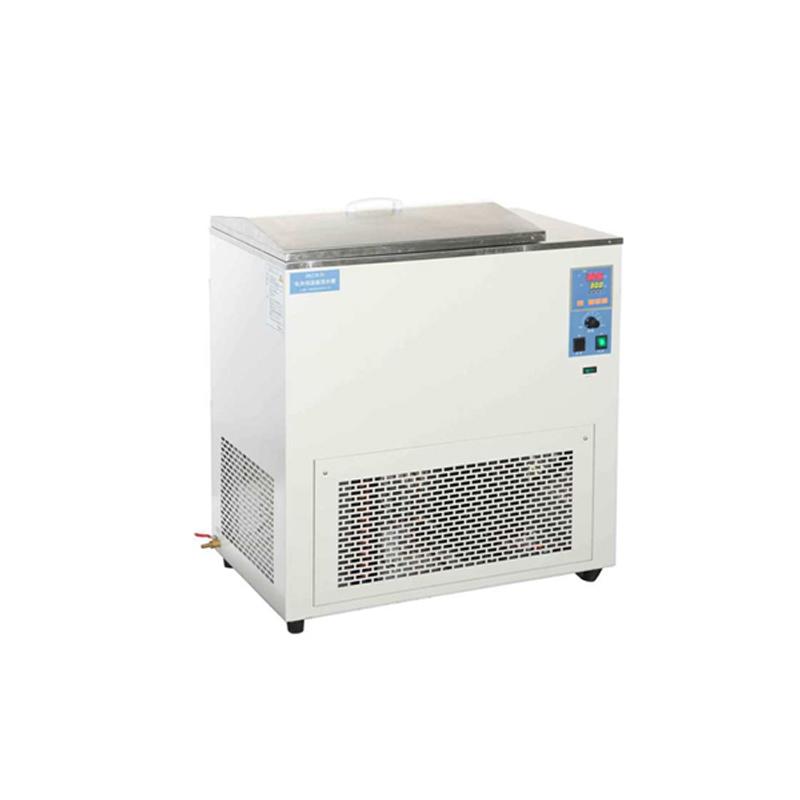

YIHENG DKZ-1C Low Temperature Oscillation Sink is a small volume Thermostatic water bath with a liner size of 440x300x250mm and input Power of 1500W. Its Temperature range is 10~ 99 ℃, Temperature resolution is 0.1 ℃, and it adopts stepless speed regulation AC geared motor, which has the advantages of high Linearity and low noise.
Features
1, stainless steel liner and top cover, anti-corrosion, easy to clean
2. Microcomputer PID temperature controller, accurate and reliable temperature control, with timing function
3. Support heating drying test
4. Equipped with over-temperature sound and light tracking alarm function to protect sample safety
5. Adopt stepless speed regulation AC deceleration motor, direct drive Shaker, high Linearity, low noise
6. Optional multi-stage programmable controller, preset 15-stage 30-step program, 1 to 99 hours and 59 minutes per period, simplifying the complex test process
Principle
Sample Handling in thermostatic environment is realized by using the PID temperature controller of microcomputer to precisely control the temperature.
Applications
Bacterial fostering, fermentation, hybridization, chemical and biochemical reactions, enzymes and tissue studies
Steps
1. Connect power supply AC220V 50HZ
2. Set the required temperature (10~ 99 ℃) and Rotation speed (30~ 150rpm)
3. Select amplitude 30mm or 40mm (indent)
4. Start the equipment for thermostatic oscillation operation
5. Optional multi-stage programming controller preset complex test program
Notice
• Power supply voltage AC220V 50HZ before use
• Pay attention to whether the over-temperature alarm function is normal
Maintain the stainless steel liner properly when cleaning
• Pay attention to the weight of the whole machine when transporting (Net weight 60Kg)
• Amplitude selection should be clearly indicated in the indent
