Overview

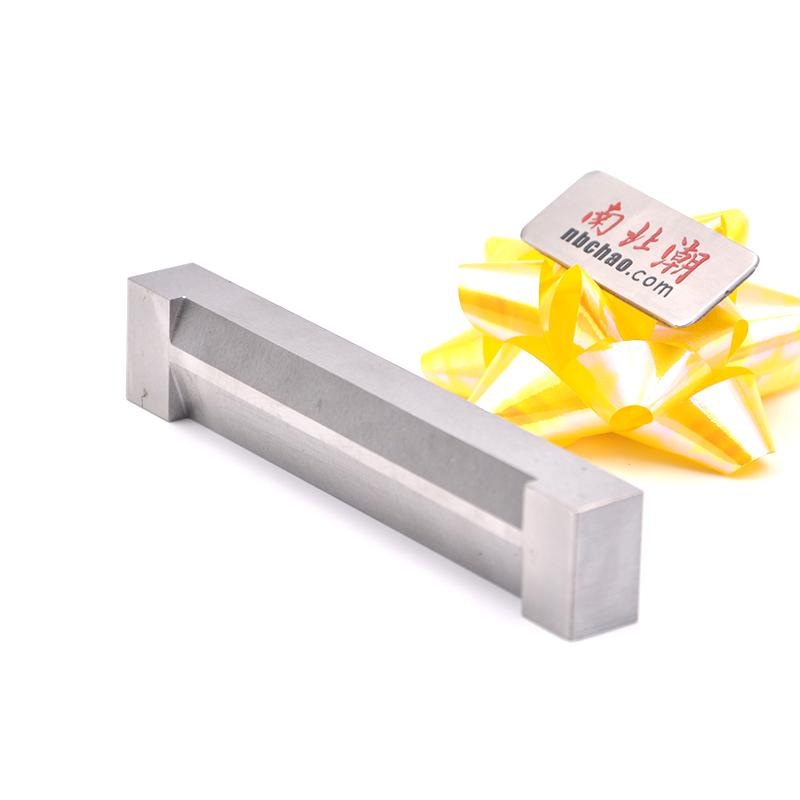

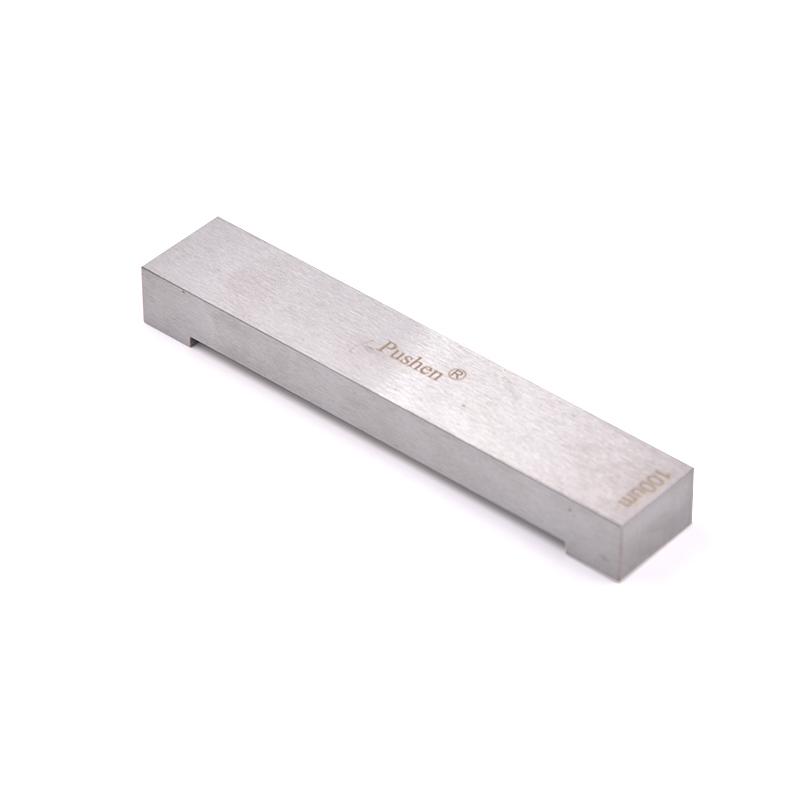

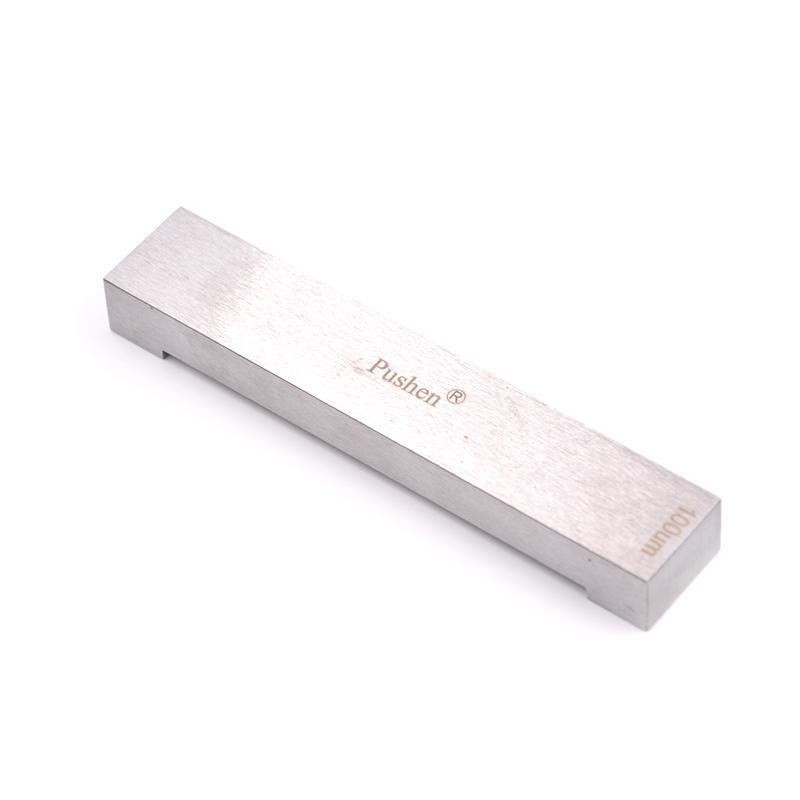

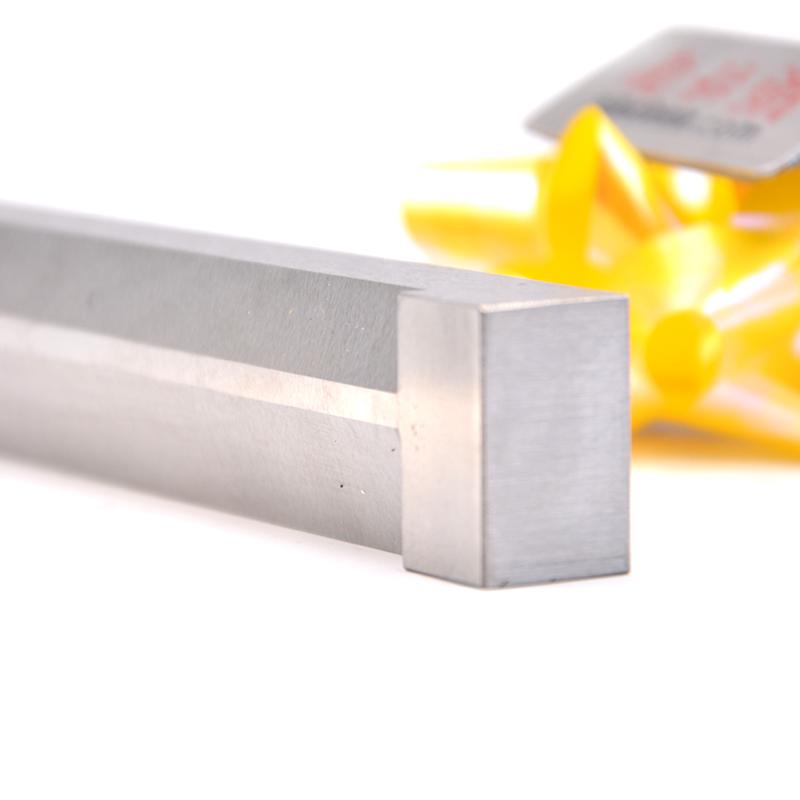

The PUSHEN SZQ-800um Single Sided Film Applicator is a laboratory tool for Spreader specific thickness wet-film, preparing 800μm thick paint films. The Applicator is made of stainless steel, which effectively resists the erosion of acid and alkaline substances in Coatings or cleaning agents, ensuring that the film is uniform and flat.
Features
1. Made of hard stainless steel, strong corrosion resistance
2. Film layers of specific thickness and width can be prepared
3. High Accuracy fixed film thickness to ensure Spreader Accuracy
4. Application width 100mm, size 128mm
5. Uniform Spreader Effect on Flat Solid Substrate
Principle
Single-sided Film Applicators create uniform layers of specific thickness and width by applying on a flat and solid substrate. The Working Principle is based on precise mechanical design to ensure precise film thickness control during the Spreader process, providing comparable samples for subsequent testing.
Applications
Coatings, inks, pigments, powders
Steps
Step 1 Prepare a flat, solid substrate
2. Choose the Right Single-Sided Film Applicator
3. Spreader operation on the substrate
4. Form a uniform film of a specific thickness and width
5. For subsequent testing and analysis
Notice
• Make sure the substrate is flat and firm
• Select the appropriate film thickness specification
• Pay attention to cleaning and maintenance to avoid corrosion
• Maintain uniform force during Spreader
• Sample prepative mass directly affects test Reliability
