Overview

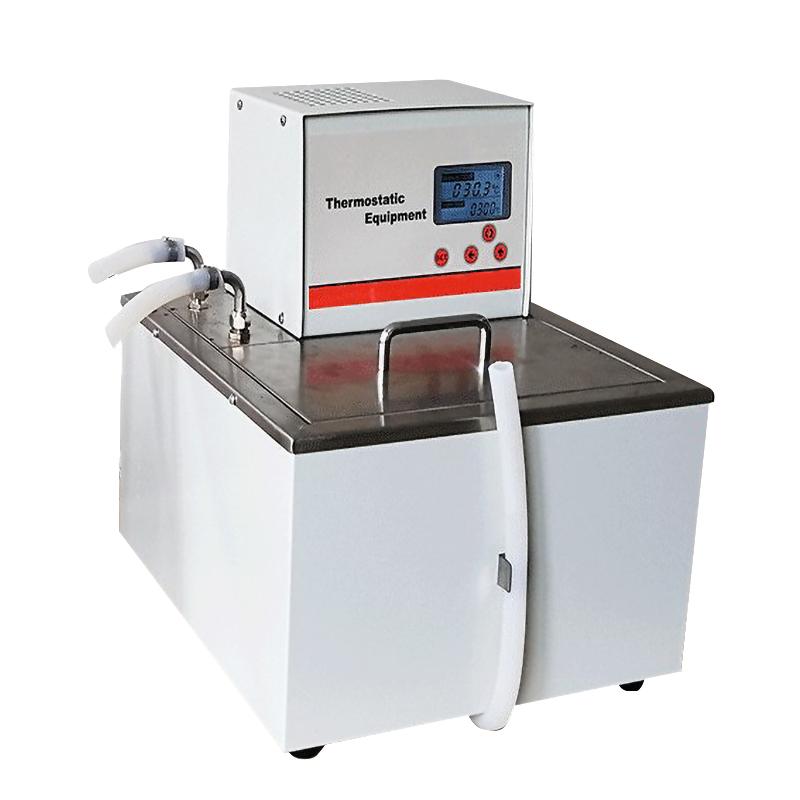

QIWEI HS-601B super thermostatic water bath is a replacement product of super constant temperature water bath. It has dual functions of internal and external circulation, which greatly improves the uneven water temperature at each point in the box and can be connected with external experimental equipment. The product has high temperature control accuracy, strong corrosion resistance, compact structure, beautiful appearance, energy saving and long service life. It is suitable for thermostatic test experiments or auxiliary heating in experimental science fields such as biology, physics, plants, chemical industry and environmental protection.
Features
1. Add circulating pump to improve Operating temperature conformity and accuracy
2. Adopt intelligent temperature control instrument to make heating and thermostatic more stable
3. Have both domestic circulation and external circulation
Principle

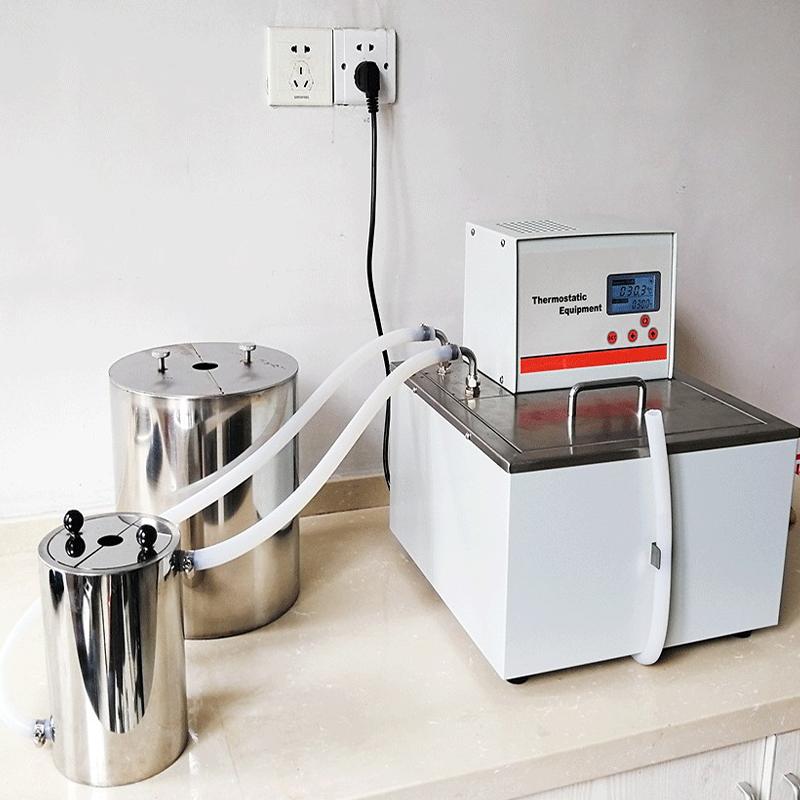

The heating system is precisely controlled by the intelligent temperature control instrument, and the internal and external circulation functions are realized in combination with the circulation pump to ensure the uniform and stable temperature in the working tank. The domestic circulation improves the uniformity of the water temperature in the box, and the external circulation can be connected with the external experimental equipment to realize the thermostatic liquid circulation.
Applications
Biology, physics, plants, chemicals, environmental protection
Steps
1. Plug in the power supply, turn on the power switch, and then turn on the cycle button.
2. Press the SET key to enter the temperature setting state, set the required Operating temperature through the shift key and the digital adjustment key, and then press the SET key to confirm that the set value is saved
Notice
• Before use, a liquid medium should be added to the tank, and it cannot be dry burned (the liquid cannot contain acid and alkaline)
• The power supply power should be greater than or equal to the total power of the instrument, and the power supply should have a good grounding device
• The instrument should be placed in a ventilated drying place
• Turn off the machine and unplug the power plug after use
• When adding water, it is not less than 8cm away from the upper cover. Soft water is recommended. Do not use hard water such as well water, river water, and spring water.
• Do not cover the cover when the heating temperature is too high to avoid water vapor entering the display screen
• The external circulation pipe connection should be firm, and often check whether the hose is aging
