Overview

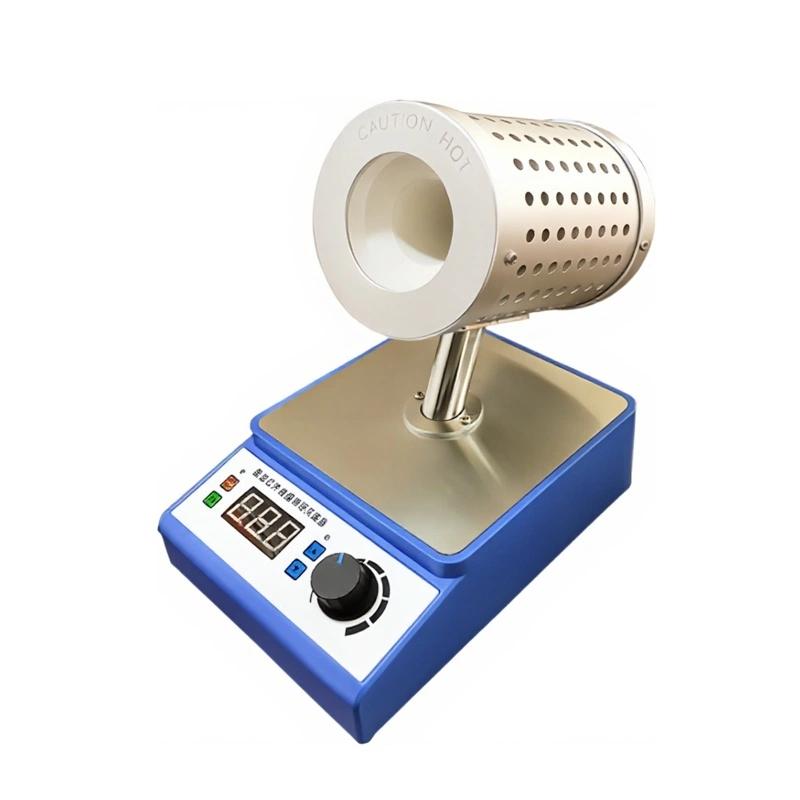

RONGHUA INSTRUMENT RH-800XS Infrared inoculation ring Autoclave is used for high temperature sterilizing and disinfection of small items such as inoculation rings and inoculation needles, completely replacing alcoholburners, which is convenient and fast. It can be widely used in biological safety cabinets, Laminar Flow Cabinets, next to extractor fans, mobile cars and other environments, and even in harsh environments such as the wild. High temperature sterilizing and disinfection can be carried out at any time.
Features
1. Inoculation ring sterilizing is safe and convenient, and can completely replace alcoholburners
2. The temperature in the heating zone can reach above 900 ° C, and sterilization only takes 5 to 7 seconds
3. Small size, light weight, easy to operate, beautiful instrument, easy to clean, long service life
4. This device can be used in an anaerobic chamber
5. Pottery and porcelain funnel deep in the ash of organic matter to prevent infectious splashing and cross-contamination
6. With intelligent algorithms, it can fully extend the service life of the heating body and effectively improve safety
Principle
Through infrared heating technology, high temperatures of up to 900 ° C or more are generated in the heating zone, and small items such as seed rings and inoculation needles are quickly sterilized at high temperature.
Applications
Biological safety cabinet, Laminar Flow Cabinet, next to the exhaust fan, mobile vehicle, outdoor and other environments
Steps
Step 1 Power on
2. Wait for heating to Operating temperature
3. Put the inoculation ring, inoculation needle and other items into the heating area for sterilization
4. Remove items after sterilizing
Notice
• Power supply voltage meets AC220V~ 50-60Hz requirements
• Heating time is about 10 minutes, you need to wait until the Operating temperature is reached before use
• The maximum heating outer diameter is φ 15mm, please do not exceed this size
• Pay attention to prevent burns and be careful when operating
• Regularly clean the surface of the instrument to maintain hygiene
