Overview

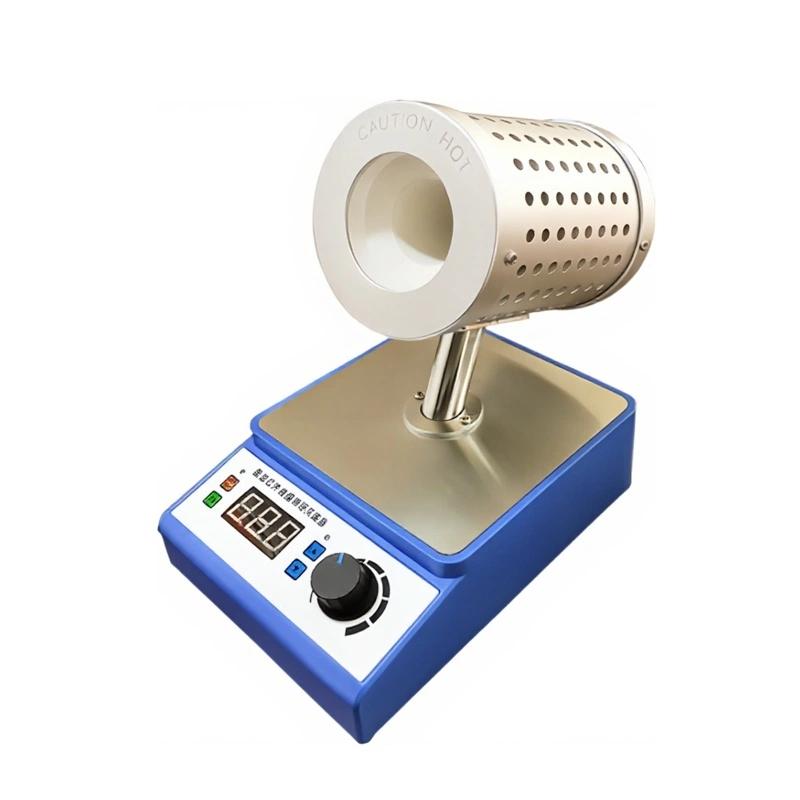

RONGHUA INSTRUMENT Infrared inoculation ring Autoclave (model RH-800DS) is used in high temperature sterilization and disinfection of inoculation rings, inoculation needles and other small items, completely replacing alcoholburners, which is convenient and fast. It can be widely used in biological safety cabinets, Laminar Flow Cabinets, next to extractor fans, mobile cars and other environments, and even in harsh environments such as the wild. High temperature sterilization can be carried out at any time.
Features
1. Inoculation ring sterilizing is safe and convenient, and can completely replace alcoholburners
2. The temperature in the heating zone can reach above 900 ° C, and sterilization only takes 5 to 7 seconds
3. Small size, light weight, easy to operate, beautiful instrument, easy to clean, long service life
4. This device can be used in an anaerobic chamber
5. Pottery and porcelain funnel deep in the ash of organic matter to prevent infectious splashing and cross-contamination
6. With intelligent algorithms, it can fully extend the service life of the heating body and effectively improve safety
Principle
Infrared inoculation ring Autoclave generates high temperature (up to 900 ° C or more) in the heating area through infrared heating technology, and quickly sterilizes small items such as seed rings and inoculation needles at high temperature to achieve safe and efficient sterilization effect.
Applications
Biological safety cabinet, Laminar Flow Cabinet, next to the exhaust fan, mobile vehicle, field environment
Steps
1. Connect the power supply and ensure that the voltage is AC220V~ 50-60Hz
2. Turn on the device and wait for it to heat up to Operating temperature (about 10 minutes)
3. Put the inoculation ring, inoculation needle and other small items into the heating area for sterilization, and the sterilization time is 5 to 7 seconds
4. Turn off the equipment after use and clean the surface of the instrument
Notice
• Power supply voltage meets AC220V~ 50-60Hz requirements
• The heating time of the device is about 10 minutes, please do not use it when it does not reach the Operating temperature
• The temperature of the heating zone is extremely high, avoid direct contact during operation to prevent burns
• Regularly check the fuse (specification 250V 3A 5 × 20) to ensure safe operation
When cleaning instruments, make sure the equipment is turned off and chilled down to avoid the use of corrosive cleaners
