Overview

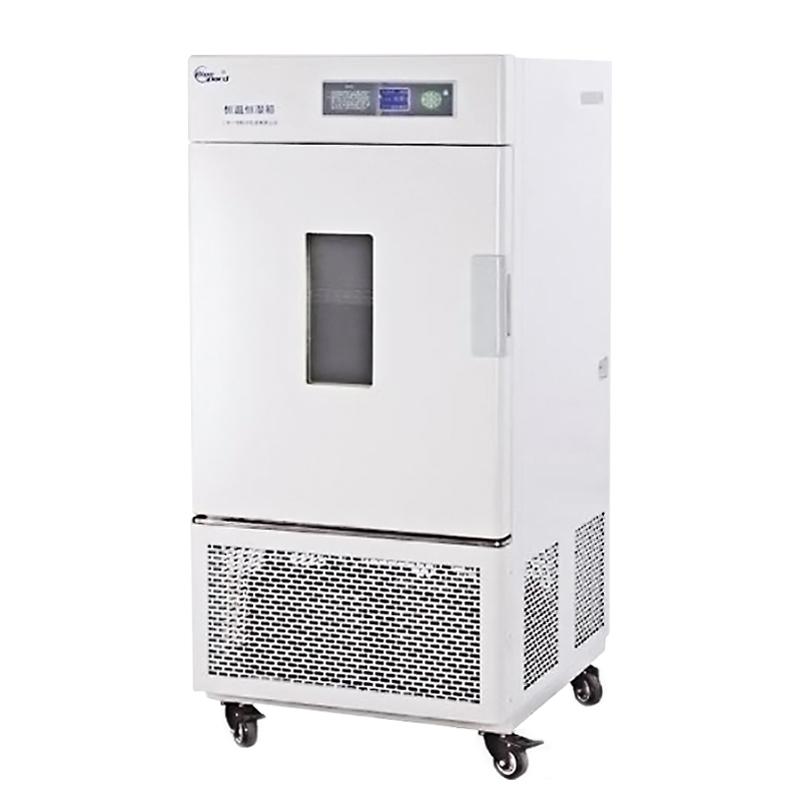

YIHENG LHS-100CA humidity chamber is a vertical humidity chamber with refrigeration system, Input Power is 2300W, Temperature range is -20~ 85 ℃, Temperature resolution is 0.1 ℃. Fully fluorine-free design, environmental protection and health; stainless steel liner, durable and anti-corrosion.
Features
1. The new fluoride-free design keeps you at the forefront of healthy living.
2. Mirror stainless steel liner, four corners and a half arc easy to clean, adjustable shelf spacing.
3. Microcomputer temperature Humidity controller, using TMHM equilibrate Conditioning method, stable operation, accurate temperature and humidity control and safe and reliable. Controller, Compressor and other key components are imported products.
4. It is equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents.
There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and Measuring temperature.
6. Can be equipped with recorder to record Temperature and Humidity Linear dispersion. (optional)
Principle
TMHM equilibrating Conditioning method is adopted, and the temperature and Humidity environment in the box is precisely controlled by a microcomputer temperature and Humidity controller to ensure stable operation and accurate and reliable temperature and humidity control.
Applications
Spinning & weaving, Food processing and other aseptic tests, Stability inspection, Raw material performance testing of industrial products, Encasement testing, product life testing
Steps
1. Connect the power supply (AC220V 50HZ)
2. Set Required Temperature and Humidity Parameters by Microcomputer Temperature and Humidity Controller
3. Place the sample on the adjustable spacing shelf
4. Start the device running
5. Experimental operation and temperature measurement can be carried out through the left test hole
6. Optional recorder to record Humidity Linear dispersion
Notice
• Ambient Temperature should be kept within 5~ 30 ℃
• When the temperature limit is exceeded, the independent temperature limit alarm system will automatically interrupt the operation
• Power supply voltage matching (LHS-100CA is AC220V 50HZ)
• Regularly clean the stainless steel liner to maintain equipment performance
