Overview

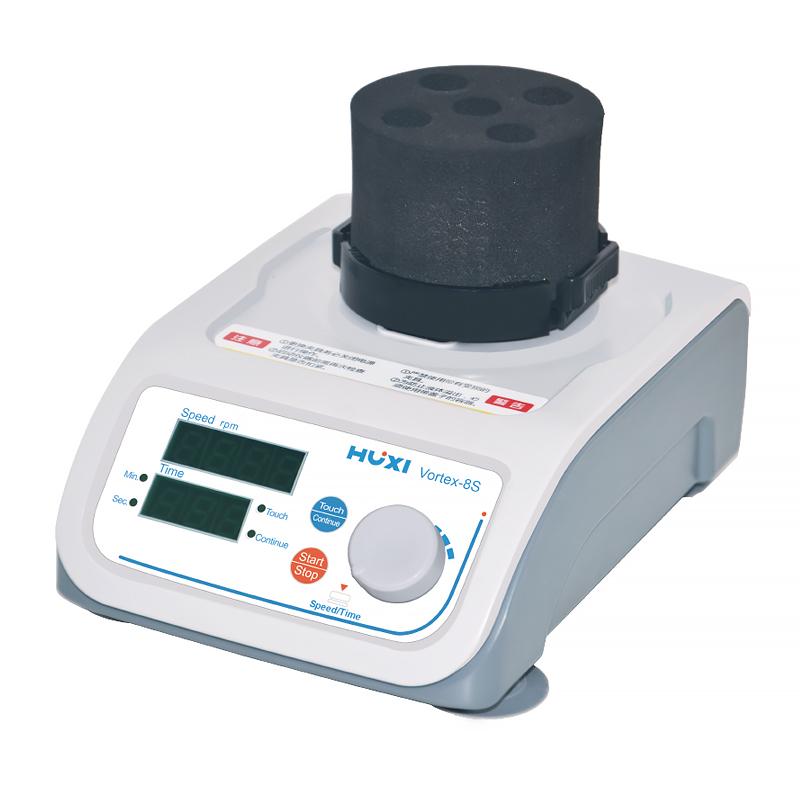

The Vortex-8S Multi-Purpose Vortex Mixer is a HUXI compact mixing machine with a smooth, beautiful appearance and strong construction. The instrument is highly versatile and easy to operate, suitable for routine experimental needs for fixing, shaking and mixing various reagents, solutions and chemicals.
Features
1. Adopt ST intelligent analysis and processing platform, equipped with fast processing chipset and electronic sensing technology, to achieve intelligent control of speed, time and working mode
2. Equipped with a wealth of fixture accessories to meet the needs of different capacity testtubes and plates to ensure the rapid progress of the experiment
3. Using high-efficiency permanent magnet rotor design, the motor is not easy to heat up and has over-temperature protection characteristics to ensure long-term trouble-free operation under high-speed mixing
4. Brushless design reduces running resistance, resulting in stronger operation and lower noise
5. Provide jog and continuous two safe operation modes, easy and simple to switch
6. Equipped with automatic fixture identification function, it can quickly identify the maximum speed of various fixtures to ensure safe use
7. The time function supports positive timing and countdown, making the experiment more convenient and accurate
Principle
Vortex-8S adopts DC24V permanent magnet brushless motor direct drive mode, and uses PWM stepless speed control technology implementation of circular oscillation. The instrument automatically recognizes the fixture and controls the speed through intelligent analysis and processing platform and electronic sensing technology, and performs mixing operation within the 4.5mm circumferential diameter range.
Applications
Reagent mixing, solution treatment, chemical mixing, laboratory routine oscillation treatment
Standards
Protection Rating IP20
Steps
1. Select jog press or continuous operation mode
2. Set the required speed range 200-3000rpm
3. Set the timing time 1S-999min (countdown or positive timing)
4. Place the sample and start the device
5. Monitor the running status until completion
Notice
• Allowable environment temperature is + 5~ 40 ℃
• relative humidity not more than 80%
• Maximum load is 1.5Kg.
• Make sure the fixture is properly installed and automatically identified before use
• Note that the Equipment Protection Rating is IP20 to avoid liquid entry
