Overview

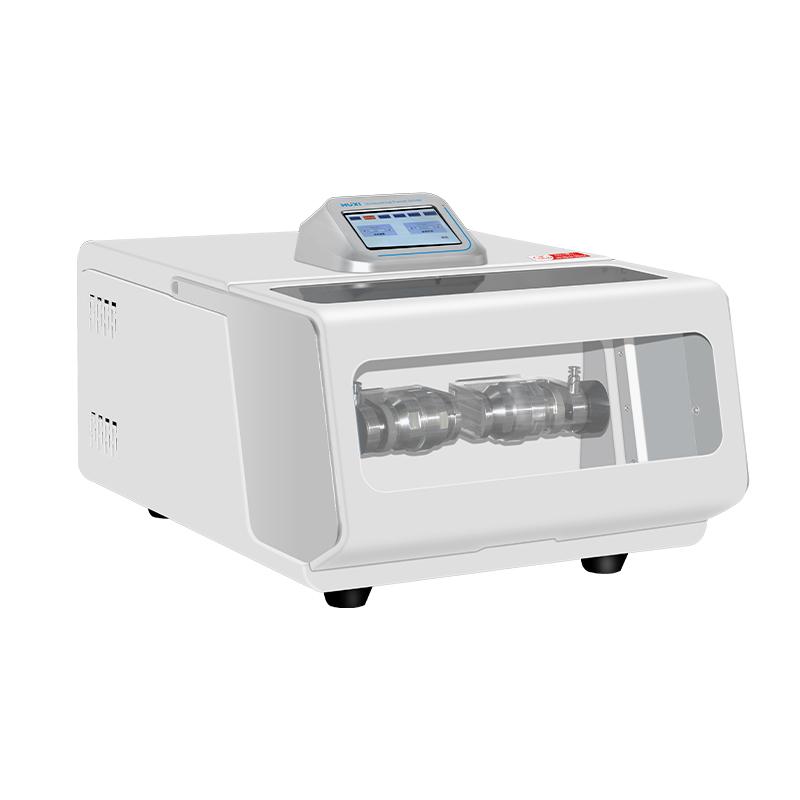

HMD-400 Multifunctional Freeze Grinding Instrument is HUXI brand fine grinding and fine grinding equipment specially designed for laboratory processing of hard, medium hard and brittle samples. The equipment is suitable for cereals, oil seeds, soil, Tobacco, wood, animal feed, cheese, fruit, bone, hair, plant and animal tissue, fertilizer, electronic waste, sludge, alloy, coal, ore, chemicals, plastics, Pottery and porcelain, Glass, DNA extraction and other samples.
Features
1. Adopt large-screen touch screen operation display, the operation settings are simple and easy to understand, and there is a memory function to store a variety of operation programs
2. Intelligent control, ground time controllable, time and speed can be set and displayed
3. High repeatability of ground results
4. Fast grinding and homogenization, short grinding time, can be used for XRF analysis of rapid sample prepative processing
5. Dual tank grinding and provides high throughput grinding for biological samples
6. A variety of different materials, volume grinding tank to choose from, a wide range of applications, no loss of wet grinding, can be tightened, sealing type grinding tank design
7. Comfortable low temperature grinding, can be used for heat sensitive materials without long freezing process, very little liquid nitrogen consumption
8. Crushing of animal and plant cell tissue or suspension cells, can handle more than 10 samples at a time
9. Low temperature grinding prevents molecular degradation due to pressure and heat
10. For most materials, it only takes tens of seconds to grind, mix and homogenize the sample
Principle
The device realizes the grinding and grinding of samples by vibrating grinding, the vibration speed range is 60-1800r/min, Frequency range is 1-30Hz. By controlling the grinding time and speed parameters, the fine processing of samples of different properties is realized, and various grinding methods such as dry grinding, wet grinding, low temperature grinding and high flux grinding are supported.
Applications
Cereals, Soil, Cheese, Pottery and porcelain, Plastics, Wood, Tobacco, Fruit
Steps
1. Set the grinding program parameters through the large screen touch screen
2. Select the appropriate grinding tank and adapter
3. Place the sample in the grinding tank
4. Set grinding time and speed parameters
5. Start the device for ground processing
6. Remove the sample after the grinding is completed
Notice
• Sample feed size should not exceed 8mm
• Choose the appropriate grinding method and grinding tank according to the nature of the sample
• Pay attention to the setting of the grinding time, the regular grinding time is 1-3 minutes
• Pay attention to the amount of liquid nitrogen used when using low temperature grinding
• The maximum batch processing capacity of the device is 2x20ml
• Make sure the grinding tank is tightened and sealed before grinding
• Select appropriate grinding parameters according to sample type
