Overview

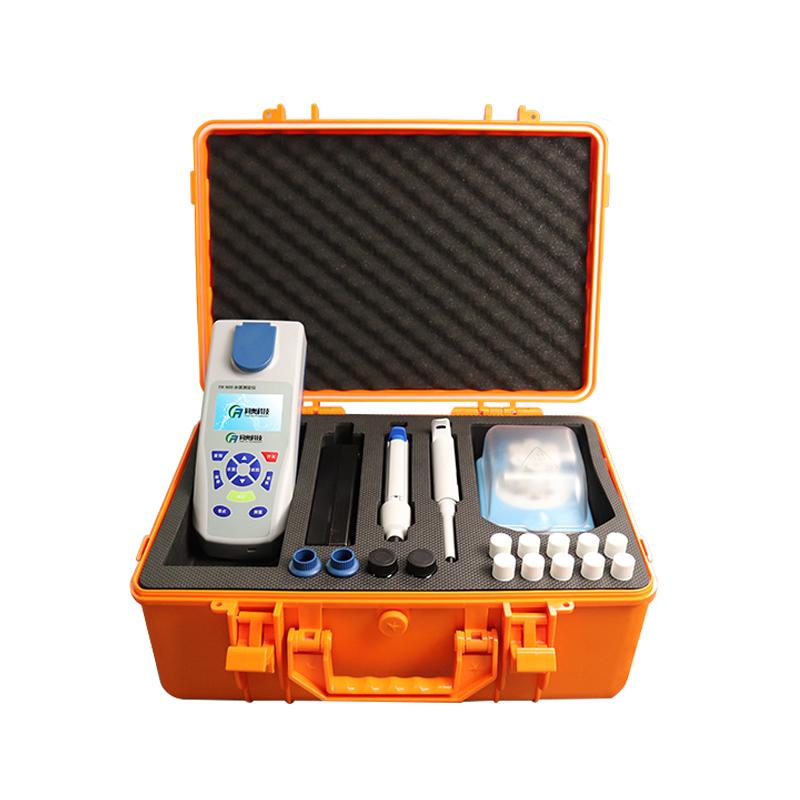

TR-208H COD ammonia nitrogen meter is a water quality testing instrument launched by TONGAO, which can simultaneously determine COD and ammonia nitrogen concentration in water. The instrument is based on HJ/T399-2007 "Water Quality, Determination of Chemical Oxygen Demand, Rapid Digestion Spectrophotometric method, spec-trophotometry" and HJ535-2009 "Water Quality, Determination of Ammonia Nitrogen, Spectrophotometric method, spec-trophotometry" standard research and development design, using imported cold light source and narrow-band interference technology, through Spectrophotometric method, spec-trophotometry to detect water sample Absorbance, directly display the concentration value after microcomputer processing, unit mg/L.
Features
1. Wide detection range: can expand dozens of detection parameters, support customization
2. Sensitivity: Minimum display value of 0.001mg/L
3. Light source advantages: imported cold light source, good Optical Property, no need to preheat, life 100,000 hours
4. Operation intelligence: Intelligent operating procedures guide users to complete the operation
5. Diversified test methods: Support standard measurement and continuous Measurement mode
6. Low cost of use: low price of consumables and low usage
7. Operation safety: Colorimetric integrated tube is used for safe and fast measurement
8. Large-screen LCD display, direct data reading, simple operation
9. Portable design: compact and lightweight, easy to carry
10. Data storage: 4000 sets of historical measurement data can be stored
11. A variety of power supply methods: built-in large-capacity lithium battery, support mobile power supply, car, 220V AC
12. Online function: support network port, USB, Bluetooth data transmission
13. Powerful software: supports Chinese and English display, built-in system programs and user programs, with data storage and power-off protection functions
Principle
The instrument is based on the principle of Spectrophotometric method, spec-trophotometry, and detects the Absorbance of each water sample at a specific light source wavelength through imported cold light source and narrow-band interference technology. After the data is automatically processed by the microcomputer, the COD and ammonia nitrogen concentration values of the sample are directly displayed. COD detection adopts rapid digestion Spectrophotometric method, spec-trophotometry, and ammonia nitrogen detection adopts Noll's reagent Spectrophotometric method, spec-trophotometry.
Applications
Emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing and other industries wastewater testing, R & D institutions, wastewater research in colleges and universities
Standards
HJ/T399-2007 "Water Quality, Determination of Chemical Oxygen Demand, Rapid Digestion Spectrophotometric method, spec-trophotometry", HJ535-2009 "Water Quality, Determination of Ammonia Nitrogen, Nessler Reagent Spectrophotometric method, spec-trophotometry"
Steps
1. Guide the sample preparation according to the intelligent operation procedure
2. Select Standard measurement or Continuous Measurement mode
3. Use digestion Colorimetric tube for determination
4. Read the concentration data displayed on the LCD screen
5. Data can be transferred via USB, LAN or Bluetooth
6. Optional Bluetooth printer to print historical data
Notice
• Please read the general precautions of the help interface carefully before operation
• Ensure that the environment temperature is within the range of 5~ 40 ° C
• Environment humidity should be ≤ 85% non-condensing
• Use the appropriate power supply method and pay attention to the battery power display
• Follow the reagent instructions correctly
• Perform regular instrument maintenance and inspections
• Pay attention to prevent accidental power outages when storing data
• Reliability of the method when the user can develop the program by himself
