Overview

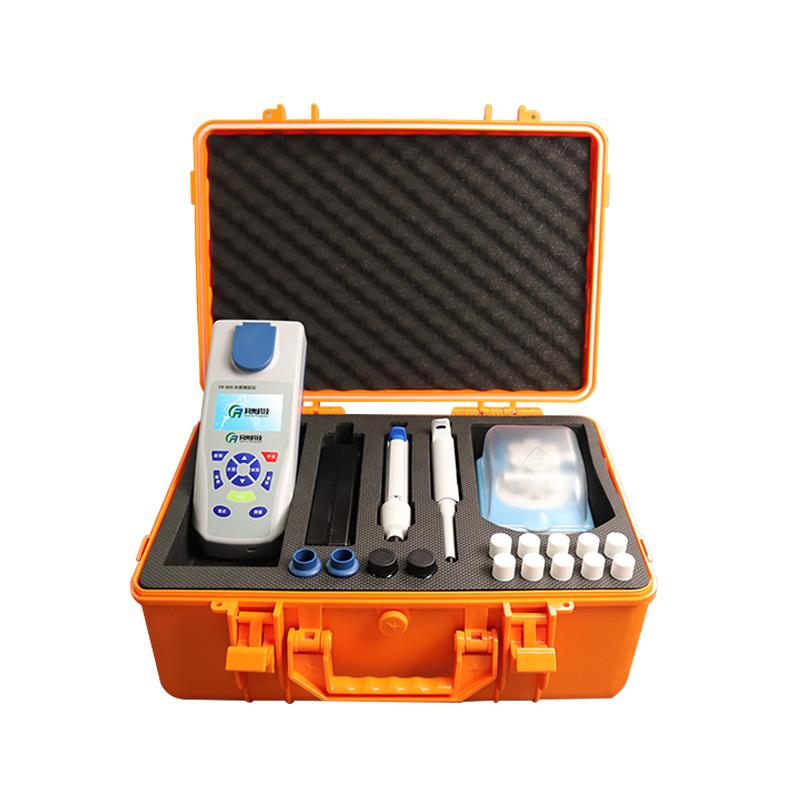

The TR-1800H rapid total nitrogen detector is based on the research and development design of the US EPA-certified chromogenic acid method. It converts various forms of nitrogen into nitrate through alkaline persulfate digestion, and then reacts with chromogenic acid to form yellow complexes. Absorbance is used to determine the total nitrogen content in water samples. The instrument adopts digestion Colorimetric integrated tube detection, which has the characteristics of small and portable, fast detection, simple operation and low cost. It is widely used in emergency monitoring, sewage treatment, chemical industry, food, printing and dyeing and other industries wastewater detection and scientific research and education institutions.
Features
1.Wide detection range, can expand dozens of parameters and customization
2. Sensitivity is high, the minimum display value is 0.001mg/L
3. Imported cold light source, good Optical Property, no need to preheat, life up to 100,000 hours
4. Intelligent operation program to guide users to complete the operation easily
5. Support standard measurement and continuous measurement modes
6. Low cost of use, low price of consumables and low usage
7. Colorimetric integrated tube, safe and simple operation
8. Large-screen LCD display, direct data reading, time-saving operation
9. Small and portable design, light weight, easy to carry
10. Supporting special detection reagents to reduce user operation steps
11. Support wireless Bluetooth printing historical data
12. can store 4000 sets of historical measurement data
13. Built-in large-capacity rechargeable lithium battery, power display, long standby
14. Support network port, USB, Bluetooth and other data transmission methods
15. Support Chinese and English display, friendly and intelligent interface
16. Built-in system programs and user programs to facilitate project management
17. With data storage and power failure protection functions
18. Built-in standard working procedures, no need for user calibrating
19. Support users to develop their own programs and reagents
20. Built-in help interface and factory reset function
Principle
The instrument is based on the principle of chromogenic acid method, and converts all forms of nitrogen into nitrate through the persulfate digestion process of alkaline. After digestion, sodium metasulfite is added to remove halogen oxidation substances, and then nitrate and chromogenic acid react in a strong acidic environment to form a yellow complex. Absorbance of the complex is measured to determine the total nitrogen content in the water sample.
Applications
Emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing, R & D institutions, colleges and universities
Standards
US EPA certification method - "Chromochromic Acid Act"
Steps
1. Prepare water samples and specialized testing reagents
2. Sample Handling Using Digestion Colorimetric Tubes
3. Select Standard measurement or Continuous Measurement mode
4. Guide to complete the measurement according to the intelligent operation procedure
5. Read the measurement data displayed on the LCD screen
6. You can choose to save the data or print it out via Bluetooth
Notice
• Please read the general precautions in the help interface carefully before operation
• Ensure that the environment temperature is used within the range of 5~ 40 ° C
• environment humidity should be ≤ 85% and no condensation
• Use special detection reagents to ensure measurement accuracy
• Regularly check the battery power to ensure the normal power supply of the device
• Pay attention to prevent accidental power outages when storing data
• Reliability of the method when users develop their own programs
