Overview

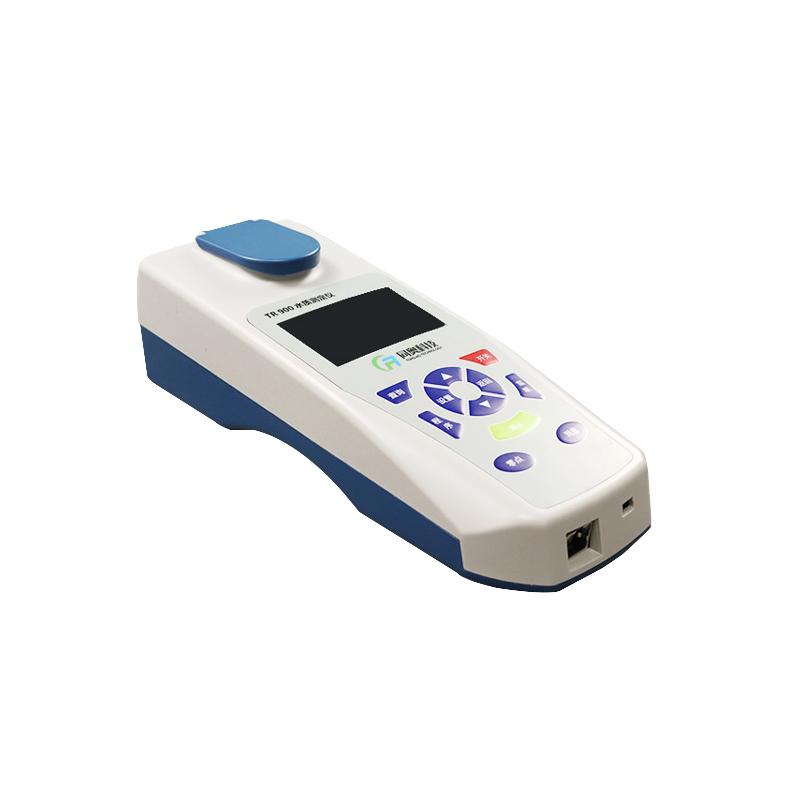

TR-740H type water quality nickel meter based on the national standard GB11910-89 "water quality, nickel determination, butanedione oxime Spectrophotometric method, spec-trophotometry" R & D design, by nickel ions in ammonia or alkaline solution with Color developing reagent, chromogenic agent reaction to form a complex, using imported cold light source and Spectrophotometric method, spec-trophotometry detection Absorbance, microcomputer automatic processing data directly display nickel concentration value (mg/L). The matching finished reagent makes the detection simple, fast, accurate and safe, the instrument is small, the detection is fast, the operation is simple and the cost is low, and it is widely used in emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing industry wastewater detection and R & D institutions, wastewater research in colleges and universities.
Features
1. Wide detection range: Dozens of detection parameters can be expanded, customized according to needs, and better resource utilization.
2. Sensitivity: the minimum display value can reach 0.001mg/L.
3. Light source advantages: imported cold light source, Optical Property is better, no need to preheat, life up to 100,000 hours.
4. Operation intelligence: Intelligent operating procedures that guide users to easily complete the operation.
5. Diversification of test methods: Standard measurement or Continuous Measurement mode can be selected, freely choosing between rapidity and accuracy.
6. Low cost of use: low price of consumables and low usage.
7. Safe operation: Colorimetric digestion tube is used for simple, fast and safe determination.
8. Large-screen LCD display, direct data reading, simple and time-saving operation.

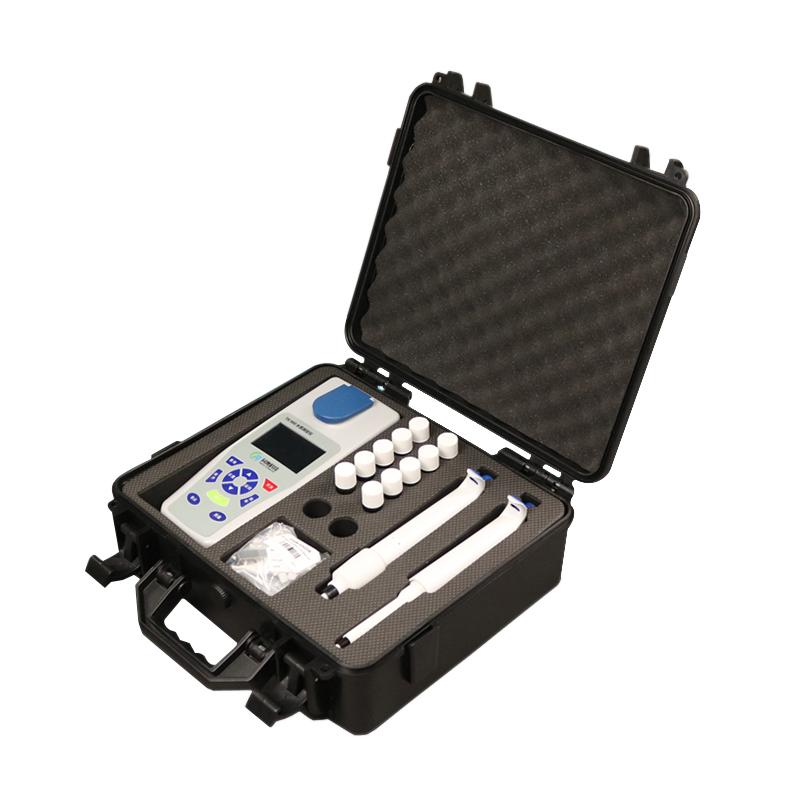

9. Emergency detection advantages: compact design, box configuration, light weight, easy to carry; supporting special detection reagents to reduce user operation; support wireless Bluetooth printing historical data; can store 4000 sets of data; built-in large-capacity rechargeable lithium battery, remaining power display, low power consumption, long standby, digestion instrument supports mobile power supply, vehicle, 220V AC power supply.
10. Online operation function: Support network port, USB interface, Bluetooth, and can transfer data with PC or printer.
11. Software advantages: support Chinese/English display; built-in system programs and user programs, easy to find frequent test items; data storage and power-off protection functions to prevent data loss; built-in standard working procedures, no need for user calibration and calibrate; users can develop their own programs and reagents; built-in help interface; one-click factory reset function.
Principle
Nickel ions are first oxidized into tetravalent in ammonia or alkaline solution, and then react with Color developing reagent, chromogenic agent to form a complex, through imported cold light source, narrowband interference technology, Spectrophotometric method, spectra-trophotometry detection sample Absorbance at a specific light source wavelength, and then after microcomputer automatic processing data, directly display the sample nickel concentration value, expressed in mg/L.
Applications
Emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing, R & D institutions, colleges and universities
Standards
GB11910-89 "Water quality, determination of nickel, butanedione oxime Spectrophotometric method, spec-trophotometry"
Steps
1. Intelligent operating procedures guide users to easily complete the operation.
2. Select Standard measurement or Continuous Measurement mode.
3. Use digestion Colorimetric tube for determination.
4. Data is read directly and automatically stored.
Notice
• The instrument design is small and easy to carry, but it should be noted that the environment temperature is 5~ 40 ° C and the environment humidity is ≤ 85% without condensation.
• Use matching specialized detection reagents to reduce operating errors.
• Built-in large-capacity rechargeable lithium battery, pay attention to the remaining power display to ensure stable power supply.
• Data storage and power outage protection features prevent data loss, but regular backups are recommended.
Users can develop their own procedures and reagents, but they must adhere to relevant safety regulations.
• The built-in help interface provides general precautions, please consult before operation.
