Overview

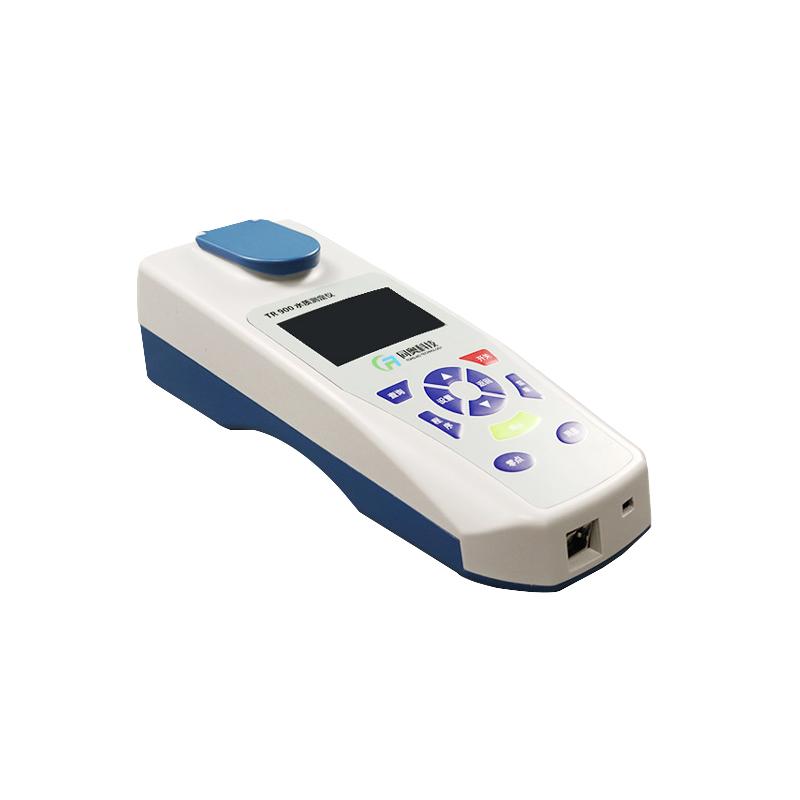

TR-116H type water quality manganese tester is developed and designed based on GB11906-89 standard, adopts imported cold light source and narrow-band interference technology, detects sample Absorbance through Spectrophotometric method, spectra-trophotometry, and directly displays manganese concentration (mg/L) after microcomputer treatment. The matching finished reagent makes the detection simple, fast, accurate and safe. It has the characteristics of small Appearance, rapid detection, simple operation and low cost. It is widely used in emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing and other industries Wastewater detection and R & D institutions, colleges and universities research.
Features
1. Wide detection range: can expand dozens of detection parameters, support customization.
2. Sensitivity: the minimum display value is 0.001mg/L.
3. Light source advantages: imported cold light source, good Optical Property, no need to preheat, life 100,000 hours.
4. Operation intelligence: Intelligent operation programs guide users to complete it easily.
5. Diversified test methods: Support standard measurement or continuous Measurement mode.
6. Low cost of use: low price of consumables and low usage.
7. Safe operation: Colorimetric digestion tube is used for simple, fast and safe determination.
8. Large-screen LCD display: direct reading of data, simple and time-saving operation.

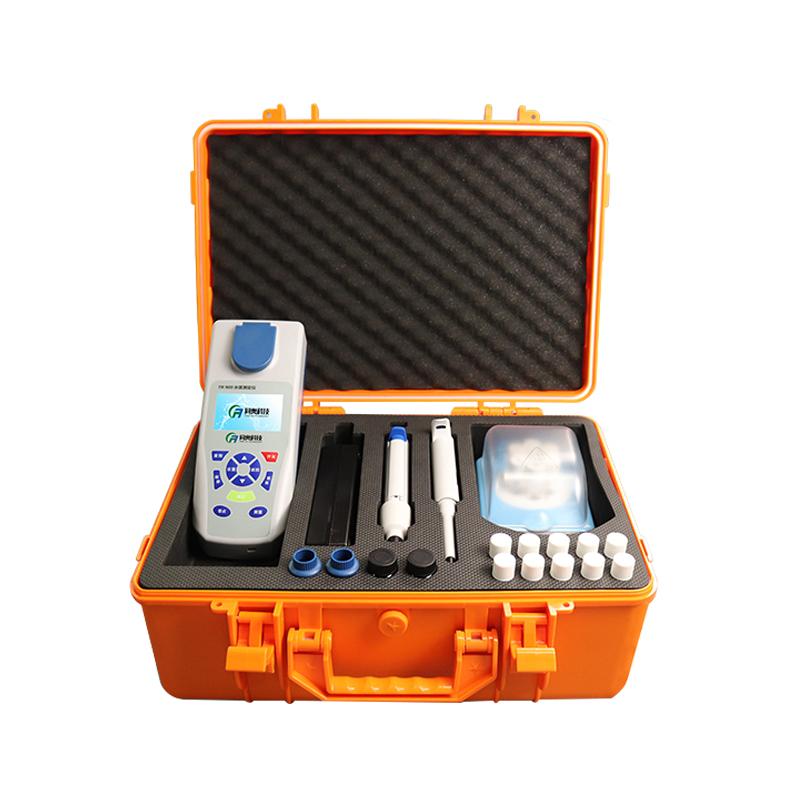

9. Emergency detection advantages: compact and portable, with special reagents to reduce operation, support wireless Bluetooth printing, can store 4000 sets of data, and built-in large-capacity rechargeable lithium battery.
10. Online function: Support network port, USB, Bluetooth and PC or printer data transmission.
11. Software advantages: Chinese and English display, built-in system/user programs, data storage and power-off protection, built-in standard working procedures without calibration, user-developed programs and reagents, help interface, one-click factory reset.
Principle
The instrument is based on Spectrophotometric method, spectra-trophotometry, using imported cold light source and narrowband interferometry to detect the Absorbance of the sample at a specific light source wavelength, and the data is automatically processed by a microcomputer to directly display the manganese concentration value.
Applications
Emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing, R & D institutions, colleges and universities
Steps
1. The intelligent operation program guides the user to complete the operation.
2. Select Standard measurement or Continuous Measurement mode.
3. Use digestion Colorimetric tube for determination.
4. Data is automatically processed and displayed on the LCD screen.
5. Optional Bluetooth printer to print historical data.
Notice
• Read the help interface for general precautions before operation.
• Ensure that the environment temperature is 5~ 40 ℃, humidity ≤ 85% without condensation.
• Use matching specialized reagents to reduce operating errors.
• Pay attention to the remaining battery power display and charge it in time.
Data storage has a power-off protection function, but it still needs to be backed up regularly.
• Users need to adapt to different water conditions when developing their own programs and reagents.
