Overview

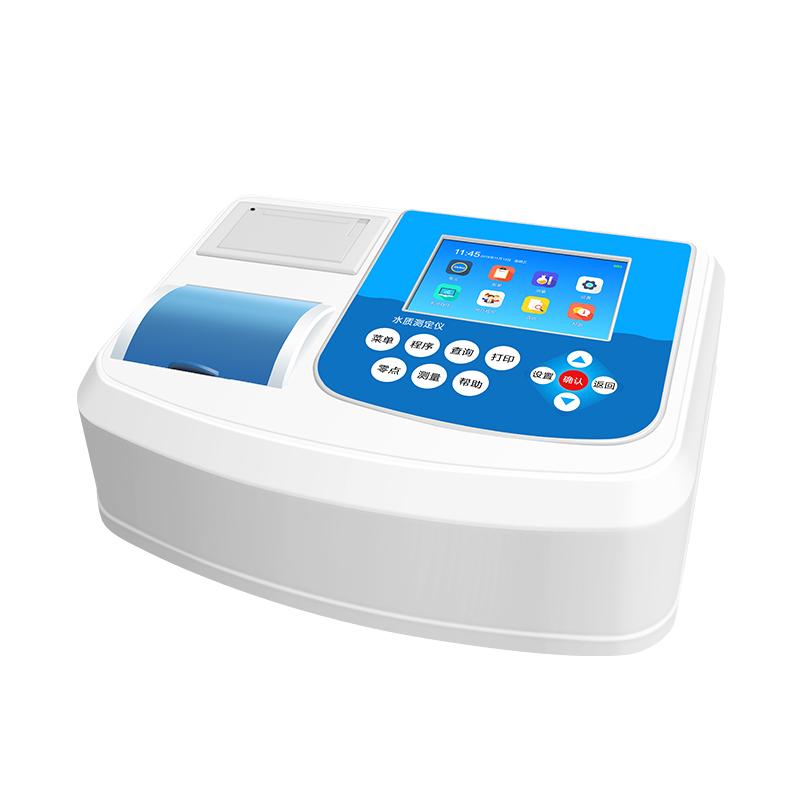

TR 6900N desktop STIP-scan is a professional equipment launched by TONGAO, which can quickly determine the total nitrogen value in water. It integrates mature technology in the field of water quality analysis, so that the entire analysis system is more complete, the operation is simple and fast, and the detection results are stable and reliable. Widely used in emergency monitoring, industrial wastewater, domestic sewage, sewage treatment, chemical industry, food, beverage, Spinning & weaving printing and dyeing, Eletroplating, papermaking, petroleum metallurgy, river treatment, R & D institutions, colleges and universities and other fields.
Features
1. Adopt digestion Colorimetric integrated tube design, digestion and Colorimetric share a reaction tube, no need to transfer liquid.
2. Display the detection results directly, and convert Absorbance to concentration value through a specific algorithm.
3. Support multiple measurements and automatically remove abnormal values to reduce external factors.
4. It has the function of detecting abnormal prompts, such as blank comparison and over-range prompts.
5. Built-in thermal printer and 5-inch high-definition color LCD screen.
6. Large data storage capacity, can save 30,000 records.
7. Supports batch processing, each batch can handle 16 or 25 water samples.
8. The operation interface supports membrane buttons, which can be selected in Chinese or English.
Principle
The instrument uses a digestion Colorimetric integrated tube for operation. The digestion and result reading of the sample share a reaction tube, without the need to transfer the liquid to the Colorimetric dish. Absorbance measurement of the sample through a cold light source of a specific wavelength, the system directly converts the detection result into the sample concentration value through a specific algorithm. Water samples are measured 10 times or more, and the average value is taken after removing the abnormal value to reduce the influence of dirt, scratches, fingerprints or defective glass tubes on the results. It also prompts the detection of abnormalities such as blank contrast and overrange limit.
Applications
Emergency monitoring, industrial wastewater, domestic sewage, sewage treatment, chemical industry, food, beverage, Spinning & weaving printing and dyeing, Eletroplating, papermaking, petroleum metallurgy, river treatment, R & D institutions, colleges and universities
Steps
1. Prepare the sample and digest it using a Colorimetric tube.
2. Put the reaction tube into the instrument for Absorbance measurement.
3. The instrument automatically performs multiple measurements and removes abnormal values.
4. The system calculates the average value and directly displays the concentration results.
5. If there is any abnormality, the instrument will prompt blank comparison or over-range information.
6. Optional to print test reports or export data through the interface.
Notice
• Make sure to use a qualified digestion Colorimetric tube to avoid dirt, scratches or fingerprints affecting the results.
• Note that the digestion environment temperature is 125 ° C and the time is 30 minutes.
• The detection range is 0~ 250mg/L, and the instrument will prompt when the range is exceeded.
• The operating environment humidity does not exceed 85% without condensation, and the temperature is between 5 and 40 ° C.
• Power supply mode is AC 220V +/- 10%, 50Hz to ensure stable power supply.
• Stability of Optical inspection system to maintain Measurement accuracy.
