Overview

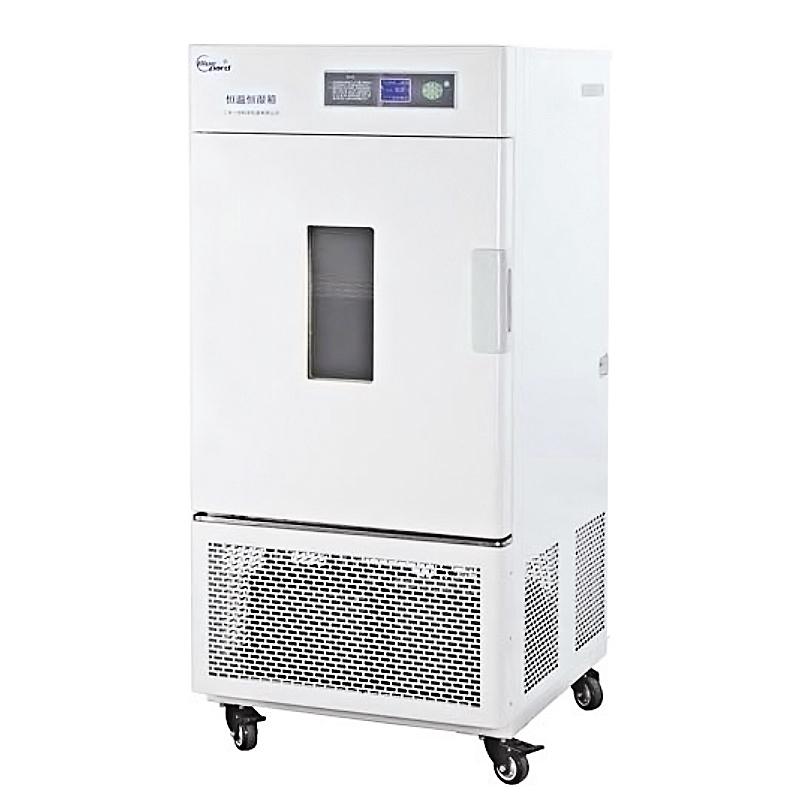

The LHS-150SC Constant Temperature and Humidity Chamber is a simple Constant Temperature and Humidity Chamber of the YIHENG brand. It adopts a mirror stainless steel liner and a four-corner half-arc design, which has the advantages of anti-corrosion and easy cleaning. The input Power is 550W, and the Temperature range is 15~ 45 ℃/humidification mode or 10~ 45 ℃ no humidification mode. Optional RS485 interface is connected to the PC to record the temperature and Humidity parameters.
Features
1. Adopt fluorine-free design
2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable
3. Use Humidity Sensor and Microcomputer Temperature Humidity Controller to control temperature and humidity accurately and reliably
4. Equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional)
5. Can be equipped with RS485 interface to connect to the computer to record changes in temperature and Humidity parameters, but cannot be connected to the printer (optional)
6. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and testing (optional).
Principle
The Constant Temperature and Humidity Chamber precisely adjusts the environment in the box through a microcomputer temperature Humidity controller, and uses Humidity Sensor to monitor Humidity to achieve stable temperature and Humidity control. Optional independent temperature limiting alarm system automatically interrupts operation when it exceeds temperature to ensure safety.
Applications
Constant temperature and humidity test, environment test
Steps
1. Connect power supply AC220V 50HZ
2. Set Required Temperature and Humidity Parameters
3. Start the equipment for constant temperature and humidity operation
4. Optional RS485 interface to connect to computer to record data
5. Turn off the device after the experiment
Notice
• Independent temperature limit alarm system, RS485 interface, and test hole are all optional accessories, which need to be purchased separately.
• This model is simple and cannot be equipped with an optional printer.
• Humidity fluctuates greatly and cannot operate for a long time
• Ambient Temperature within 5~ 35 ℃
• Continuous Operating Time of not less than 180 hours
