Overview

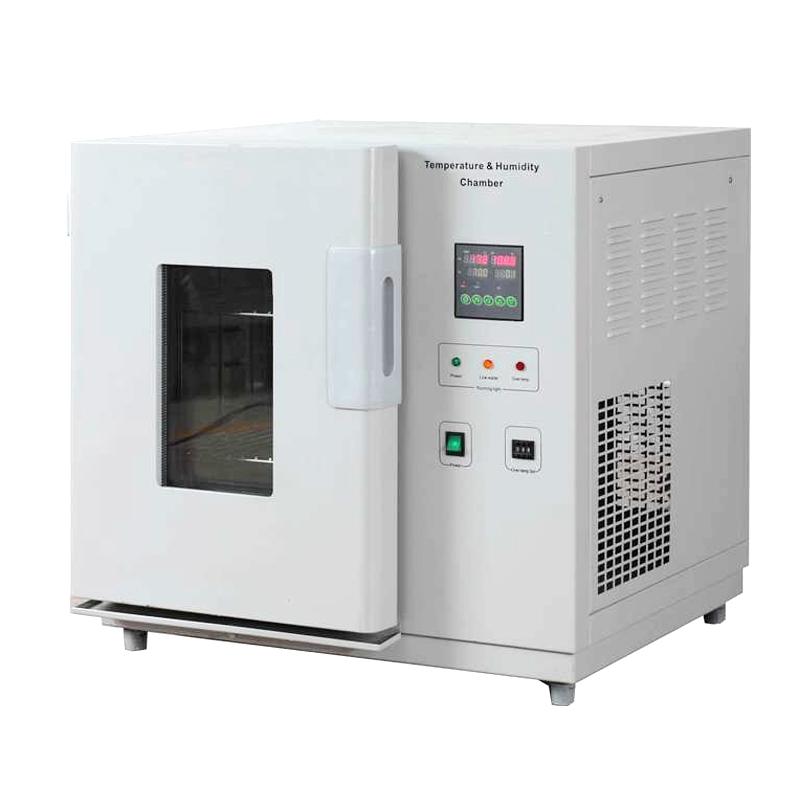

YIHENG LHS-50CL Constant Temperature and Humidity Chamber uses fluorine-free design and mirror stainless steel liner, equipped with microcomputer temperature Humidity controller to ensure stable and reliable temperature and humidity control. Temperature range is -10~ 85 ℃, Temperature resolution 0.1 ℃, input Power 1900W, standard two shelves.
Features
1. Adopt a new fluorine-free design
2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable
3. Microcomputer temperature Humidity controller, using TMHM equilibrate Conditioning method, stable operation and accurate and reliable temperature and humidity control, key components such as controllers and Compressors are imported products
4. Equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safety of the experiment
5. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and Measuring temperature
6. Can be equipped with recorder to record temperature Humidity Linear dispersion (optional)
Principle
Humidity controller and TMHM equilibrating conditioning method are adopted to ensure the stability and reliability of the environment in the box by precisely controlling temperature and Humidity.
Applications
Spinning & weaving, Food processing and other aseptic tests, Stability inspection, Raw material performance testing of industrial products, Encasement testing, product life testing
Steps
1. Connect the power supply and ensure that the working Ambient Temperature is within the range of 5~ 30 ℃
2. Set the required temperature and Humidity parameters through the microcomputer temperature and Humidity controller
3. Place the sample on the shelf and adjust the shelf spacing
4. Start Equipment Operation, Monitor Temperature and Humidity Changes
5. Use the test hole on the left side of the box for experimental operation and temperature measurement
6. Optional recorder to record running Linear dispersion
Notice
• Power supply voltage AC220V 50HZ
• Ambient Temperature should be kept at 5~ 30 ℃
• When the temperature limit is exceeded, the independent temperature limit alarm system will automatically interrupt the operation to ensure safety
• Pay attention to mirror stainless steel liner and four corners and half arc structure when cleaning
• Optional recorder requires additional configuration
