Overview

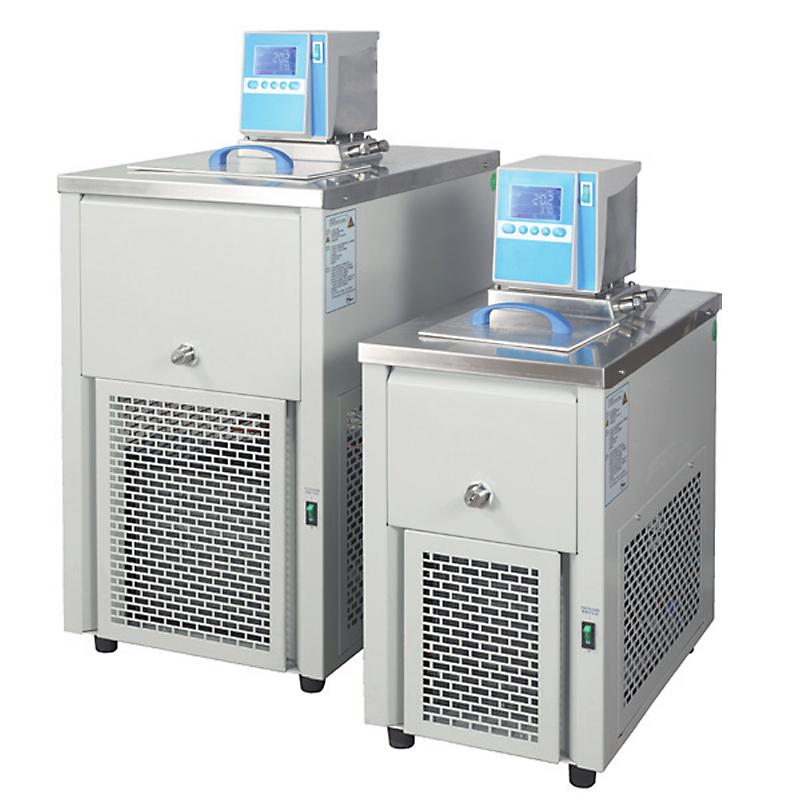

YIHENG MP-20C low temperature circulating water tank is a refrigeration and heating circulating tank controlled by intelligent microcomputer. Temperature range is -20~ 100 ℃, and the filling volume is 4.5L. The equipment is equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral tank. Heating power is 2250W, temperature control accuracy is +/- 0.2 ℃.
Features
1. Intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure reliable protection of samples.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4. Equipped with a connecting port for external baths.
Convenient data processing (optional): Can be connected to a printer, 485 Communication interface or USB data transfer interface (U disk), use a computer and printer to record temperature and time Linear dispersion.
6, multi-stage programmable liquid crystal controller (optional): microcomputer program control temperature, time and heating rate, can be preset 15 30 steps can be programmed, each set time 1-99 hours 59 minutes, circulating pump Rotation speed adjustable.
Principle
The device controls the temperature, time and heating rate through a microcomputer program, adopts internal/external circulation mode, and uses a strong pressure suction pump to provide a thermostatic source for the peripheral tank to achieve rapid thermostatic test.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Notice
• Increase the delivery period of optional parts by 7 days
• Multi-stage programmable LCD controller is an optional function
• German Julabo controller ED, MB are optional functions
