Overview

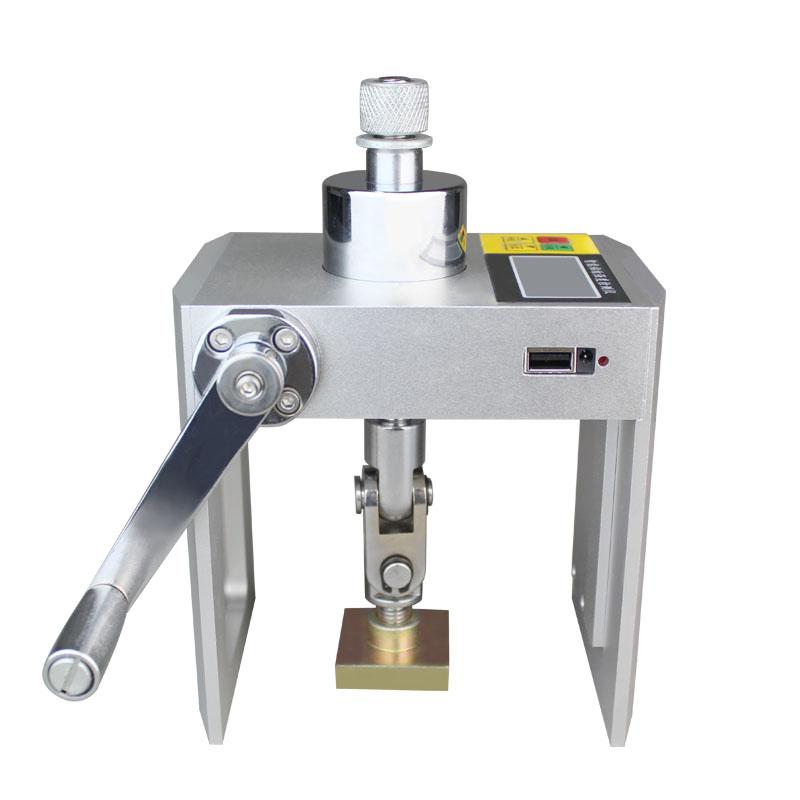

KS-6000C intelligent Bond strength tester is a portable hydraulic jack of KOSON brand. It adopts an integrated structure design of pressurizing device and hollow jack, which is easy to carry and test. The main body of the instrument is ultra-light and weighs only 2.0kg. The display instrument is integrated with the main body. There is no need to connect the instrument. It can be directly measured when turned on. The instrument display unit can be converted between KN and MPA, making on-site testing more convenient and fast.
Features
1. Portable integrated structure design, easy to carry and test
2. The ultra-light body weighs only 2.0kg.
3. The display instrument is integrated with the main body of the instrument, no need to connect the instrument
4. Boot direct measurement, easy to operate
5. Instrument display units can be converted between KN and MPA
6. High Accuracy Bond Strength Testing
Principle
The working principle of the portable hydraulic jack is adopted, and the bonding strength is detected through the integrated structure of the pressurizing device and the hollow jack. The integrated design of the instrument and the main body directly displays the measurement results.
Applications
Testing of bond strength of veneer tiles, mosaics, various plates, paints, coatings, exterior insulation materials (EPS board, SPS board), various exterior building materials, and adhesives
Standards
JGJ 110-2017 "construction engineering veneer brick bond strength inspection standard", JGJ 126-2015 "exterior veneer brick engineering construction and acceptance regulations", JGJ 144-2019 "exterior exterior insulation engineering technical regulations", JG/T 158-2013 "rubber powder polystyrene particles exterior exterior insulation system", JG 149-2003 "expanded polystyrene particles thin plastering exterior exterior insulation system", GB 50550-2010 "building structure reinforcement engineering construction mass acceptance code"
Steps
1. Boot direct measurement
2. Convert KN and MPA display units as needed
3. Conduct bond strength testing
Notice
• Ensure that the instrument is used within the range of 0~ 6.000KN/3.75Mpa
• Note that the stroke of the hollow cylinder is 10mm
• Regularly check the battery level and use high-capacity lithium batteries
• Keep the instrument properly to avoid collision damage
