Overview

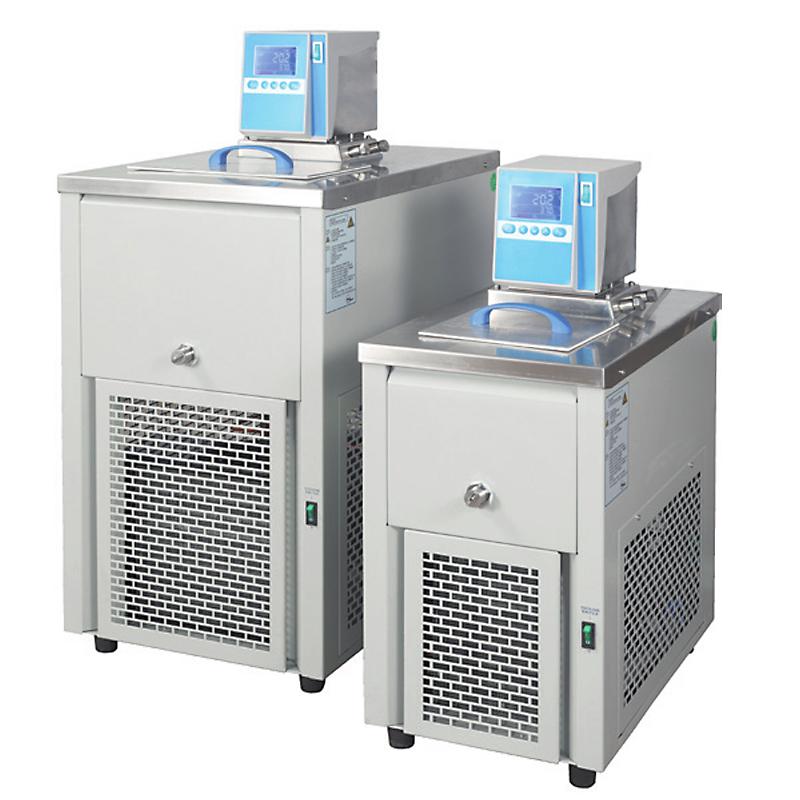

MP-30C thermostatic water bath is a low temperature circulating water bath of YIHENG brand. The filling volume is 4.5L, the applicable Temperature range is -30~ 100 ℃, and the Heating power is 2850W. The product adopts imported Compressor, circulating pump, heating device and other key components to ensure stable and reliable operation.
Features
1, intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, key components using imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure sample safety.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4. Equipped with an external bath connector.
5. Optional data processing function, support connecting printer, 485 Communication interface or USB data transfer interface, record temperature and time Linear dispersion.
6. Optional multi-segment programmable LCD controller, supports preset 15-segment 30-step program, each setting time is 1-99 hours 59 minutes, and the circulating pump Rotation speed is adjustable.
Principle
MP-30C thermostatic water bath is controlled by microcomputer program temperature and time, using internal/external circulation mode, combined with imported Compressor and heating device to achieve accurate cooling and heating, to ensure uniform and stable temperature.
Applications
Petroleum, Chemical, Life Science, Measurement, Light Industry, Scientific Research
Steps
1. Connect the power supply and turn on the device.
2. Set the required temperature and time parameters.
3, start the circulation pump and heating/cooling system.
4. Monitor the operating status to ensure that there is no alarm.
5. After use, turn off the device and disconnect the power supply.
Notice
• Check the liquid level before use to avoid dry burning.
• Power supply voltage AC220V 50HZ.
• Pay attention to ultra-mild and low temperature alarms and deal with abnormalities in a timely manner.
• Pay attention to the weight when handling, Net weight 44Kg.
• The delivery period may be extended by 7 days when the purchase is increased.
