Overview

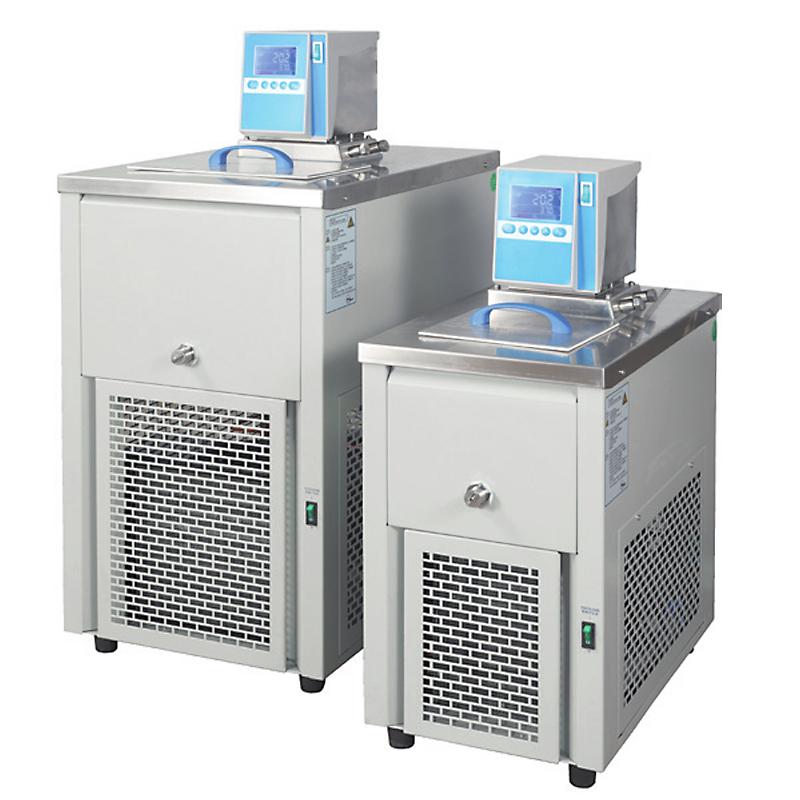

The MPG-40C Benchtop thermostatic water bath is a dual-function refrigeration and heating thermostatic circulation tank of YIHENG brand. Temperature range is -40~ 100 ℃, Heating power is 3100W, and it is equipped with a powerful pressure suction pump. The key components of this water bath are imported products to ensure stable operation and accurate temperature control.
Features
1. Intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, Compressor, circulating pump and heating device and other key components are imported products.
2. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure reliable protection of samples.
3. Equipped with a strong pressure suction pump to provide a thermostatic source for the peripheral groove.
4. Equipped with a connecting port for external baths.
Convenient data processing (optional): Can be connected to a printer, 485 Communication interface or USB data transfer interface (U disk), use a computer and printer to record temperature and time Linear dispersion.
6, multi-stage programmable liquid crystal controller (optional): can be preset 15 segments 30 steps programmable, each setting time 1-99 hours 59 minutes, circulating pump Rotation speed adjustable; microcomputer program control temperature, time and heating rate, at a very fast speed thermostatic test.
Principle
Microcomputer PID Control mode for precise temperature regulation via internal/external circulation system, combined with cooling and heating functions. Equipped with a powerful pressure suction pump, it provides a thermostatic source for external equipment to ensure temperature stability within the set range.
Applications
Laboratory thermostatic test, sample temperature control, peripheral groove thermostatic source
Steps
1. Connect the power supply to AC220V 50HZ.
2. Set the required Temperature range -40~ 100 ℃.
3. Start the device, and the microcomputer controller automatically adjusts the temperature.
4. Optional connection to a printer or computer for data recording.
5. Turn off the power after use.
Notice
• Pay attention to the over-temperature and low temperature alarm functions to ensure sample safety.
• Check whether the liquid level protection function is normal before use.
• The purchase of optional accessories requires an additional delivery period of 7 days.
• Power supply voltage matching AC220V 50HZ.
