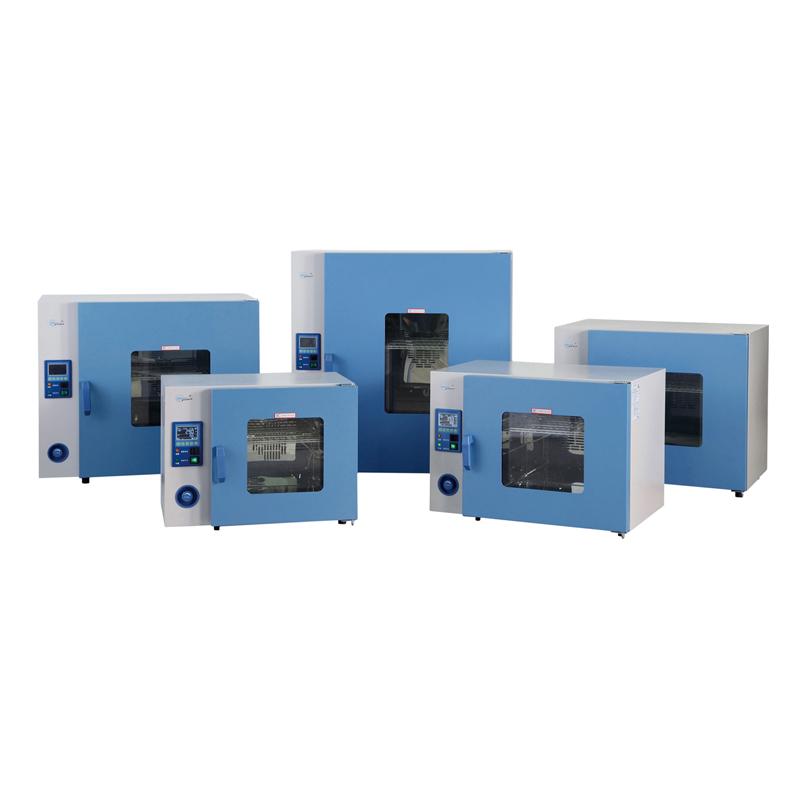

YIHENG PH-010 (A) Drying Oven Incubator dual-use box, forced warm air circulation 0.1 ℃ resolution

Name: YIHENG PH-010 (A) Drying Oven Incubator dual-use box, forced warm air circulation 0.1 ℃ resolution
Brand: YiHeng
SKU: NB004085
Price: 452.0 USD
Availability: InStock

$ 452.00Ex works

Using forced warm air circulation to ensure uniform temperature, Temperature resolution of 0.1 ℃, equipped with microcomputer LCD controller temperature control is accurate, mirror stainless steel liner is easy to clean, the door opens automatically stop heating.

Model

PH-010(A)

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB004085

Service :The delivery and service By NBCLab.Com

Overview

YIHENG PH-010 (A) drying oven/incubator is a drying and foster dual-use box with forced warm air circulation design to ensure uniform temperature in the studio. The input Power is 650W and the Temperature resolution is 0.1 ℃.

Features

1. Microcomputer LCD display controller, accurate and reliable temperature control. 2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable. 3. Forced warm air circulation design ensures uniform temperature in the studio. 4, the use of silicone rubber sealing strip and double-decked Glass door observation window, easy to observe. 5, when the door is opened, microcirculation and heating automatically stop, no temperature overshoot.

Principle

Forced warm air circulation design is adopted to ensure uniform temperature distribution in the studio.

Applications

Universities & colleges, research, production

Steps

1. Connect the power supply to AC 220V 50Hz. Temperature range: foster mode RT + 5~ 80 ℃ or drying mode 80~ 220 ℃. 3. Adjust Temperature resolution to 0.1 ℃. 4. Set Timer Range 1~ 5999min. 5. Adjust the shelf spacing as needed.

Notice

• Ambient Temperature should be maintained at RT + 5~ 35 ℃. • Microcirculation and heating stop automatically when the door is opened. • Pay attention to Temperature Fluctuation and Uniformity indicators. • Power supply voltage matching check before use. • Regularly clean the mirror stainless steel liner.

Power supply Voltage
AC 220V 50Hz
Temperature Range
Foster: RT + 5~ 80℃; drying: 80~ 220℃
Temperature resolution
0.1℃
Temperature Fluctuation
A.±0.5℃；B.±1℃
Temperature Uniformity
±3%
Operating temperature
RT+5~35℃
Input Power
650W
Inner chamber dimensions
250*260*250mm
Dimension
530*480*420mm
shelf (std.)
2pcs
Timer Range
1~5999min
Net weight
28kg
gross weight
33kg
Packaging Dimensions
760*610*580mm
