Overview

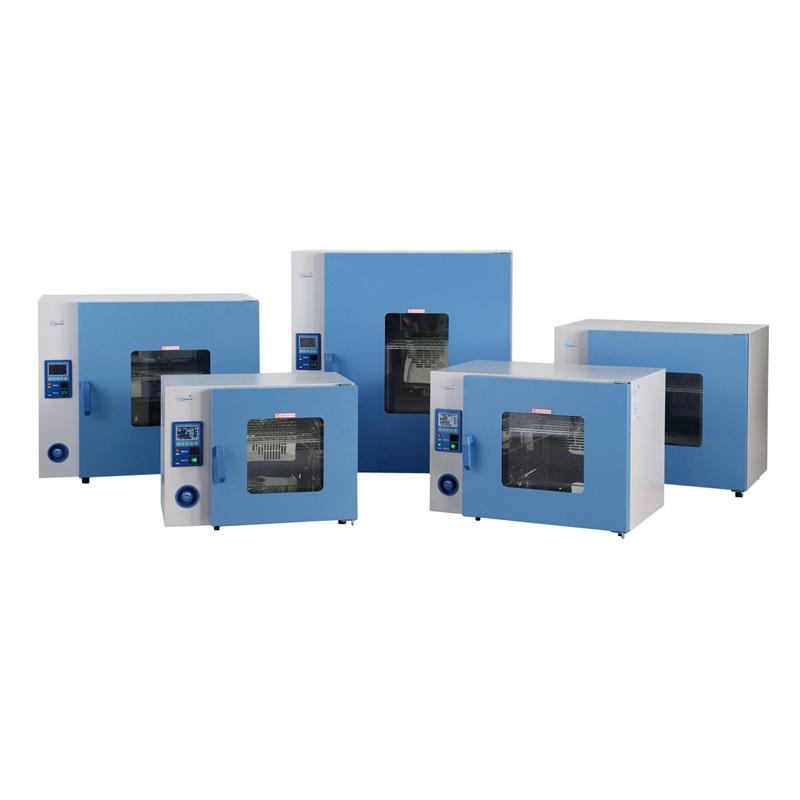

PH-030 (A) drying oven (dual-use) is a new generation of PH series drying/baking dual-use box from YIHENG, which is produced by borrowing foreign professional technology. The input Power of this product is 850W, and the Temperature range is RT + 5~ 80 ℃ (incubator mode) and 80~ 220 ℃ (drying oven mode).
Features
1. Microcomputer LCD display controller, accurate and reliable temperature control
2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable
3. Forced warm air circulation design to ensure uniform temperature in the studio
4, the use of silicone rubber sealing strip and double-decked Glass door observation window, easy to observe
5, when the door is opened, microcirculation and heating automatically stop, no temperature overshoot
Principle
The product adopts a forced warm air circulation design, and the temperature is precisely controlled by a microcomputer controller to ensure uniform temperature distribution in the studio. When the box door is opened, the microcirculation and heating system automatically stop working to avoid temperature fluctuations.
Applications
Universities & colleges, research, production
Steps
1. Connect the AC 220V 50Hz power supply
2. Select Operating Mode (incubator or drying oven)
3. Set the required Temperature range
4. Set Timer Range (1~ 5999min)
5. Start the device and start working
Notice
• Working Ambient Temperature should be kept within the range of RT + 5~ 35 ℃
When the box door is opened, the equipment will automatically stop heating and microcirculation
• Power supply voltage is AC 220V 50Hz
• Net weight 27kg, be careful when handling
• Regularly clean the mirror stainless steel liner to maintain hygiene
