Overview

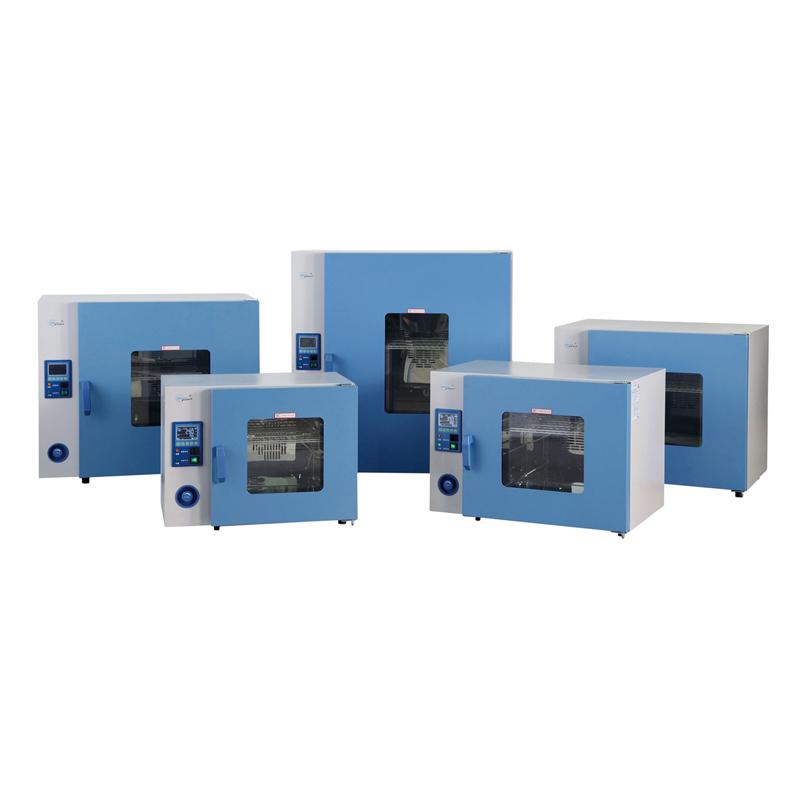

PH-070 (A) drying/foster dual-use box is a YIHENG brand product, using mirror stainless steel liner, with good corrosion resistance, LCD screen can directly observe the temperature data. The product input Power is 1550W, Temperature range is RT + 5~ 80 ℃ (incubator) and 80~ 220 ℃ (drying oven), Temperature resolution is 0.1 ℃.
Features
1. Microcomputer LCD display controller, accurate and reliable temperature control.
2. Mirror stainless steel liner, four corners and half arcs are easy to clean, and the shelf spacing in the box is adjustable.
3. Forced warm air circulation design ensures uniform temperature in the studio.
4, the use of silicone rubber sealing strip and double-decked Glass door observation window, easy to observe.
5, when the door is opened, microcirculation and heating automatically stop, no temperature overshoot.
Principle
The product precisely controls the temperature through a microcomputer LCD display controller, and adopts a forced warm air circulation design to ensure uniform temperature in the studio. When the box door is opened, the microcirculation and heating automatically stop to prevent temperature overshoot.
Applications
Universities & colleges, research, production
Steps
1. Turn on the power supply and set the desired temperature mode (foster or drying).
2. Adjust the temperature parameters through the LCD display.
3, according to the need to adjust the shelf spacing.
4. Start the equipment and monitor the temperature data.
5. Turn off the power after use.
Notice
• Ambient Temperature should be kept in the range of RT + 5~ 35 ℃.
• When the box door is opened, the equipment automatically stops heating and circulation, please do not open the door for a long time.
• Regularly clean mirror stainless steel liner to maintain performance.
• Power supply voltage is AC 220V 50Hz before use.
• Avoid operating equipment outside the Temperature range.
