Overview
TBJ-JTH-DJ1 Heated Roll Coating Machine is a China Spreader equipment that adopts a single-station unwinding and unwinding design, equipped with a double-roll extrusion Spreader system and a heating oven unit. The effective Spreader width of the equipment is 400mm, the Spreader Film thickness range is 0.3-10 mm, and the Spreader speed is 0-5m/min, which is suitable for film processing of continuous coils.
Features
1. Single-station unwinding and winding system with inflatable shaft design
2. Double roll extrusion Spreader method, Spreader Film thickness adjustable range 0.3-10 mm
3. Spreader accuracy up to +/- 0.05mm, equipped with handwheel adjustment and dial indicator display
4. oven adopts column arch bridge structure, temperature control range room temperature~ 200 ℃ +/- 3 ℃
5. Automatic Tension Control to Ensure Stable Spreader Process
6. The main parts are made of 304 stainless steel and chrome-plated roller, with strong corrosion resistance
Principle

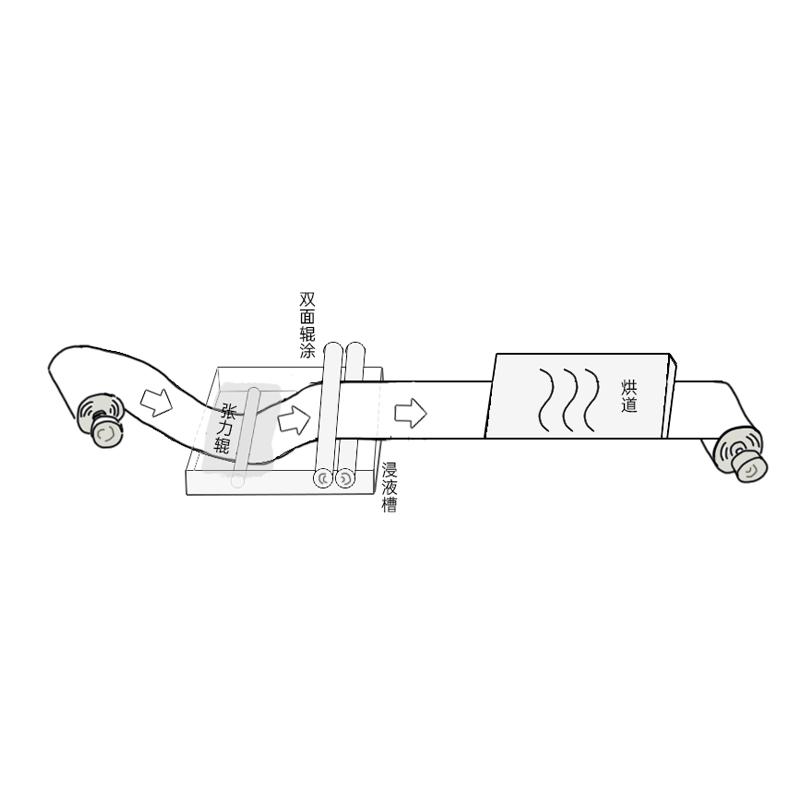

Spreader film thickness is adjusted by the handwheel and accurately displayed by the dial meter. The material after Spreader enters the oven unit, is heated by stainless steel electric heating tube and carried out drying curing by centrifugal fan hot air circulation, and finally the whole film process is automatically wound by the winding unit.
Applications
Coil Spreader, film coating, material surface preparation
Steps
1. Install the coil onto the inflatable shaft of the unwinding unit
2. Adjust the Spreader Film thickness of the double roll extrusion unit to the desired range
3. Set oven temperature and control parameters
4. Start the equipment, and the tension controller automatically controls the unwinding and winding tension
5. Monitor the Spreader process to ensure Spreader accuracy and temperature stability
6. After finishing the Spreader, remove the finished product from the winding unit
Notice
• Check whether all parts of the equipment are in good condition before operation
• Spreader Film thickness adjustment requires reference to the dial indicator display to ensure accuracy
• The oven temperature must not exceed the upper limit of 200 ° C
• Regularly clean the Dip Tray and Spreader Roller
• Pay attention to safety protection during equipment operation
• Power supply voltage must meet 220V 50Hz requirements
