Overview

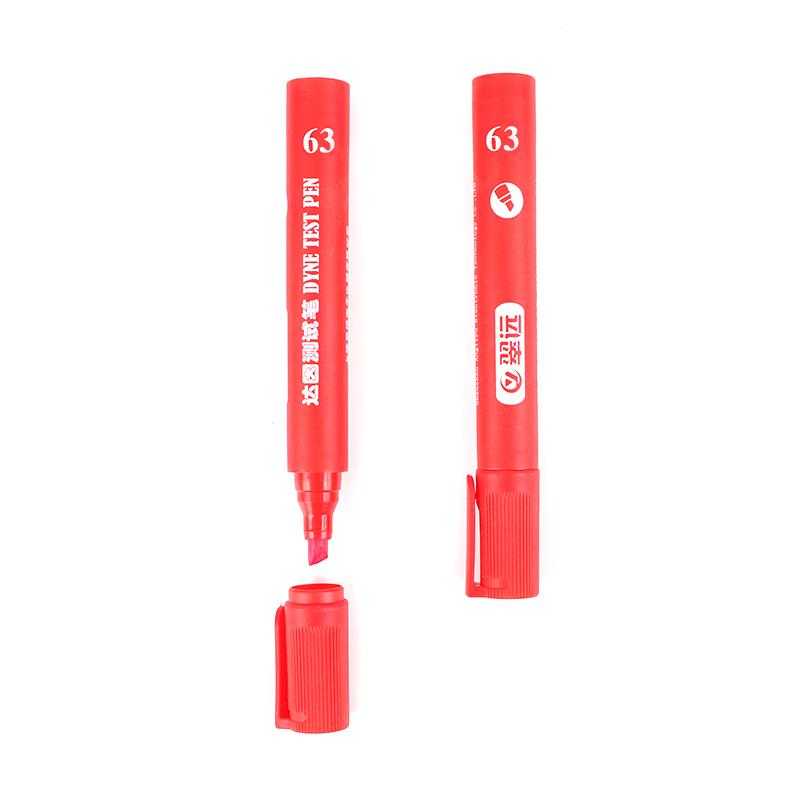

CUIYUAN Type 63 Dyne pen can be customized according to actual needs, including special needs such as ink Color, pen tip shape and size. Dyne pen, also known as corona pen and surface tension test pen, can accurately test whether the surface tension of materials such as Plastic film reaches the test pen value, help users determine whether the material is suitable for printing, compounding or vacuum aluminizing processes, effectively control mass and reduce losses.
Features
1. Customizable ink Color, tip shape and size and other special needs
2. Provide two specifications of pen and bottle
3. Bottles provide 10ml, 30ml, 60ml, 100ml, 200ml, 500ml various capacities
4. Color can be selected from red, blue and custom special colors such as white, black, etc
Principle
Dyne pen determines the surface preparation state of the material by testing whether the surface tension of the material reaches the calibration value of the test pen. When the pen liquid forms a continuous liquid film on the surface of the material, it indicates that the surface tension meets the standard; if the pen liquid cisses into droplets, the surface tension is insufficient.
Applications
Gravure printing, offset printing, UV printing, screen printing, tie-dye printing, ink jet printing, dry compounding, extrusion compounding, blown film, T-extrusion film, stretch film, Spreader, aluminized
Steps
1. Choose the right Dyne pen
2. Scribe evenly on the surface of the material to be tested
3. Observe the shape of the pen liquid: continuous liquid film indicates that the surface tension is up to standard, and cissing droplets indicate that it is not up to standard
4. Determine material suitability based on test results
Notice
• Make sure the surface of the material is clean and drying before use
• Select the appropriate Dyne pen specification according to the test requirements
• During the test, uniform force is required to ensure complete coverage of the pen liquid
• Different materials need to choose test pens of corresponding specifications
• Customized products need to confirm specific needs in advance
