China TBJ-SDJY-DJ double roll extrusion Coater chrome roller 0.3-10 mm adjustable

Name: China TBJ-SDJY-DJ double roll extrusion Coater chrome roller 0.3-10 mm adjustable
Brand: zy
SKU: NB041339
Price: 4057.0 USD
Availability: PreOrder

$ 4057.00Ex works

Adopting double roll extrusion method, Spreader Film thickness range 0.3-10 mm adjustable, accuracy up to +/- 0.05mm, equipped with handwheel adjustment and dial indicator display, dip plate is 304 stainless steel material.

Model

TBJ-SDJY-DJ

Get Quote

Category : R2R Coater

Brand : zy

SKU : NB041339

Service :The delivery and service By NBCLab.Com

Overview

TBJ-SDJY-DJ double roll extrusion Coater is a China Spreader equipment that uses double roll extrusion for Spreader operation. The equipment has adjustable roller coating function, effective Spreader width is 0~ 400mm, Spreader rate range is 0~ 5m/min, suitable for a variety of Spreader Film thickness requirements.

Features

1. The extrusion method adopts double-roll extrusion to ensure that the Spreader is uniform and stable 2. Double roll material is chrome-plated roller, wear-resistant and corrosion-resistant 3. Spreader Film thickness adjustable range, from 0.3mm to 10mm 4. Spreader adjustment adopts handwheel adjustment and dial meter display, and the operation is intuitive 5. Spreader accuracy up to +/- 0.05mm to ensure product mass 6. The dip tray is made of 304 stainless steel, which is corrosion-resistant and easy to clean 7. Spreader width 0~ 400mm, suitable for different size requirements 8. Spreader rate 0~ 5m/min adjustable to meet different production beats

Principle

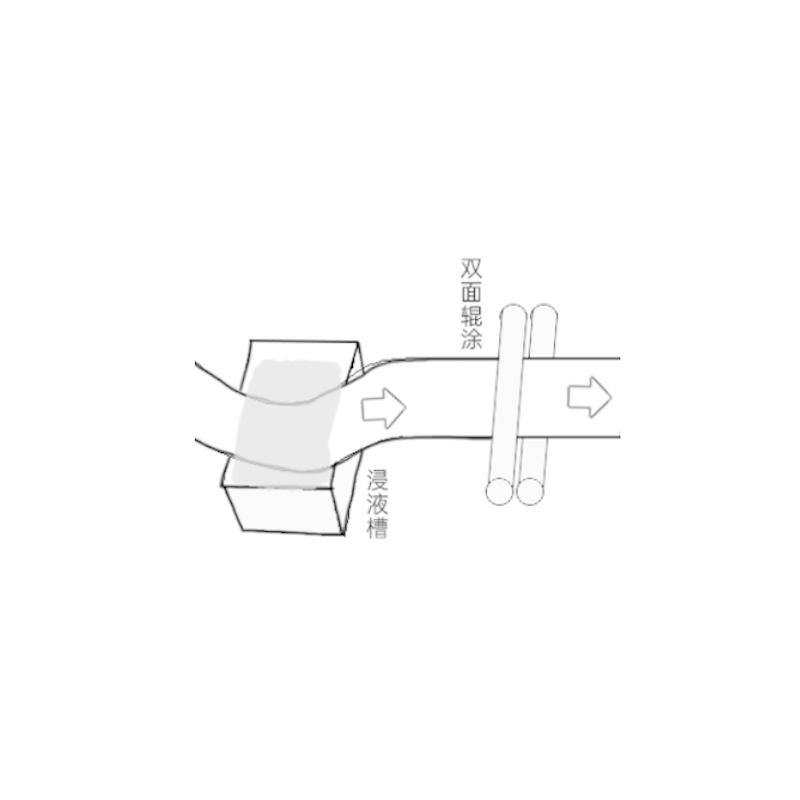

The Coater implements the Spreader function through a double-roll extrusion unit, the chrome-plated roller presses the material Spreader, and the Spreader Film thickness is adjusted by the handwheel and accurately displayed by the dial meter. The dip tray holds the Coating, and the roller surface is adjustable roller coating in the width range of 0-400mm. Spreader rate can be adjusted in the range of 0-5m/min.

Applications

Spreader processing, material surface preparation

Steps

1. Set Spreader Film thickness (0.3-10 mm) as required 2. Adjust the Spreader clearance through the handwheel and observe the dial indicator display 3. Set the appropriate Spreader rate (0-5m/min) 4. Place the material in the Spreader area for Spreader operation 5. Monitor the Spreader process to ensure Spreader accuracy meets requirements

Spreader mode
Adjustable roller coating
Effective Spreader Width
0-400mm
Spreader rate
0-5m/min
Host power supply
220V 50Hz
Roll surface width
0-400mm
Extrusion method
Double roll extrusion
Double roll material
chrome roller
Extrusion adjustable Range
0.3-10mm
Spreader Film thickness Range
0.3-10mm
Spreader adjustment
Handwheel adjustment, dial indicator display
Spreader accuracy
±0.05mm
Dip tray material
304 stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
