Overview

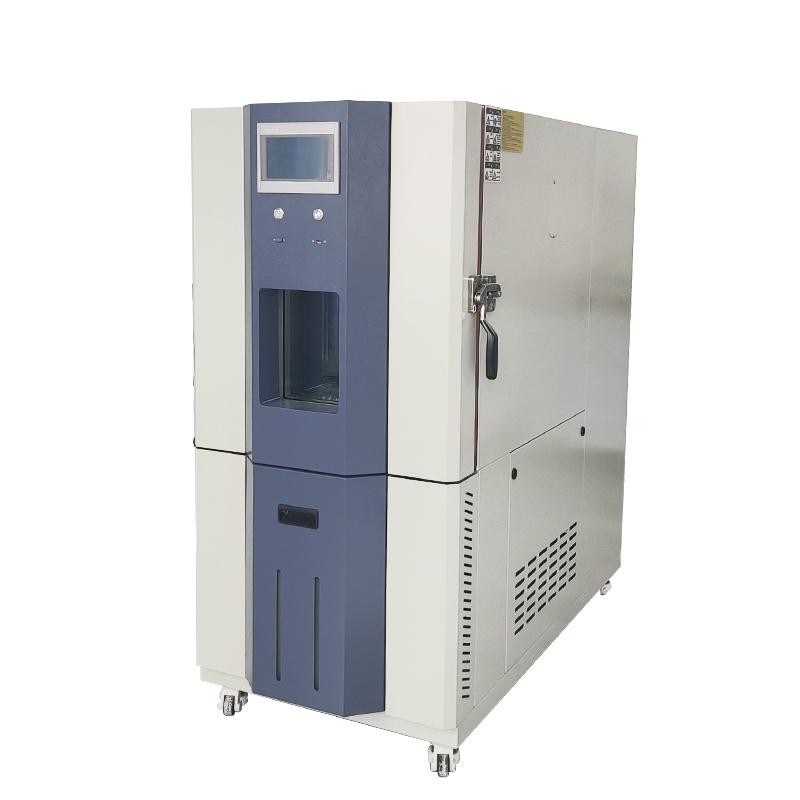

HUDA QT-E702-150K40 programmable humidity chamber is mainly used to simulate the harsh high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or equipment High temperature resistance, cold resistance, moisture resistance performance and possible damage life reduction.
Features
1. The box adopts SUS304 stainless steel inner box and Cold rolled steel plate paint outer box, which has the characteristics of corrosion resistance and easy cleaning
2. Equipped with explosion-proof door handle, ultra-fine fiberglass insulation system and refined silicone rubber sealing
3. Using French Taikang Compressor and American DuPont environmental protection refrigerant, binary low temperature circuit system design
4. Temperature and humidity control using P.I.D + S.S.R system co-channel coordinated control, resolution up to 0.1 ℃
5. The heating adopts nickel-chromium alloy high-speed heating wire, and the humidification system is independent and equipped with an automatic water replenishment device
6. Precision LCD programmable temperature controller, supports multiple sets of multi-stage programming operations
7. Equipped with a complete protection system, including multiple protections such as over-temperature, fan overheating, and underphase/inverse
Principle
Through the coordination of the refrigeration system, the heating system and the humidification system, the equipment adopts the thermal equilibrate temperature control method and the P.I.D + S.S.R control technology to achieve accurate temperature and humidity control. The refrigeration unit adopts a binary low temperature circuit system design, the heating adopts nickel-chromium alloy electric heating wire, and the humidification adopts the built-in heating system of stainless steel tube. The centrifugal fan is forced to circulate to ensure that the temperature and humidity in the test chamber are uniform and stable.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix it through the bottom PU activity wheel
Connect Power Supply (220V) and Necessary Interface
3. Set the test parameters through the touch screen, and choose the program method or the setting method
4. Adjust the spacing of the sample holders and place the test samples (load-bearing ≥ 20kg evenly distributed)
5. Start the equipment operation, and the test process can be monitored through the observation window
6. Test data can be stored and transferred via USB interface or SD card
Notice
• Samples should be evenly distributed as required, with a load-bearing capacity of no more than 20kg
• Make sure the casters are fixed before the equipment runs
• Pay attention to check whether the Power supply voltage meets the 220V requirements
• Regularly check the working status of the automatic water replenishment device
• After the fault alarm, the equipment will automatically shut down, and it needs to be troubleshooted before restarting.
• When using the test hole, ensure that the sealing plug is installed in place
• Do not open the box door frequently during the operation of the equipment
