Overview

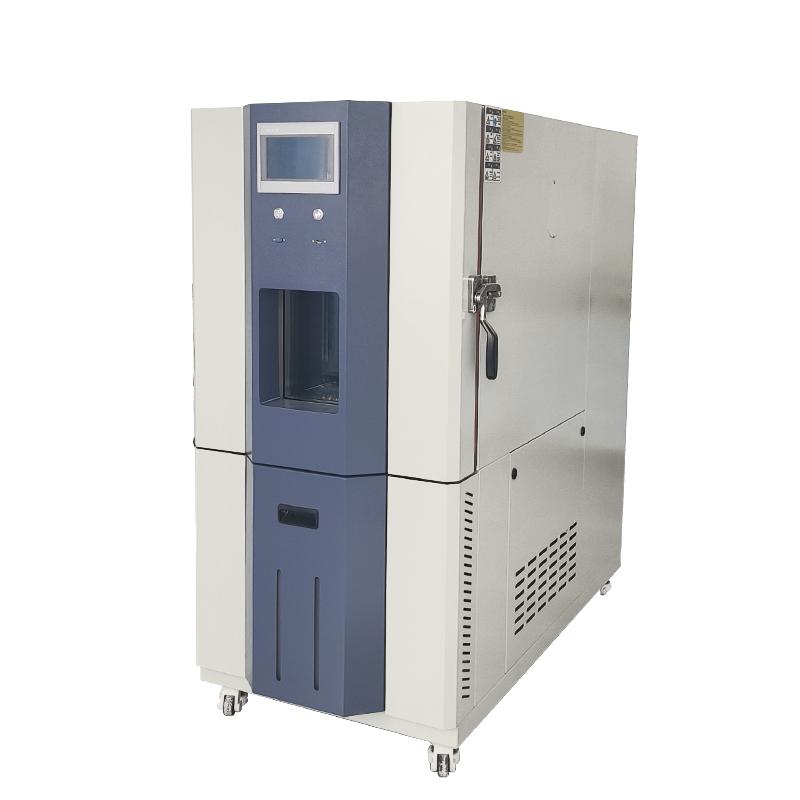

HUDA QT-E702-1000K40 programmable humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or equipment High temperature resistance, cold resistance, moisture resistance performance and possible damage life reduction.
Features
1. Box structure: The inner box is made of SUS304 #stainless steel plate, the outer box is Cold rolled steel plate paint treatment, equipped with explosion-proof door handle, ultra-fine fiberglass insulation system, fixed PU movable wheel, SUS304 #stainless steel sample holder, φ 50mm test hole and double-decked vacuum reinforced Glass observation window.
2. Refrigeration system: using French Taikang Compressor and American DuPont environmental protection refrigerant, binary low temperature circuit system design, P.I.D + S.S.R temperature and humidity control, high precision controller resolution up to 0.1 ℃.
3. Heating and humidification system: nickel-chromium alloy high-speed heating electric heating wire, high-temperature independent system, stainless steel tube built-in humidifier, independent heating and humidification system, humidity automatic replenishment.
4. Control system: precision liquid crystal display programmable temperature controller, smart digital display PID microcomputer temperature control instrument, touch setting, thermal equilibrate temperature control mode, multi-group multi-stage programming operation, the main electrical components are Chint brand, support USB data transfer and printer connection.
5. Protection system: overall equipment overtemperature, fan overheating protection, underphase/inverse phase, refrigeration system overload, refrigeration unit overpressure, timing, leakage, operation instructions, automatic shutdown after fault alarm, etc.
Principle
The test chamber uses the French Taikang Compressor and environmentally friendly refrigerant to achieve low temperature control through the refrigeration system, the heating and humidification system uses the nickel-chromium alloy heating wire for rapid heating and humidification, and the control system uses the P.I.D + S.S.R coordinated control and thermal equilibrate temperature control method to accurately simulate the high temperature, low temperature, heat and humidity alternating environment to inspect the performance of the material.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the machine through the bottom PU activity wheel to the designated position and fix it.
2. Connect the power supply and ensure that the voltage is 380V.
3. Use the controller to set, you can choose the program mode or the setting mode to set the temperature and humidity parameters.
4. Place the sample on a sample rack with adjustable spacing to ensure uniform load-bearing distribution.
5. Start the equipment, monitor the test process, and display observations through the observation window and controller.
6. After the test, export the data Linear dispersion through USB interface or printer.
Notice
• Power supply voltage is 380V to avoid under- or reverse-phase.
• Sample load-bearing should be evenly distributed, not exceeding 20kg.
• Regularly check the automatic replenishment device of the humidification system.
• Pay attention to protection system alarms such as overtemperature and overload during equipment operation.
• Make sure the sealing plug is properly installed when using the test hole.
• Avoid running in extreme temperature and humidity conditions for a long time to prevent the equipment from aging.
• The equipment will automatically shut down after the fault alarm, and it needs to be checked and troubleshooted before starting.
