$ 11833.00Ex works
Temperature range from -40 ° C to + 150 ° C, supports 120 program edits. Dual Compressor design, Temperature Fluctuation +/- 0.5 ° C, data collection and remote monitoring.
Category : Thermal Shock Test Chamber
Brand : HUDA
SKU : NB041392
Service :The delivery and service By NBCLab.Com

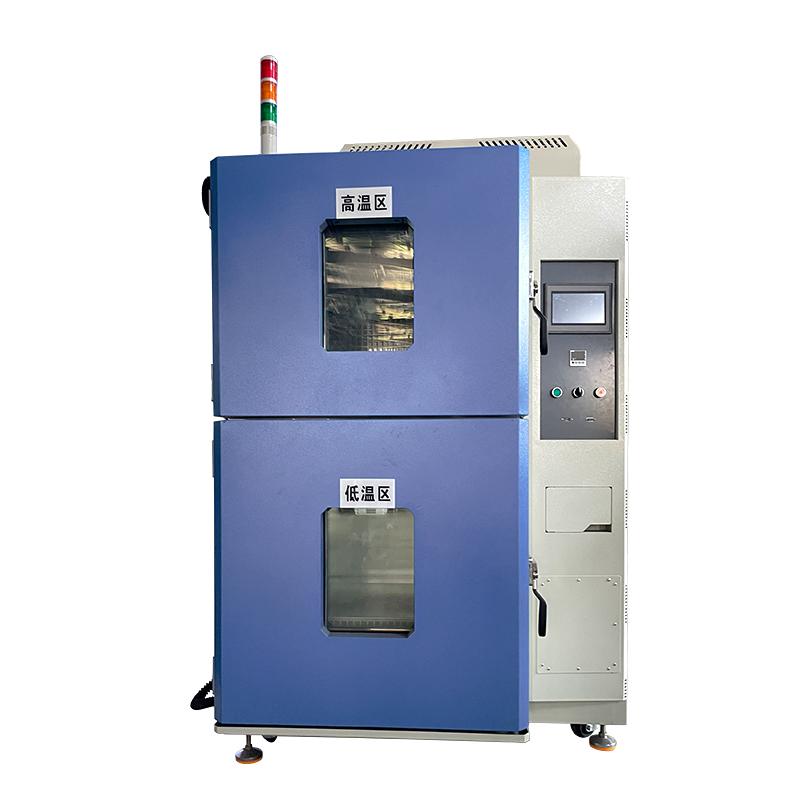

HUDA QD-E703-50K40 Thermal Shock Test Chamber is a test equipment required by the metal, plastic, rubber, electronics and other material industries. It tests the impact of rapid changes in high and low temperatures on products by moving the items to be tested. The device adopts computer control, is equipped with self-developed software, and has a good operation interface. It supports program maintenance, temporary parameter modification and automatic cooling and heating switching functions.
1. Adopt imported LED digital display microcomputer integrated controller, touch input is easy to operate 2. The maximum program capacity is 120 sets, and the repeatability executes the command up to 9999 times 3. With USB storage function, support data dump and Linear dispersion recording 4. Equipped with RS-232/RS-485 communication interface to support remote monitoring 5. Using environmentally friendly refrigerant R404A/R23 6. With reservation start, power-off memory and automatic renewal function 7. Multiple safety devices ensure safe operation
The equipment has built-in air valves in high temperature zone and low temperature zone, return air duct and stainless steel return fan, and moves the test product between the high temperature tank and the low temperature tank by switching the basket to achieve Thermal Shock test. Using a pneumatic cylinder actuation mechanism, the movement conversion time is less than or equal to 10 seconds, and it is stable within 3-5 minutes to achieve the purpose of rapid temperature alternation and uniform distribution.
Electronic products, automotive parts, high-tech products, metal materials, plastic materials, rubber materials
MIL STD、GB、JIS、JEDEC、IEC、GB/T2423.1-1989、GB/T2423.2-1989、GB/T2423.22-1989、GJB150.5-86、GJB360.7-87、GJB367.2-87、JIS、JESD22、GR-1221-CORE、GBT 10589-2008、GBT 11158-2008
1. Set the time and parameters through the touchscreen 2. Select the program loop mode to run 3. Equipment automatically performs cooling, heating, and temperature switching 4. Real-time monitoring of temperature Linear dispersion and data 5. Data can be exported via USB after the test is completed
Equipment environment temperature should be kept within 0 ℃~ 35 ℃, relative humidity ≤ 85% • When installing, the distance between the left and right of the test chamber and the rear wall plate shall not be less than 500mm, and the front distance shall not be less than 1000mm • When the environment temperature is lower than 0 ° C, the water left in the equipment should be discharged clean • Power supply voltage 3 phase 5 wire 380V, wire diameter 4 square, grounding 2.5 square • Before the equipment runs, confirm that passages, elevators, etc. can enter • Regularly check the refrigeration system and safety protection devices
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
