Overview

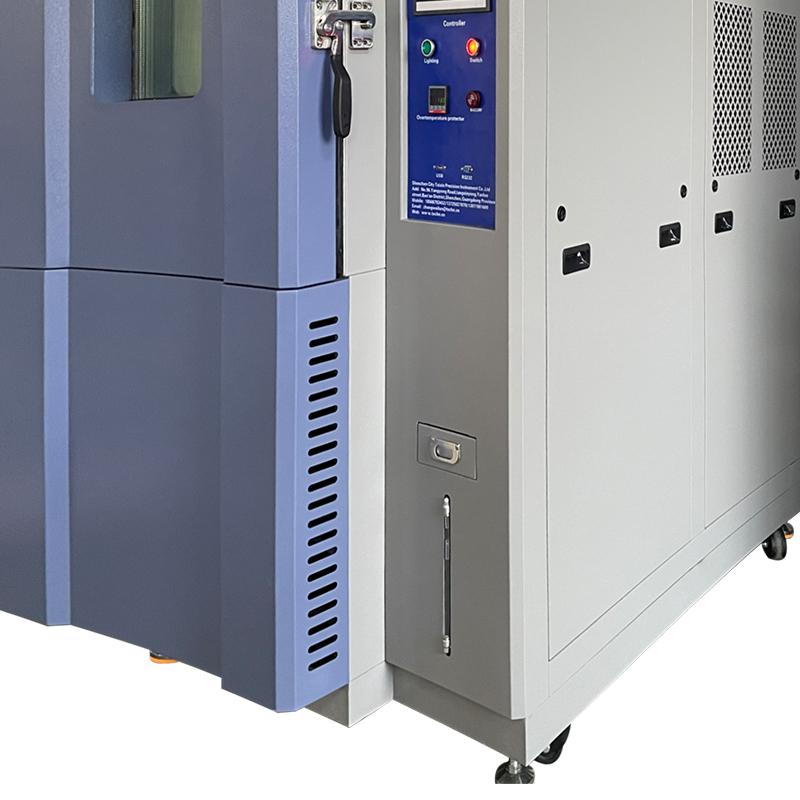

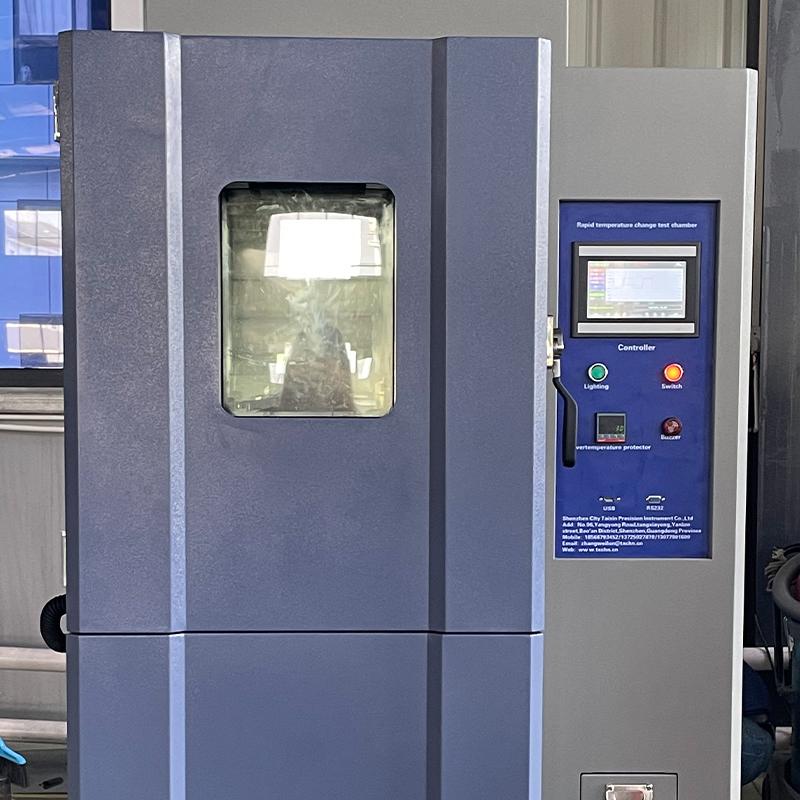

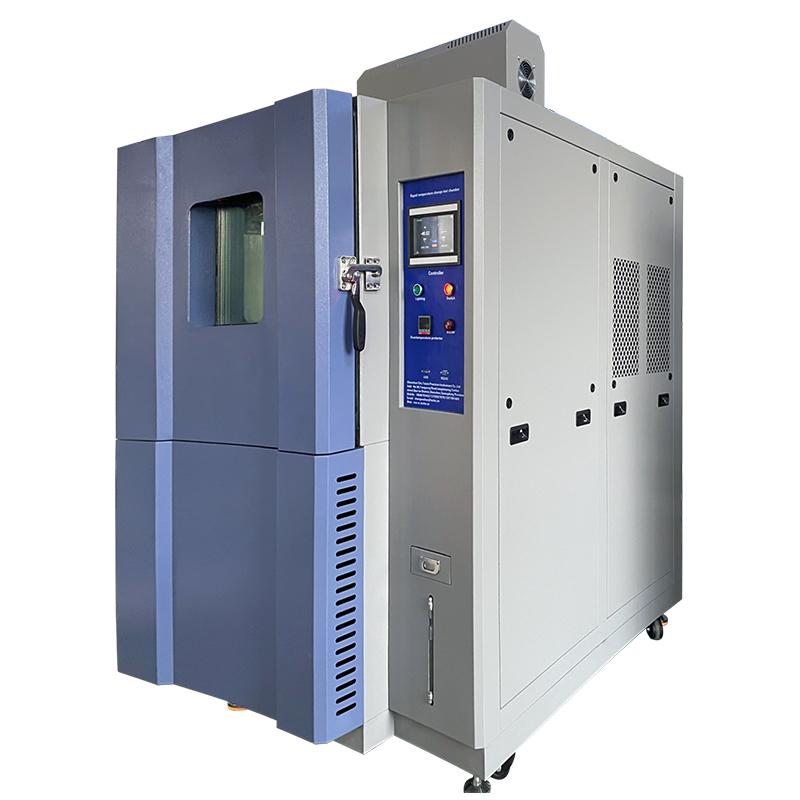

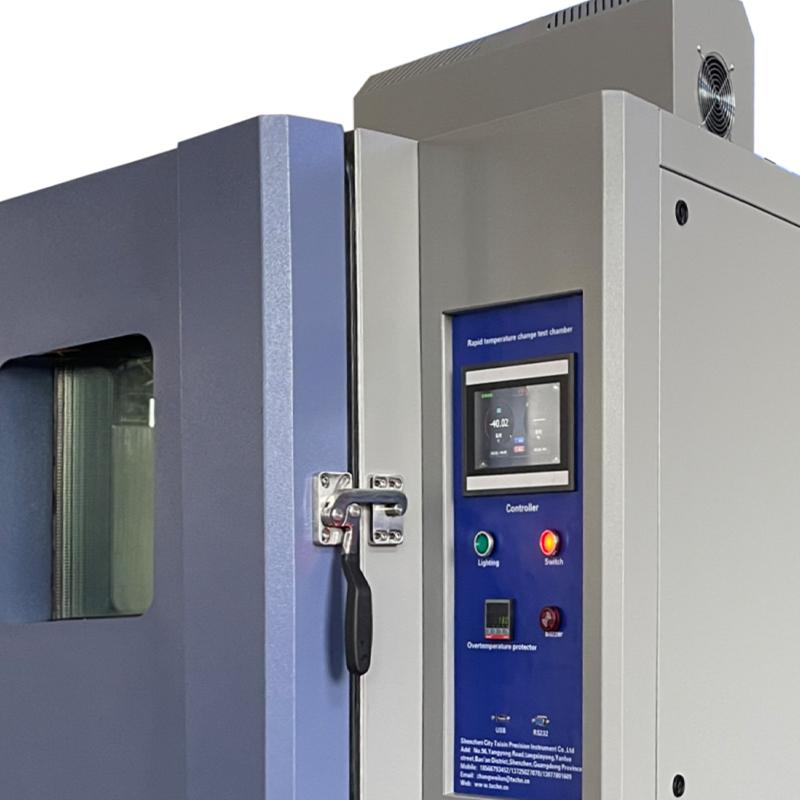

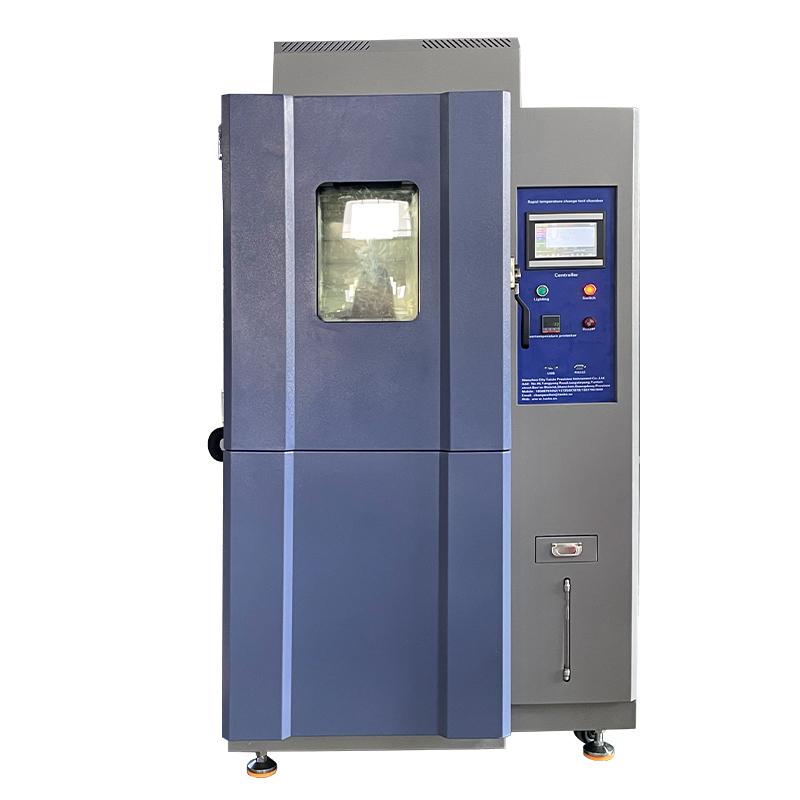

HUDA QD-E708-150K60-X15 rapid temperature change test chamber is a professional equipment used to determine the adaptability of electronic products, automotive parts, materials, etc. under the conditions of high humidity, low humidity, constant heat and humidity, high and low temperature rapid alternating cycle, surface condensation heat and humidity. The testing machine adopts a reasonable structure and a stable and reliable Control mode, with beautiful appearance, easy operation, safety, high temperature and humidity control accuracy, suitable for rapid temperature change test, constant temperature and humidity test, alternating humidity cabinet test.
Features
1, using multi-channel, environmental protection and energy saving (low noise) mechanical compression refrigeration system, energy consumption only accounts for 80% of congeneric products, through frequency conversion technology implementation of energy saving effect
2. The self-developed multi-channel and multi-stage throttling system ensures that the flow rate is adjustable, the temperature field changes uniformly, and the temperature fluctuation is minimal
3, the application of broadband compression equilibrating temperature control system, through the fast convergence of PID adaptive algorithm to achieve rapid temperature control
4. Realize remote visual control, configure human-machine management interface and RS485 communication interface, and support graphical fault prompts and solutions
Principle
The test chamber adopts a multi-channel mechanical compression refrigeration system and a multi-stage throttling system, and automatically adjusts the refrigeration output according to the working conditions through an intelligent control system. The forced air duct system using a temperature harmonizing chamber, a static pressure chamber and a centrifugal fan blade ensures that the hot and cold are fully exchanged and evenly transmitted to the studio. Fast temperature control is realized through a fast convergent PID adaptive algorithm to ensure temperature uniformity and Stability.
Applications
Electronics, automotive parts, materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)、GJB150.9A-2009、G/BT 2423.4-2008/IEC6008-2-30:2005、GB/T5170.18-2005、GB/T10586-2006、GBT 2424.6-2006、GBT 2424.7-2006
Steps
1. Connect the power supply and ensure that the power supply meets the requirements of AC380V three-phase four-wire system
2. Set temperature and humidity parameters and programs through the touch screen
3. Place the sample in the test space and adjust the sample holder spacing
4. Start the device running program
5. Observe the test process through the observation window and remote monitoring system
6. Turn off the power supply of the equipment after the test is completed
Notice
• The installation site needs to be flat, well ventilated, and does not contain flammable and explosive corrosive gases
• Maintenance space needs to be left around the equipment: not less than 400mm on both sides, and not less than 1000mm behind
• The allowable fluctuation range of power supply voltage is 10%, and the allowable fluctuation range of frequency is 50 +/- 0.5Hz.
• The grounding resistance of the protective ground wire should be less than 4Ω.
• The water quality of the water supply must meet the second-level water use standard of the National Analytical Laboratory
• The working environment temperature should be within the range of 5~ 30 ° C
• Working environment humidity should be ≤ 85% R.H
• Check whether the refrigeration system protection device is normal before the equipment runs
• Pay attention to the operation status of the equipment and deal with any abnormalities in a timely manner
