Overview

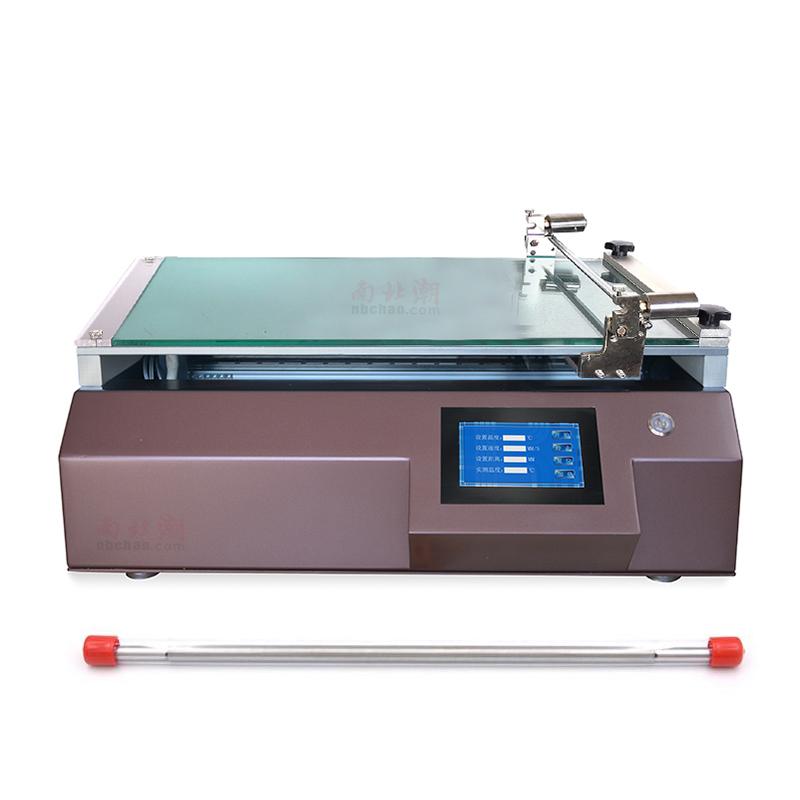

The touch laboratory TBJ-A1 wire rod Lab Film Applicator is a newly upgraded product for Spreader accurate wet-film on different substrates, which can repeatedly prepare smooth, flat and flawless test samples. The equipment comes standard with 1 China wire rod and 1 imported wire rod with an accuracy of up to 1μm, which has been favored by many enterprises, R & D institutions and Universities & colleges.
Features
1. Standard China and Imported High Accuracy Wire
2. Spreader Film thickness range (1~ 571.5μm)
3. Spreader accuracy (+/- 0.001mm)
4. Spreader rate adjustable range (5~ 200mm/s)
5. Infinitely variable speed control
6. Touch screen Control mode
7. Mechanical fixtures ensure the stability of the substrate
8. Aluminum alloy base plate material
9. Optional accessories and customization
Principle
The automatic Film Applicator uses a wire rod Spreader mode to evenly Spreader out the wet-film of the specified Film thickness on different substrates through precisely controlled Spreader rate and stroke. The device sets parameters through the touch screen, and the mechanical fixture fixes the substrate to achieve repeated and continuous accurate Spreader.
Applications
Corporate R & D, Research Institutions, Universities & colleges Laboratories
Steps
1. Prepare the substrate and fix it to the mechanical fixture
2. Select the appropriate wire rod and install it.
3. Spreader parameters (Film thickness, speed, stroke) set by touch screen
4. Spreader the device
5. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Select the appropriate fixture according to the substrate Film thickness
• Spreader parameters must be set within the allowable range of the device
• Regularly clean the Wire Stick and Spreader area
• Customized functions need to confirm compatibility in advance
