Overview

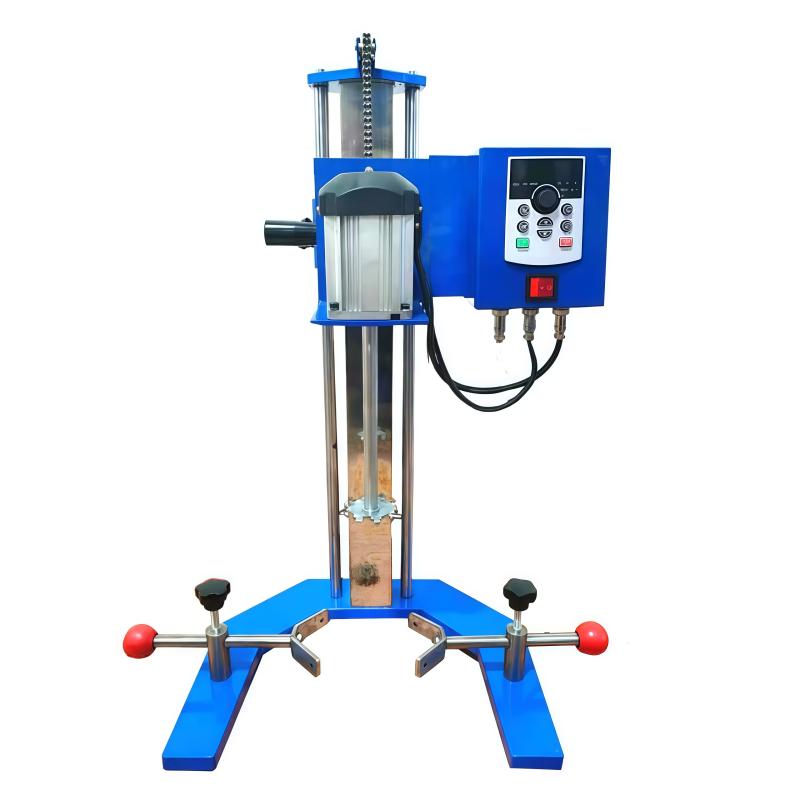

SDF-550 test multi-purpose Disperser is a new type of environmentally friendly laboratory product designed and developed by JINGKELIAN brand using new technologies at home and abroad. It integrates Stir, sand grinding, and dispersion functions. It is a professional experimental equipment for laboratory personnel. The equipment adopts frequency conversion motors, which have the advantages of small size, low noise, no commutation interference, and no carbon brush mechanical abrasion. The number directly displays the rotating shaft speed, and is equipped with a dispersed impeller and a sand grinding blade disc, which can adapt to different laboratory test needs. The relationship between the linear velocity of Stir, dispersion, and sand grinding blades and the material viscosity and chemical reaction rate can be directly calculated according to the displayed rotating shaft speed, providing correct data for large-scale production.
Features
1. Adopt dual-axis constant force lifting system, easy to lift
2. Adopt a new type of variable frequency motor, implement stepless speed regulation of the motor through smart variable frequency controller, apply digital PID technology, high control accuracy, 4 digital tube directly displays the spindle speed
3. Disperse impeller and sand grinding blades are directly connected to the shaft with screws
4. The cylinder is fixed by the left and right grippers, and the cylinder body adopts the jacket structure, which can be processed from stainless steel by chilling down water
Principle
The equipment drives the rotating shaft through the frequency conversion motor, realizes stepless speed regulation, digital display speed, is equipped with dispersed impeller and sand grinding blades for Stir, sand grinding and dispersion operation, the dual-axis constant force lifting system is easy to adjust the height, and the jacketed barrel can control the temperature by chilling down water.
Steps
1. Fix the barrel with left and right grippers
2. Select the dispersed impeller or sand grinding disc as needed, and connect it with the rotating shaft with screws
3. Set the required speed through the frequency converter controller
4. Stir, disperse or grind the equipment
5. Turn off the power after the operation is completed and clean the equipment
