Overview

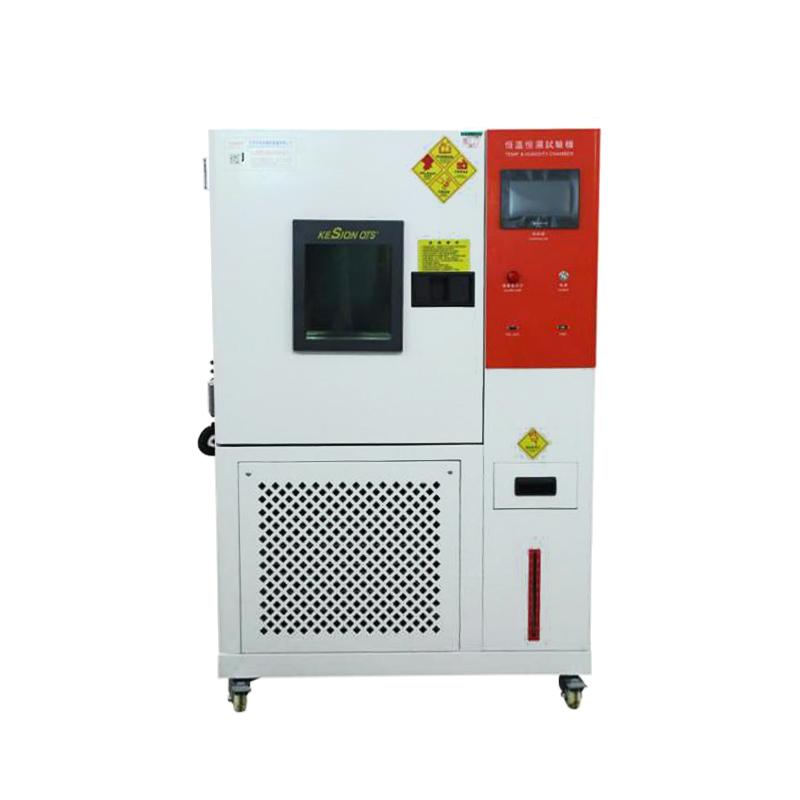

KESIONOTS KS-HW408L (150 ℃) humidity chamber can accurately simulate complex natural environments such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is suitable for product Reliability testing in plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries. The equipment adopts advanced refrigeration, heating and temperature and humidity control systems to ensure test accuracy and Stability.
Features
1. With automatic calculation function
2. With fixed temperature and slope setting function
3. With hold, skip, standby and two sets of time signal output functions
4. With cold/heat engine start-up selection function
5. With temperature display value correction function
6. With temperature sensor calibration function
7. With Compressor automatic stop function
8. With reservation start/stop function
9. With power failure memory function: program data memory can be maintained for 6 months after power failure
10. Powerful network monitoring and control capabilities
11. With a capacity of 1000 programs, each of which can cycle through 999 steps
12. With fault alarm and cause, processing prompt function
13. With upper and lower limit temperature protection function
14. With self-diagnostic function
15. With PC link function
Principle
The equipment adopts a cascade refrigeration system, which is composed of high temperature part and low temperature part, and realizes refrigeration cycle through evaporative condenser connection. The heating system adopts high power resistance wire to achieve rapid heating up. The temperature and humidity system is divided into two subsystems of humidification and dehumidification. The humidification adopts steam humidification method, and the dehumidification adopts mechanical refrigeration dehumidification and drying dehumidification. The Sensor system uses platinum resistance and solid state electronic Sensor for temperature and humidity measurement.
Applications
Plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials
Standards
GB5170、2、3、5、6-95、GB2423.1-89 (IEC68-2-1)、GB2423.2-89 (IEC68-2-2)、GB/T2423.3-93(IEC68-2-3)、GB/T423.4-93(IEC68-2-30)、GJB150.3(ML-STD0-810D)、GJB150.4(MIL-STD-810D)、GJB150.9-1986、GJB4.6-1983、GJB367.2-1987、GJB4.5-1983、GB10592-93、GB10586-93、GJB360.8-87(MIL-STD-202f)、GB/T5170.2-96、GB/T5170.5-96、YD1268-2003、UL1642、UN38.3、GB/T18287-2000、GB8897.4-2002、UL2054-2005、SJ/T 11169-1998、SJ/T11170-1998、YD1268.2-2003、QC/T743-2006、QC/T744-2006
Steps
1. Set program catalog management and test parameters
2. Select the operation mode: fixed value/program/link
3. Set the appointment start time
4. Start the test program
5. Monitor actual operation Linear dispersion
6. Stop running after completing the test
Notice
• The weight of the product rack shall not exceed 20 kg
• The resistivity of humidification water needs to be ≥ 500MΩ
• The power switch must use an air switch (40A), and it is forbidden to use a knife switch or a power socket
• Lock the start-stop function during operation to prevent accidental touch from affecting the experimental results
• Pay attention to the status of safety devices, including air burn prevention, high voltage protection, overheating protection, etc
