Overview

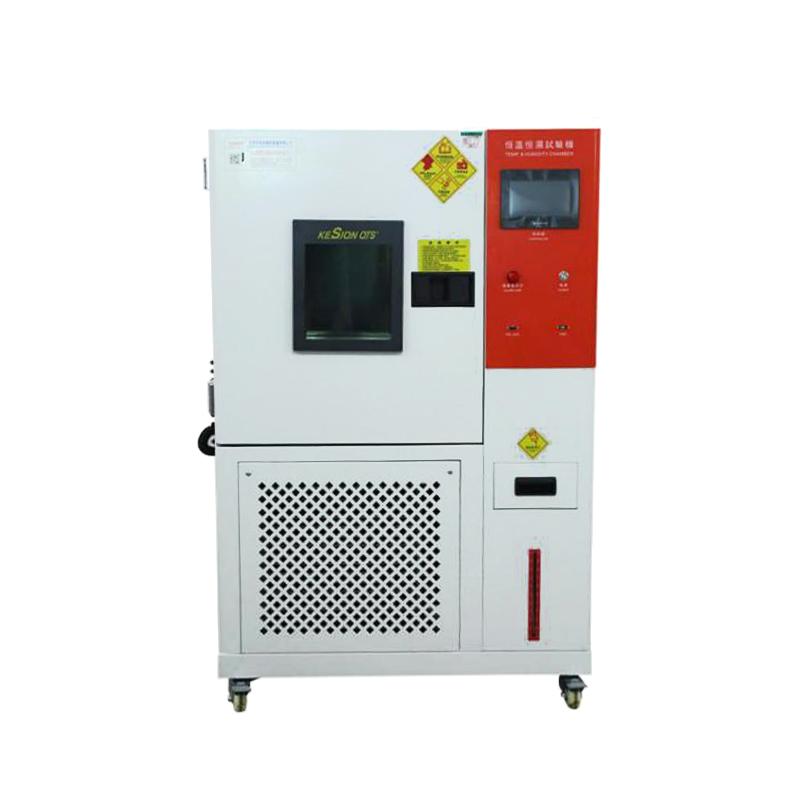

KESIONOTS KS-HW408C (150 ℃) humidity chamber is a professional equipment that can accurately simulate complex natural environment conditions such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is suitable for product Reliability testing in plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries. The studio volume is 408L.
Features
1. With automatic calculation function
2. With fixed temperature and slope setting function
3. With hold, skip, standby and two sets of time signal output functions
4. With cold/heat engine start-up selection function
5. With temperature display value correction function
6. With temperature sensor calibration function
7. With Compressor automatic stop function
8. With reservation start/stop function
9. With power failure memory function, program data can be maintained for 6 months after power failure
10. Powerful network monitoring and control capabilities
11. With 1000 segments, each segment can cycle 999 steps, and each segment sets the MAX Maximum to 99 hours and 59 minutes
12. With fault alarm and cause, processing prompt function
13. With upper and lower limit temperature protection function
14. With self-diagnostic function
15. With PC link function
16. Control system adopts smart microcomputer PID + SSR/SCR automatic forward and reverse bidirectional synchronous output
17. With data setting, Linear dispersion drawing, timing control, reservation start, operation lock, power failure return, safety detection, external protection, communication interface, display switching and other functions
18. The humidification system adopts box water supply, and manually adds 20L of water each time.
19. The product rack bears a weight of less than 20 kg, and is equipped with 2 product test racks
Principle
Humidity chamber works synergistically through refrigeration system, heating system and temperature and humidity system. The refrigeration system uses cascade refrigeration, which consists of high temperature part and low temperature part. It is connected by evaporative condenser to realize low temperature environment simulation. The heating system consists of high power resistance wire, which provides rapid heating. The temperature and humidity system includes humidification and dehumidification subsystem. The humidification adopts steam humidification method. The dehumidification adopts mechanical refrigeration dehumidification or drying dehumidification method. The Sensor system uses platinum resistance and Thermocouple for temperature measurement. The solid state electronic Sensor performs humidity measurement.
Applications
Plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials
Standards
GB5170、2、3、5、6-95、GB2423.1-89 (IEC68-2-1)、GB2423.2-89 (IEC68-2-2)、GB/T2423.3-93(IEC68-2-3)、GB/T423.4-93(IEC68-2-30)、GJB150.3(ML-STD0-810D)、GJB150.4(MIL-STD-810D)、GJB150.9-1986、GJB4.6-1983、GJB367.2-1987、GJB4.5-1983、GB10592-93、GB10586-93、GJB360.8-87(MIL-STD-202f)、GB/T5170.2-96、GB/T5170.5-96、YD1268-2003、UL1642、UN38.3、GB/T18287-2000、GB8897.4-2002、UL2054-2005、SJ/T 11169-1998、GB8897.4-2002、SJ/T11170-1998、YD1268.2-2003、QC/T743-2006、QC/T744-2006
Steps
1. Connect the power supply to ensure that the voltage is 220V AC (+/- 10%) and the grounding resistance is ≤ 4Ω.
2. Manually add water to the humidification system, 20L each time, to ensure that the water resistivity is ≥ 500MΩ
3. Through the 5.7-inch LCD color LCD screen setting program, you can choose the setting value, program or connection mode
4. Use the controller to set temperature and humidity parameters, including appointment start-up and timing control
5. Start equipment, monitor actual operation Linear dispersion and safety detection function
6. After the test is completed, turn off the device and disconnect the power supply
Notice
• The power switch must use an air switch (40A), and it is forbidden to use a knife switch or a power socket
• The resistivity of humidification water needs to be ≥ 500MΩ to ensure the humidification effect
• The weight of the product rack shall not exceed 20 kg to prevent overloading
• Pay attention to safety devices during operation, including air burn prevention, high voltage protection, overheating protection, overcurrent protection, etc
• After a power outage, the program data can be maintained for 6 months, but attention should be paid to the selection of the restart mode
• Ensure stable connection when using communication interface RS-232 for PC connection
• Regularly check Sensors and Control Systems for accuracy and functionality
