Overview

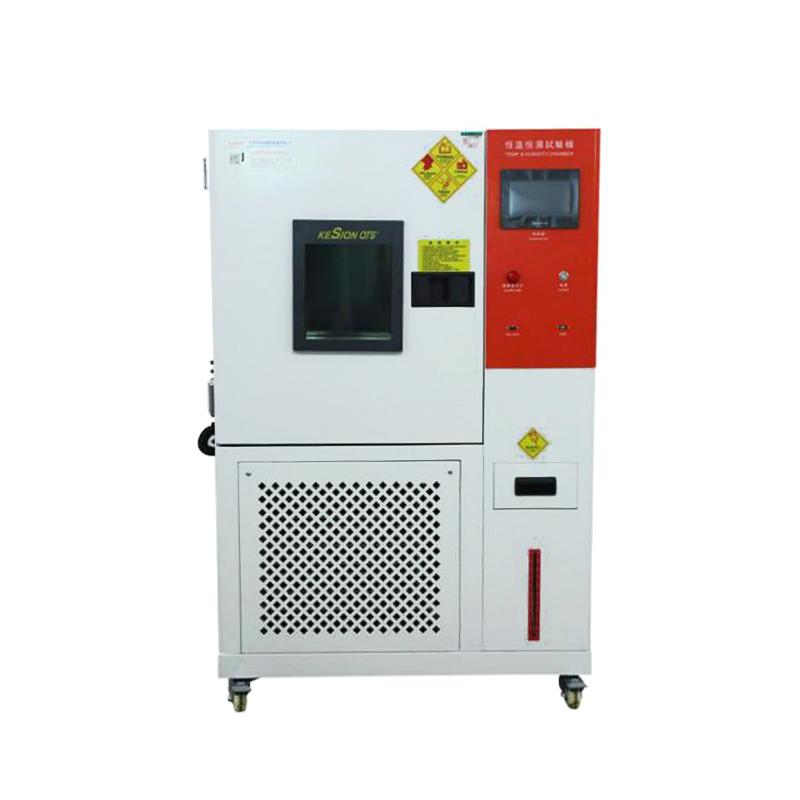

KESIONOTS KS-HW800D (150 ℃) humidity chamber is a testing equipment that can accurately simulate complex natural environments such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is suitable for product Reliability testing in plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
Features
1. With automatic calculation function
2. With fixed temperature and slope setting function
3. With hold, skip, standby and two sets of time signal output functions
4. With cold/heat engine start-up selection function
5. With temperature display value correction function
6. With temperature sensor calibration function
7. With Compressor automatic stop function
8. With reservation start/stop function
9. With power failure memory function, the program data memory can be maintained for 6 months after power failure
10. Powerful network monitoring and control capabilities
11. With a program capacity of 1000 segments, each segment can cycle 999 steps, and each segment is set to MAX Maximum 99 hours and 59 minutes
12. With fault alarm and cause, processing prompt function
13. With upper and lower limit temperature protection function
14. With self-diagnostic function
15. With PC link function
Principle
The test chamber adopts a cascade refrigeration system, which is composed of two relatively independent refrigeration systems, the high temperature part and the low temperature part, which are connected by evaporative condenser. The heating system is composed of high-power resistance wire, which can realize rapid heating. The temperature and humidity system is divided into two subsystems of humidification and dehumidification. The humidification adopts steam humidification method, and the dehumidification adopts mechanical refrigeration dehumidification and drying dehumidification. The Sensor system adopts platinum resistance and Thermocouple measurement temperature, and the solid-state electronic Sensor measurement humidity.
Applications
Plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials
Standards
GB5170、2、3、5、6-95、GB2423.1-89 (IEC68-2-1)、GB2423.2-89 (IEC68-2-2)、GB/T2423.3-93(IEC68-2-3)、GB/T423.4-93(IEC68-2-30)、GJB150.3(ML-STD0-810D)、GJB150.4(MIL-STD-810D)、GJB150.9-1986、GJB4.6-1983、GJB367.2-1987、GJB4.5-1983、GB10592-93、GB10586-93、GJB360.8-87(MIL-STD-202f)、GB/T5170.2-96、GB/T5170.5-96、YD1268-2003、UL1642、UN38.3、GB/T18287-2000、GB8897.4-2002、UL2054-2005、SJ/T 11169-1998、SJ/T11170-1998、YD1268.2-2003、QC/T743-2006、QC/T744-2006
Steps
1. Set up program catalog management, establish test names and program data
2. Select the operation mode: three operation modes such as fixed value/program/connection
3. Set the reservation boot operation function
4. Lock the start-stop function conditions to prevent accidental touch
5. Configure the power failure recovery mode: BREAK (interrupt), COLD (cold engine start), HOT (hot engine start)
6. Online control with PC via RS-232 interface
7. Select Chinese/English to display subtitles
8. Manually add water 20L each time
9. Place the product test rack to ensure that the load-bearing capacity does not exceed 20 kg
Notice
• Power supply voltage must be 220V AC (+/- 10%), protective grounding resistance ≤ 4Ω
• Do not use knife switches or power sockets, must use air switches (40A)
• The resistivity of humidification water needs to be ≥ 500MΩ
• The load-bearing capacity of the product rack shall not exceed 20kg
• Pay attention to the status of safety devices: air burn prevention, high voltage protection, overheating protection, overcurrent protection, Pottery and porcelain E-16 fast fuse, no fuse overload protection
• The frequency needs to be kept at 50 +/- 0.5Hz
• Power is about 3.5KW, ensure power matching
• Regularly check the Sensor Correction Status
• Pay attention to observe the fault alarm prompt and deal with it in time
