Overview

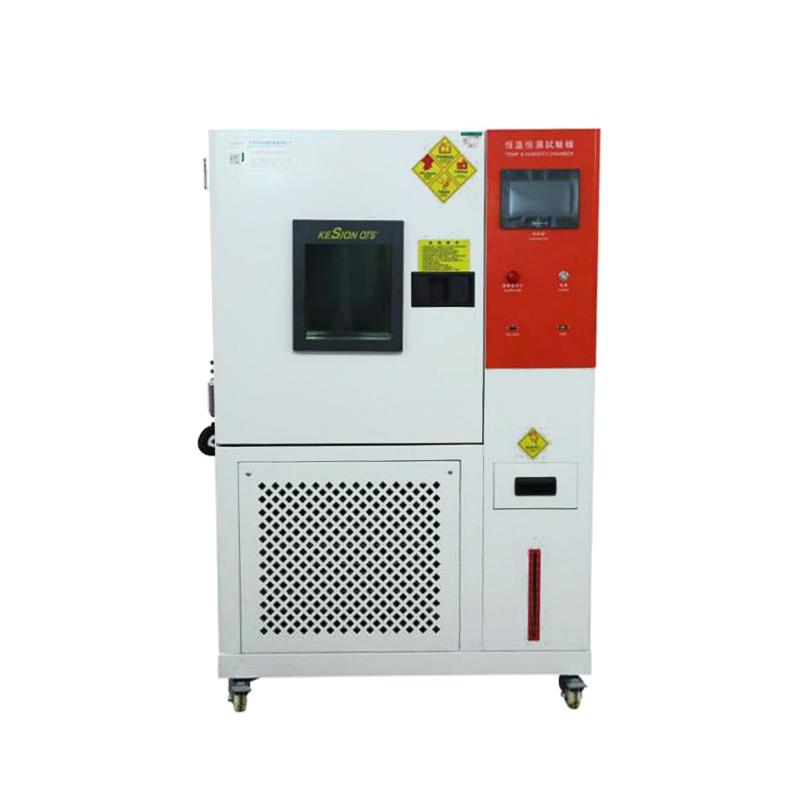

KESIONOTS KS-HW1000E (150 ℃) humidity chamber can accurately simulate complex natural environments such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is suitable for product Reliability testing in plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries. The equipment adopts advanced temperature and humidity control system and refrigeration and heating system to ensure the Stability and accuracy of the test environment.
Features
1. With automatic calculation function
2. With fixed temperature and slope setting function
3. With hold, skip, standby and two sets of time signal output functions
4. With cold/heat engine start-up selection function
5. With temperature display value correction function
6. With temperature sensor calibration function
7. With Compressor automatic stop function
8. With reservation start/stop function
9. With power failure memory function, the program data memory can be maintained for 6 months after power failure
10. Powerful network monitoring and control capabilities
11. With 1000 segments, each segment can cycle 999 steps, and each segment sets MAX Maximum 99 hours and 59 minutes
12. With fault alarm and cause, processing prompt function
13. With upper and lower limit temperature protection function
14. With self-diagnostic function
15. With PC link function
Principle
The refrigeration system adopts cascade refrigeration, which is composed of high temperature part and low temperature part. It is connected by evaporation condenser. The high temperature part of the refrigerant evaporates and absorbs the low temperature part of the heat, and the low temperature part of the refrigerant evaporates and absorbs heat from the air in the box. The heating system is composed of high power resistance wire to achieve rapid temperature rise. The temperature and humidity system is divided into humidification and dehumidification subsystem. The humidification adopts steam humidification method. The dehumidification adopts two ways of mechanical refrigeration dehumidification and drying dehumidification. The Sensor system adopts platinum resistance and Thermocouple measurement temperature. The solid state electronic
Applications
Plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials
Standards
GB5170、2、3、5、6-95、GB2423.1-89 (IEC68-2-1)、GB2423.2-89 (IEC68-2-2)、GB/T2423.3-93(IEC68-2-3)、GB/T423.4-93(IEC68-2-30)、GJB150.3(ML-STD0-810D)、GJB150.4(MIL-STD-810D)、GJB150.9-1986、GJB4.6-1983、GJB367.2-1987、GJB4.5-1983、GB10592-93、GB10586-93、GJB360.8-87(MIL-STD-202f)、GB/T5170.2-96、GB/T5170.5-96、YD1268-2003、UL1642、UN38.3、GB/T18287-2000、GB8897.4-2002、UL2054-2005、SJ/T 11169-1998、SJ/T11170-1998、YD1268.2-2003、QC/T743-2006、QC/T744-2006
Steps
1. Set program catalog management and test data
2. Select the operation mode: fixed value/program/link
3. Set the reservation start function
4. Lock the operating conditions to prevent accidental touch
5. Configure the humidification system box water supply, manually add 20L of water each time
6. Place the product on the test rack (load-bearing within 20 kg)
7. Start testing and monitor actual operation Linear dispersion
8. View fault history data when abnormal
Notice
• Power supply voltage must be 220V AC (+/- 10%), protective ground wire, ground resistance ≤ 4Ω
• Do not use knife switches or power sockets, must use air switches (40A)
• The resistivity of humidification water needs to be ≥ 500MΩ
• The load-bearing capacity of the product rack does not exceed 20kg
• Note that safety devices include air burn prevention, high voltage protection, overheating protection, overcurrent protection, Pottery and porcelain E-16 fast fuse, no fuse overload protection
• The frequency needs to be kept at 50 +/- 0.5Hz
• After a power outage, you can choose BREAK (interrupt), COLD (cold engine start) or HOT (hot engine start) mode as needed
