Overview

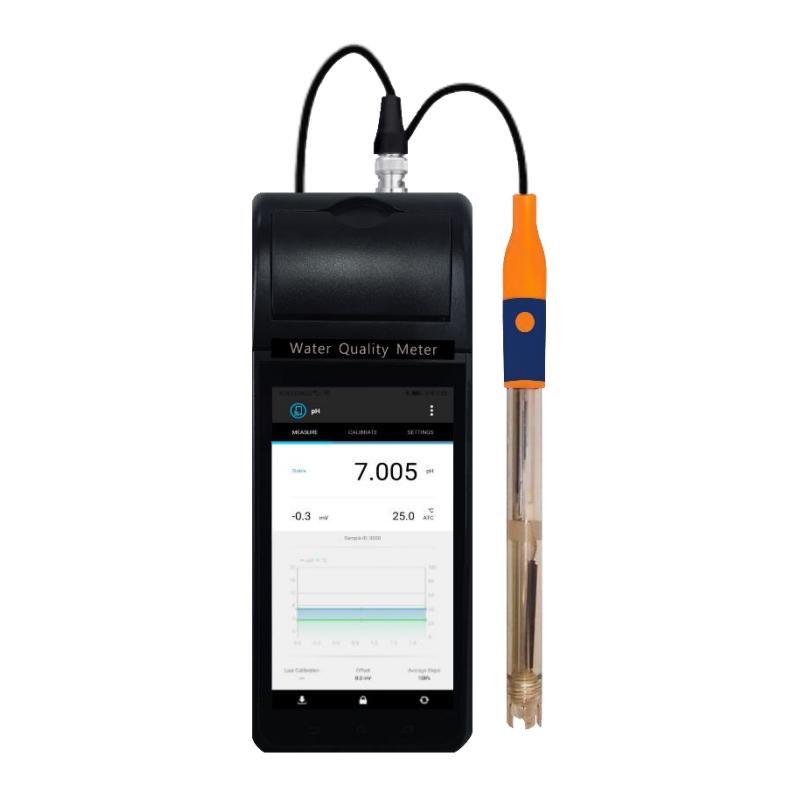

The Bante10 portable smart acidity meter is a precision instrument based on the Android operating system. It supports 1 to 5 point calibrating, and the user can customize 14 functional parameters. Measurement accuracy is up to 0.002pH. It is suitable for the measurement of pH, mV and temperature values of liquids. It has High Accuracy and Intelligent Operation Characteristics.
Features
1. High Accuracy Smart pH Meter, supports pH, mV and temperature measurement
2.1 to 5 point calibrated, automatically recognizes USA, NIST, DIN standard buffer
3. Solution temperature coefficient compensation, pure water measurement reading conversion to 25 ° C
4. Automatic temperature compensation to ensure accurate measurement of full scale
5. Automatic destination locking, maintaining stable readings for easy browsing
6. Timed interval readings, data can be sent to memory or printer
7. Limit alarm function, automatic warning over range measurement value
8. Calibrate expiration reminder, prompt regular calibrate
9. The calibrated report shows date, time, pH slope and zero offset
10. Password protection against unauthorized calibrating and setting
11. Reset function to restore factory default settings
12. Support full Netcom, Bluetooth, WIFI multiple connection methods
13. GPS positioning function
14. Email measurement data in real time
15.5.5 inch high definition IPS touch screen
Principle
The Bante10 acidity meter detects the concentration of hydrogen ions in liquids by Electrode, converts to pH value, and simultaneously measures mV and temperature. Automatic temperature compensation technology ensures measurement accuracy in different temperature environments, and supports multiple calibrated modes and data processing functions.
Applications
Liquid pH measurement, mV measurement, temperature measurement, water quality monitoring, laboratory analysis, industrial process control, environment monitoring, education and research
Steps
1. Boot and enter the Android system interface
2. Select measurement parameters (pH, mV or temperature)
3. Perform 1 to 5 point calibrate, select buffer standard
4. Measurement mode (continuous or automatic end point locking)
5. Start measurement, data is automatically recorded or sent
6. Use the touchscreen to browse or export data
Notice
• Regularly calibrate meters to ensure measurement accuracy
• Electrode drying is avoided and cleaned promptly after use
• Operate within the range of automatic temperature compensation
• Set password protection to prevent unauthorized settings changes
• Pay attention to the battery level and charge it in time.
• Use standard buffer to calibrate
• Follow the operating manual safety guidelines
