Overview

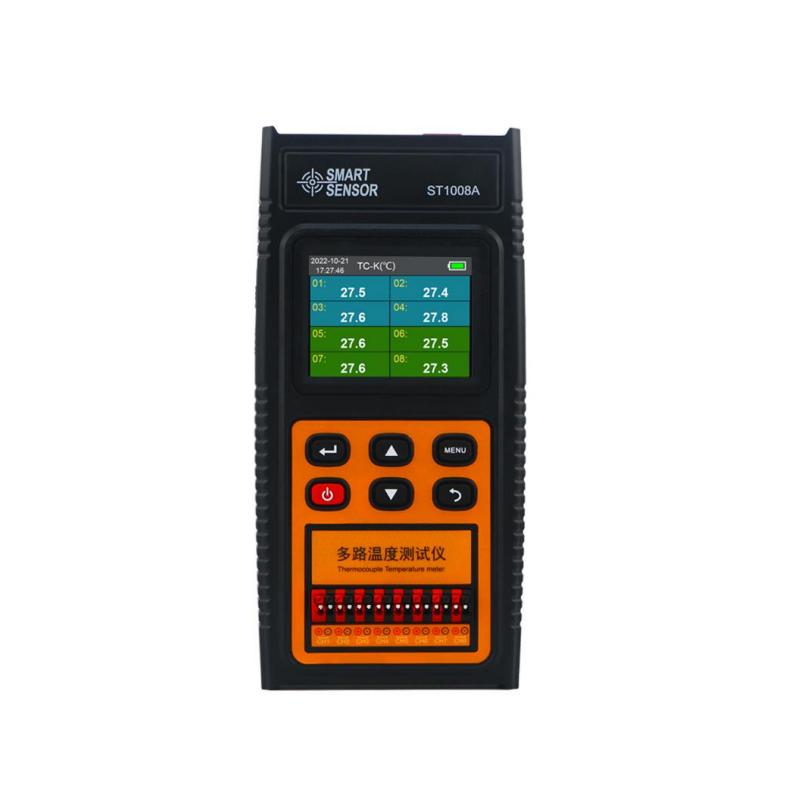

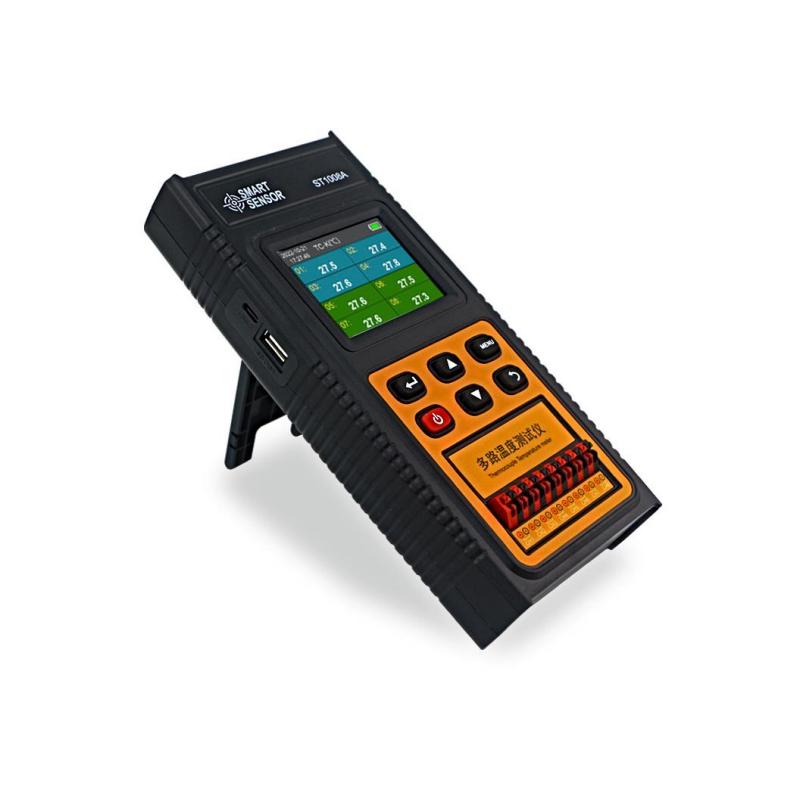

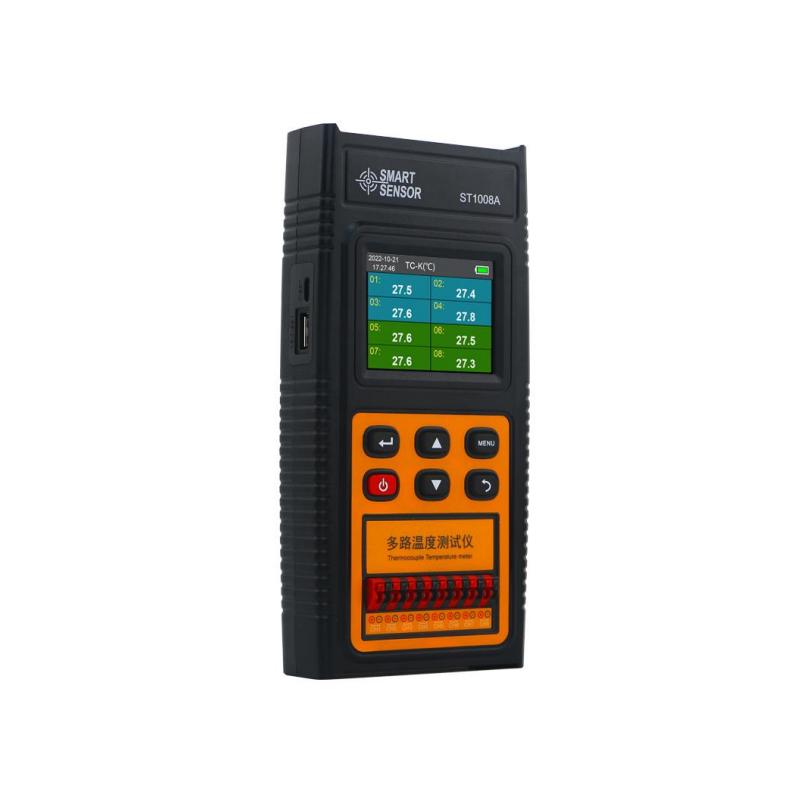

The SMART SENSOR ST1008A Thermocouple temperature tester is a multi-channel temperature tester that can simultaneously measure up to 8 channels of temperature data, with recording analysis, upper and lower limit alarm and communication transmission functions. Controlled by a high-performance microprocessor, equipped with a true-color TFT-LCD display screen and a Chinese-English interchangeable interface, supports High Accuracy measurement, large-capacity USB storage, and integrates display, processing, recording, calculation, alarm and power distribution functions. It is suitable for industrial, scientific research, food, teaching, laboratory and other fields.
Features
1. Multi-channel temperature measurement, up to 8 channels simultaneously
2. Compatible with a variety of temperature sensors (K type, J type, T type, E type, N type optional)
3. High Accuracy measurement, accuracy of 0.2% + 1 ℃, resolution 0.1 ℃
4. True color TFT-LCD display, Chinese and English interchangeable operation interface
5. Support large-capacity USB storage, and the maximum external U disk is 32G.
6. Built-in 5000mA/h polymer lithium battery, fully charged for 35 hours
7. With upper and lower limit alarm function and automatic shutdown function
8. Data recording supports local storage and U disk storage, and the export method is flexible
Principle
The instrument collects temperature signals through the Thermocouple Sensor, and uses a high-performance microprocessor for data processing and conversion to realize temperature measurement and recording. Support continuous recording mode, the recording interval is adjustable (3 to 60 seconds), the data can be saved by local storage or external U disk, and can be viewed and analyzed online through a computer.
Applications
Industry, scientific research, food, teaching, laboratories, material temperature testing, heat dissipation testing, electronic testing, optoelectronic industry
Steps

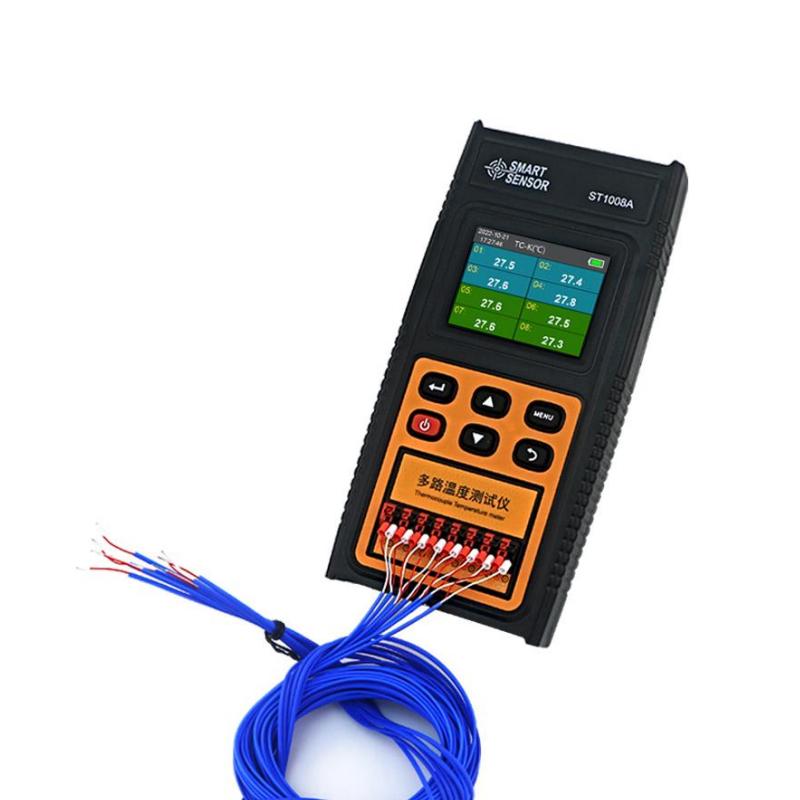

1. Connect the Thermocouple Sensor to the corresponding channel
2. Boot and set the language (Chinese/English)
3. Set the temperature unit (° C/° F)
4. Configure recording mode and interval
5. Set the upper and lower limit alarm temperature
6. Start measuring and recording data

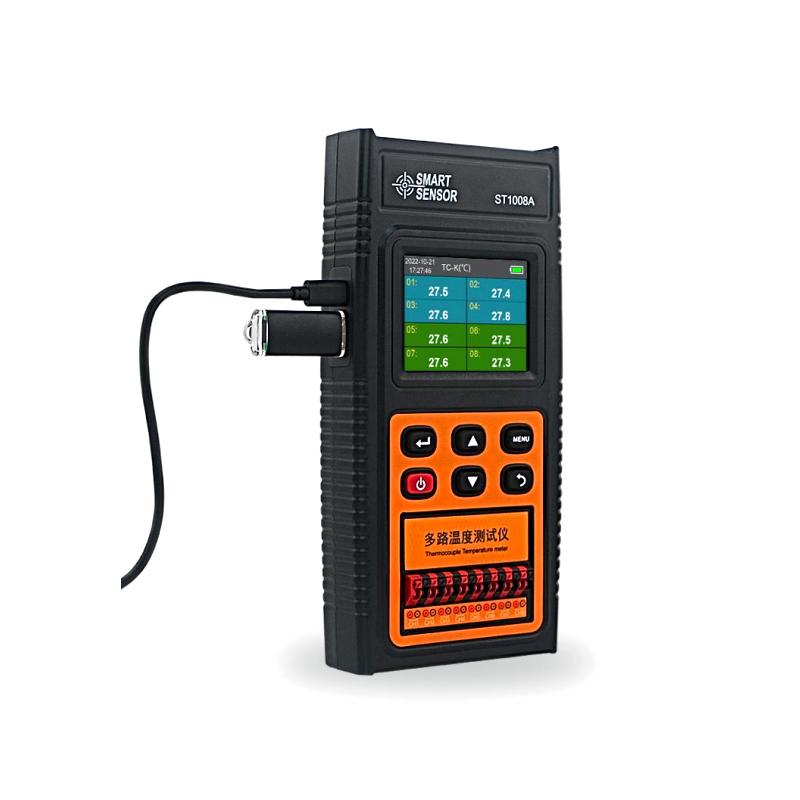

7. Data can be exported through a U disk or viewed online by a computer
Notice
• Operating temperature range is -20 ℃~ 60 ℃, avoid using in an environment beyond the range
• Operating humidity range of 1~ 90% RH, pay attention to moisture

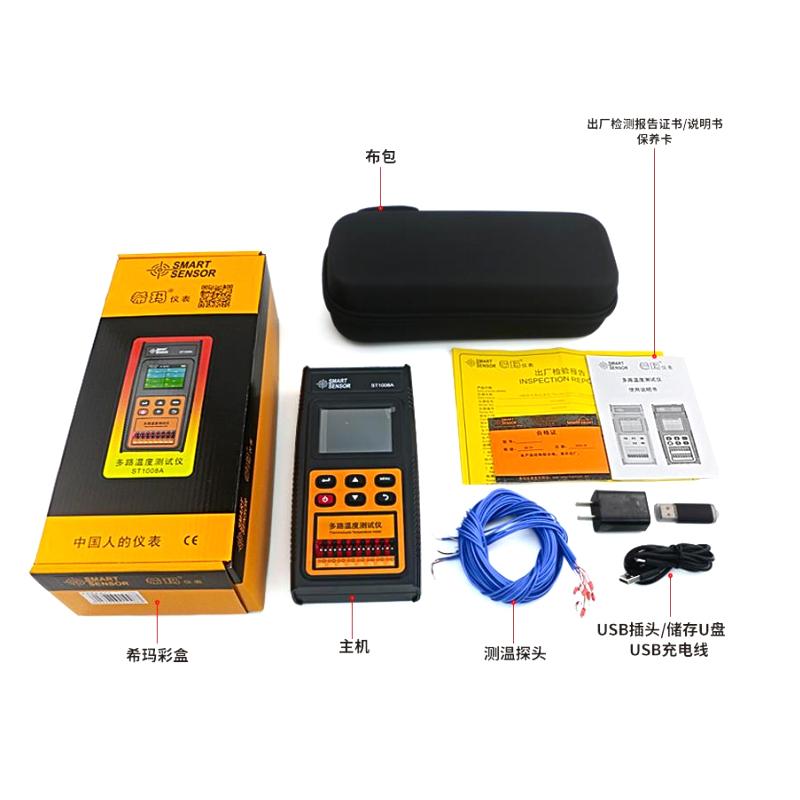

• The randomly included K-type Thermocouple cable has a temperature resistance of 300 ° C, and a high temperature cable needs to be selected from the manufacturer if it exceeds 300 ° C.
• The instrument is powered by Type-c USB interface to ensure the use of DC 5V power supply
• The built-in battery can be used for about 35 hours at full charge, pay attention to charging in time
• When storing data, the machine can store it for about 3.5 days without an external U disk (5-second recording interval)
• Adjustment is factory preset two-point calibrating (0 ℃ and 1000 ℃), users do not need to calibrate by themselves
