JINGHUAYIQI LD-YM-M Arc inks decolorizer Wear resistance testing apparatus Arc reciprocating motion

Name: JINGHUAYIQI LD-YM-M Arc inks decolorizer Wear resistance testing apparatus Arc reciprocating motion
Brand: JingHuaYiQi
SKU: NB041722
Price: 914.0 USD
Availability: InStock

$ 914.00Ex works

Adopt arc reciprocating motion mode, provide four adjustable speeds (21-106r/min) and 2lb/4lb friction load, support 0-999999 automatic shutdown tests, suitable for Abrasion Resistance evaluation.

Model

LD-YM-M

Get Quote

Category : Ink Rub Tester

Brand : JingHuaYiQi

SKU : NB041722

Service :The delivery and service By NBCLab.Com

Overview

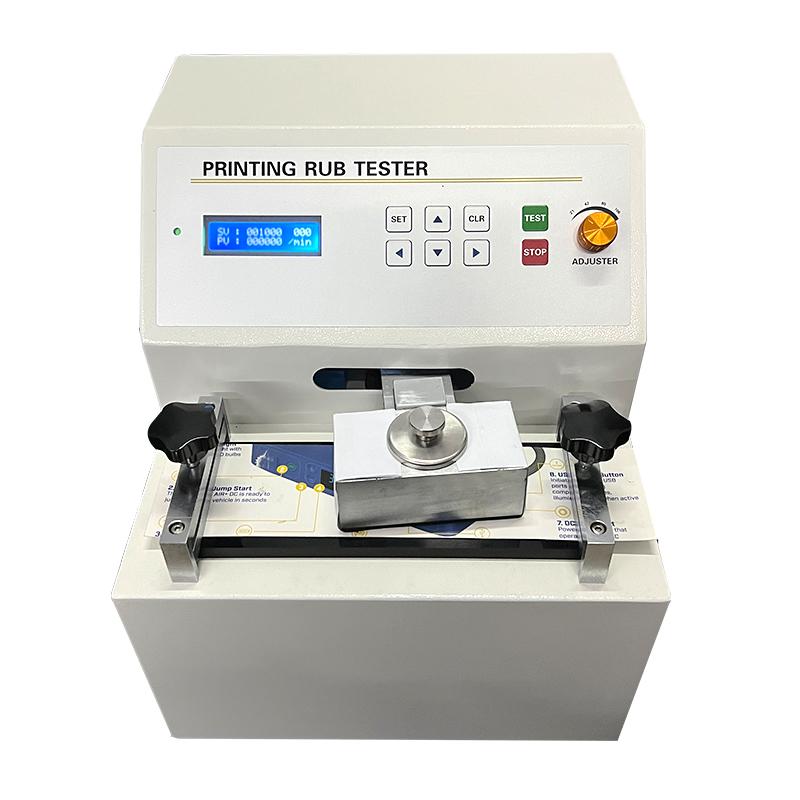

The LD-YM-M arc inks decolorizer is produced by JINGHUAYIQI and is used to test the Abrasion Resistance and decolorization of inks, prints and color boxes. The instrument adopts arc reciprocating motion trajectory, is equipped with LCD display operation interface, and supports a variety of adjustable parameters.

Features

1. 采用弧线往复运动轨迹，模拟实际摩擦条件； 2. LCD显示操作界面，直观易用； 3. 四种可调磨擦速度（21/42/85/106 r/min）； 4. 摩擦荷重可选2lb或4lb； 5. 磨擦行程55mm（摩擦体中心位移）； 6. 次数设定范围0-999999，支持自动停机； 7. 试样尺寸兼容80x220mm； 8. 机台功率40W，节能高效； 9. 电源电压AC 220V 50/60HZ 1A，适应性强。

Principle

The instrument simulates the friction process through the reciprocating motion of the arc, and the friction body rubs the sample at an adjustable speed under the set load. The control parameters are displayed through the LCD, and the number of friction times is automatically recorded and stopped to evaluate the Abrasion Resistance and decolorization of inks or printing products.

Applications

Inks test, printing test, color box test

Standards

ASTM D5264-98、TAPPI T830

Steps

1. Prepare the sample with a size of 80x220mm; 2. Set the friction speed (21/42/85/106 r/min optional); 3. Select the friction load (2lb or 4lb). 4. Set the number of friction (0-999999); 5. Start the instrument and automatically perform the arc reciprocating friction test; 6. After the test is completed, it will automatically shut down and record the results.

Notice

• Power supply voltage is AC 220V 50/60HZ to avoid voltage mismatch; The sample size should be strictly controlled within 80x220mm. • Check the friction load setting before operation to prevent overload; • Regularly clean the instrument to keep moving parts smooth. • Avoid use in humid or high temperature environments to prevent damage to electronic components.

Friction trajectory
arc reciprocating motion
mode of operation
LCD display
Specimen Size
80x220mm
Friction, stroke
55Mm (center displacement of friction body)
number of times
0-999999 automatic shutdown
Machine power
40W
Machine Size
300x330x350mm WxDxH
Machine weight
25kg
operating Voltage
AC 220V 50/60HZ 1A

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
