Overview

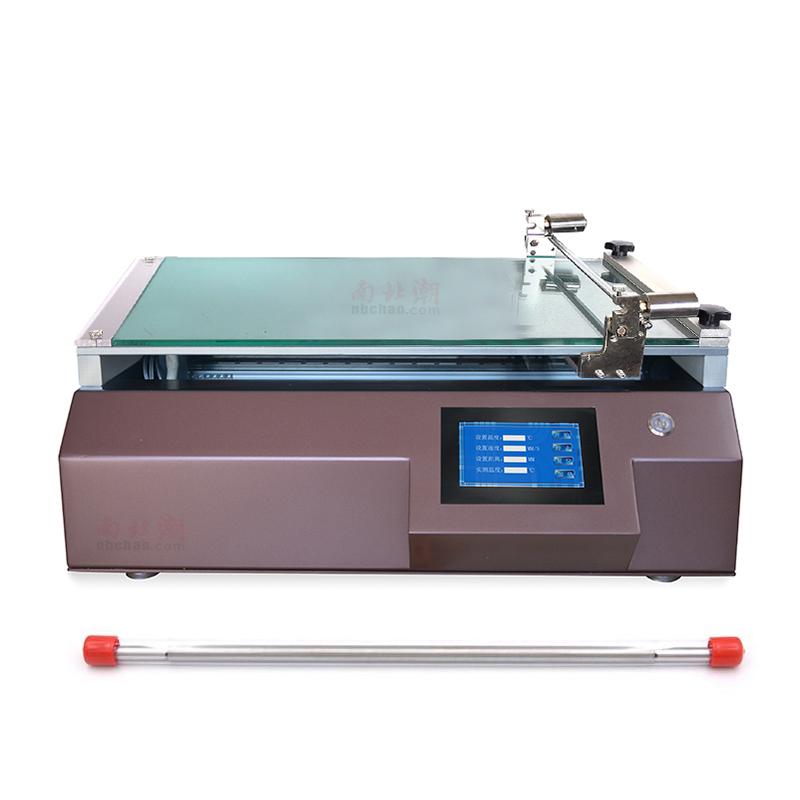

The touch laboratory TBJ-A1 wire rod Lab Film Applicator is a newly upgraded product for Spreader accurate wet-film on different substrates, which can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it has been favored by many familiar companies, R & D institutions, Universities & colleges, and comes standard with an imported wire rod with an accuracy of up to 1μm.
Features
1. Spreader accuracy up to +/- 0.001mm
2. Spreader speed range, 5~ 200mm/s (< 5mm/s can be customized)
3. Large effective Spreader area, up to 600 * 500mm (can be customized)
4. Spreader stroke can be set arbitrarily within the range of 1~ 600mm
5. Control mode with touch screen
6. Speed control is infinitely variable
7. Glass base material
8. Standard mechanical fixture
Principle
The automatic Film Applicator uses the wire rod Spreader mode to evenly Spreader wet-film on different substrates through precision wire rods, and uses a stepless speed control system to precisely control the Spreader rate and stroke to ensure the preparation of smooth and flat test samples.
Applications
Corporate R & D, Research Institutions, Universities & colleges Laboratories
Steps
1. Prepare the substrate and fix it on the mechanical fixture
2. Select the appropriate rod model to set the Spreader Film thickness
3. Set Spreader Rate and Travel Parameters on Touch Screen
4. Start the Device for Auto Spreader
5. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Select the corresponding accessories according to the substrate Film thickness
• Spreader parameters need to be adjusted according to the specific application
• Regularly clean wires and baseplates
• Customized functions need to be confirmed in advance
